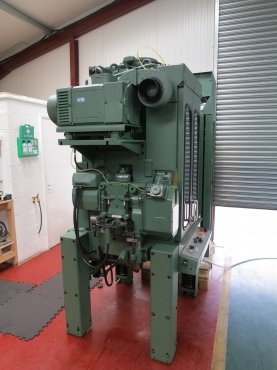

One used Bruderer BSTA 20E high speed punch press.
Year of manufacture 1985. Overhauled 2014.
Country of Origin Switzerland.
20 ton capacity.
Adjustable stroke 8 to 38 mm.
Speed range 100 to 1800 SPM max.
Tool clamping area 380 mm x 220 mm between pillars.
[Total bolster area 560 x 400 mm.]

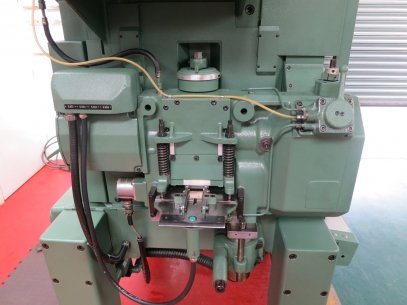

Single Roll feed BBV 190/85 fitted on the left-hand side.
Max width of strip 160 mm.
Power supply 380 Volt, 50 Hz, 3 phase.
