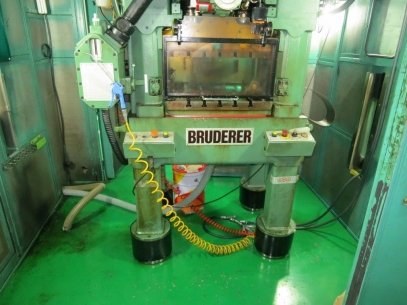

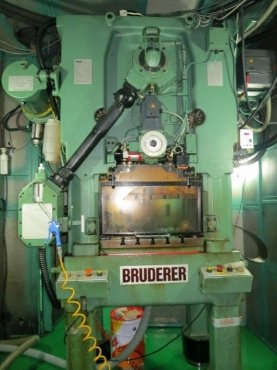

One used Bruderer BSTA 25UL high speed punch press.
Year of manufacture 2000.
Nominal capacity 25 tons (250 kN)

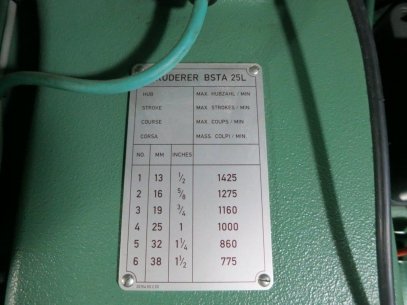

Adjustable stroke 13 - 47 mm.
Speed range 100 to 1425 strokes per minute max.
Bolster area 640 mm x 530 mm.
Fitted with roll feed BBV 190/85 on left-hand side.
Max width of strip 190 mm. Feed angle 180 °
Weight of press approx. 4900 kgs.
Front and rear safety guards
Spring dampers
Oil cooler with pre-heating system
Low operating hours

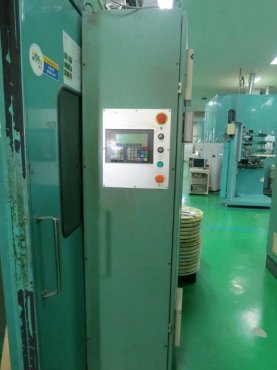

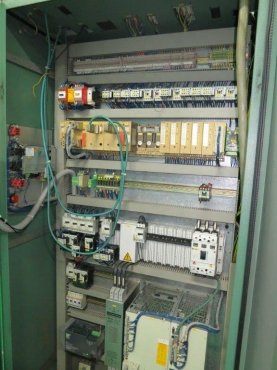

Control cabinet
Power supply 400 Volt, 50 Hz.
