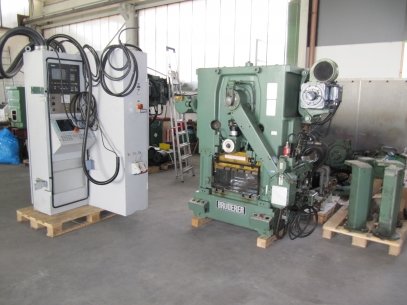

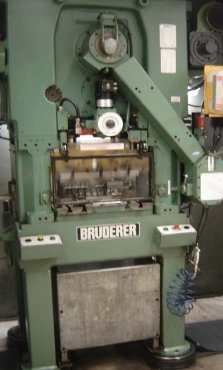

One used Bruderer BSTA 25EL high speed punch press,
Year of manufacture 1991.
Nominal capacity 25 tons (250 kN)
Adjustable stroke 13-47 mm.

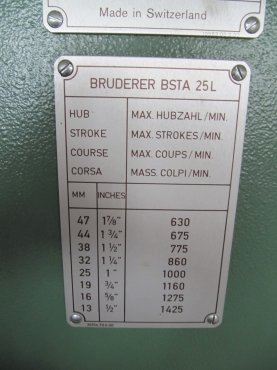

Speed range 100 to 1425 strokes per minute max.
Bolster area 640 mm x 530 mm.

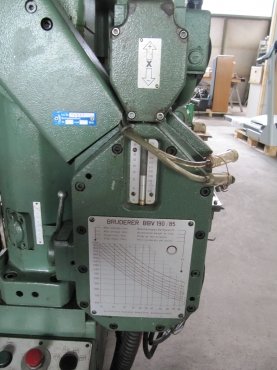

Fitted with roll feed BBV 190/85 on right-hand side.
Max width of strip 160 mm. Feed angle 180°
Weight of press approx. 5000 kgs.

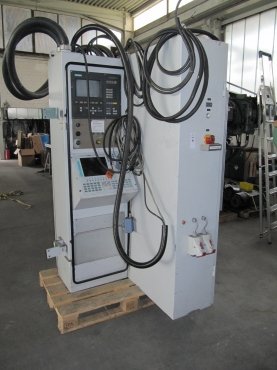

Electrical control cabinet and operators panel.
Power supply 380v - 50Hz.
Acoustic cabin included (disassembled).
