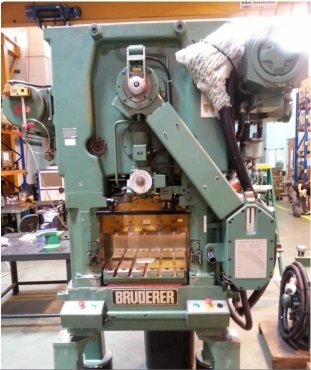

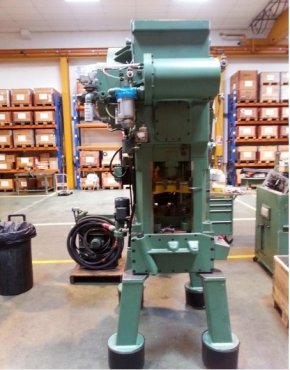

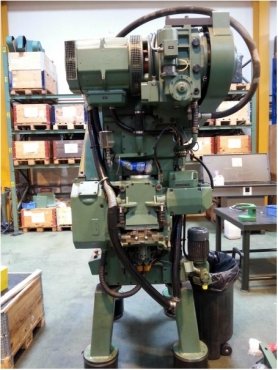

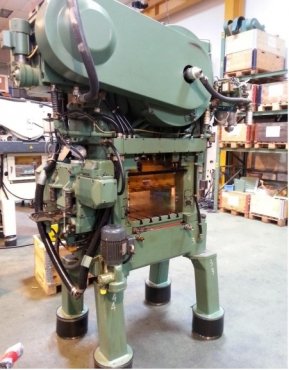

One used Bruderer BSTA 25 high speed punch press.
Year of mfg 1984. Swiss origin.
25 tons capacity.
Adjustable stroke 13 to 38 mm.
Speed range 100 to 1500 SPM max.
Bolster area 540 mm x 530 mm.
Fitted with a single roll feed BBV 202/120 on right-hand side.
Max width of strip 200 mm.
Feed pitch 120 mm, feed angle 180°.

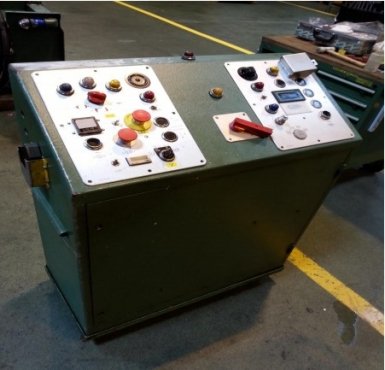

Electrical control cabinet.

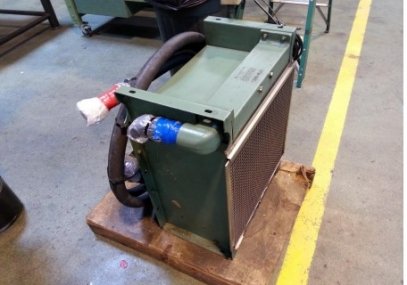

Oil cooler. Spring feet.
Machine speed range stated is approximate; production rates are dependent on load, material and component configuration.
