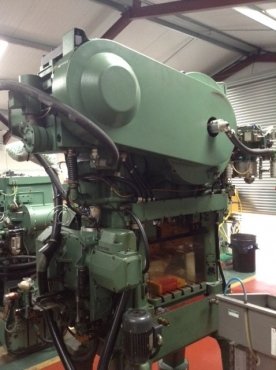

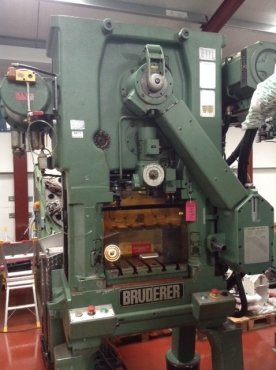

One used Bruderer BSTA 25H high speed punch press.
Year of mfg 1985. Swiss origin.
Nominal capacity 25 tons.
Adjustable stroke 13 - 38 mm.
Speed range 100 to 1500 strokes per minute max.
Bolster (tool clamping) area 530 mm x 530 mm.
Fitted with BBV 202/120 roll feed on right-hand side.
Max strip width 200 mm.
Front and rear safety guards.
Spring feet dampers. Oil cooler.
Operators control cabinet freestanding.
Power supply 380 Volt, 50 Hz.
Weight of press approx. 4500 kgs.
