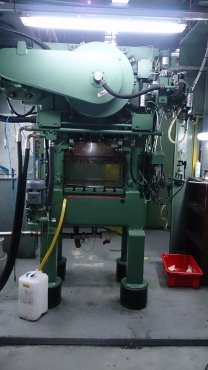

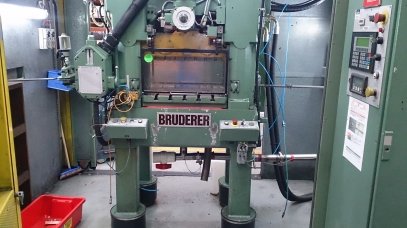

One used Bruderer BSTA 25UL high speed press.
Year of manufacture 1996 (27424 working hours). Swiss origin.
Nominal capacity 25 tons.
Adjustable stroke 13 - 38 mm.
Speed range 100 to 1450 strokes per minute max.
Bolster (table) area 640 mm x 530 mm.
Max tool loading width 650 mm left to right.
BBV 190/85 roll feed mounted on left-hand side.
Max width of strip 190 mm. Feed angle 180°
Max feed length/pitch 85 mm.
Front and rear safety guards.
Spring feet dampers. Oil cooler.
Control cabinet with integrated operators panel (operators language English).
Power supply 400 Volt, 50 Hz.
Weight of press approx. 4900 kgs.
