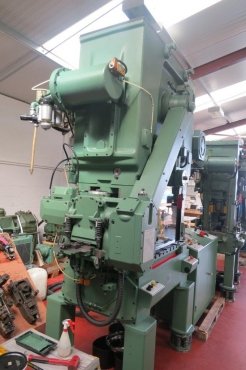

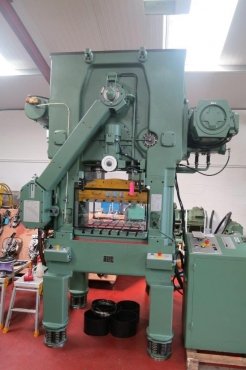

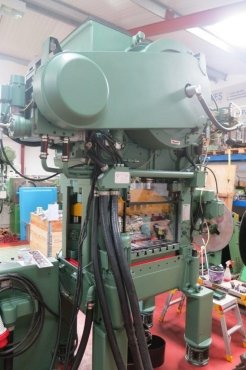

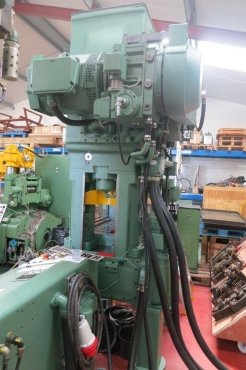

One used Bruderer BSTA 50H high speed punch press.
Original year of mfg 1983 – partially refurbished 2015/16.
50 tons nominal capacity.

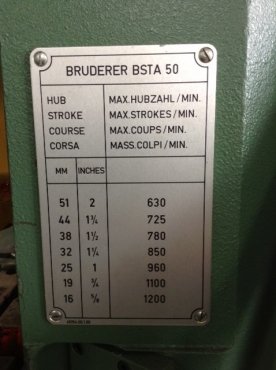

Adjustable stroke 16 - 51 mm.
Speed range 100 to 1200 SPM max.
Bolster area 760 mm x 650 mm.
Fitted with roll feed BBV 202/120 on left-hand side.
Max width of strip 200 mm.
Feed length adjustable 0 – 120 mm max.
Feed angle 180°

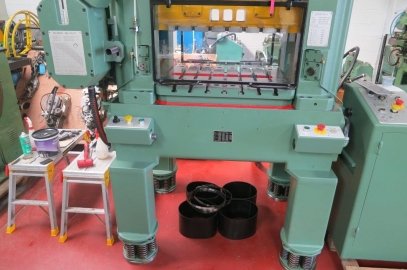

Oil cooler. Spring feet dampers.
Front and rear safety guards fitted.

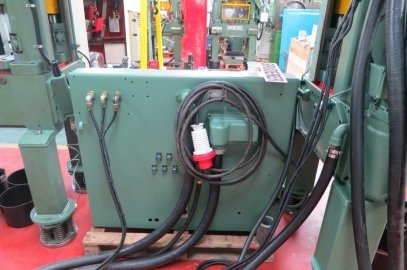

Power supply 400 Volt, 50 Hz.
Weight of machine approx 8000 kgs.
Specifications:
Machine available for immediate delivery. Partial refurbishment completed.
