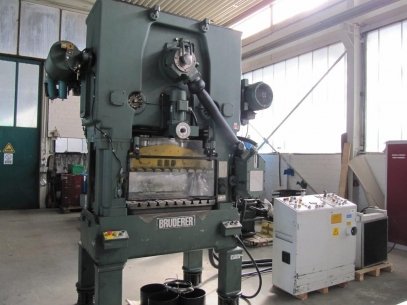

One used Bruderer BSTA50 HL high speed punch press.
Year of manufacture 1993.
50 tons nominal capacity.
Adjustable stroke 16 - 51 mm.
Ram adjustment 64 mm max.
Speed range 100 to 1120 strokes per minute max.
Bolster (table) area 940 mm x 650 mm.
Max tool loading width 950 mm.
Fitted with roll feed BBV 202/120 on right-hand side.
Max width of strip 200 mm. Feed angle 180°
Max feed length 120 mm.
Oil cooler. Spring feet dampers.
Front and rear safety guards.
Weight of machine approx 8500 kgs.
