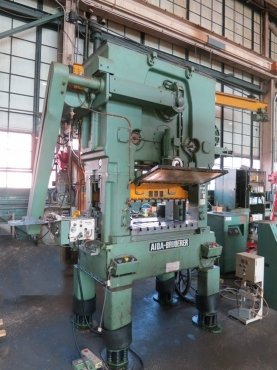

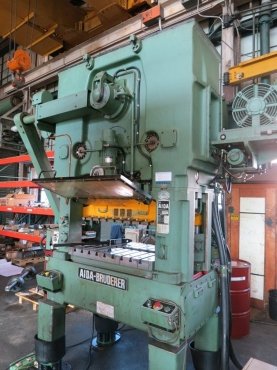

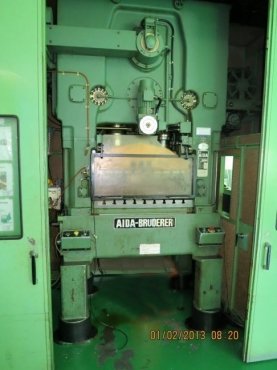

One used Bruderer model Aida-BSTA 50IL
(long bed) high speed precision stamping press.
Year of construction 1995.

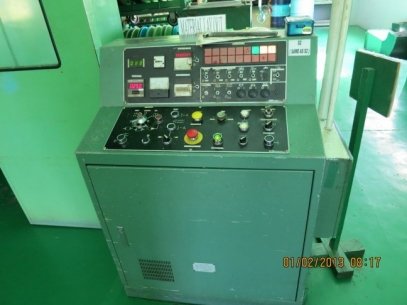

Electric Drive motor control (non hydrostatic).

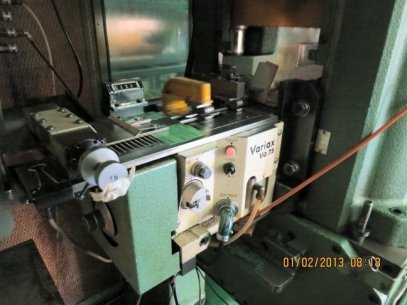

Gripper Feed type Sankyo Variax VG75 mounted on LH side.
Adjustable stroke 16–51 mm (7 steps 16-19-25-32-38-44-51)
Capacity 50 metric tons.
Variable speed 100–700 Strokes per minute maximum.

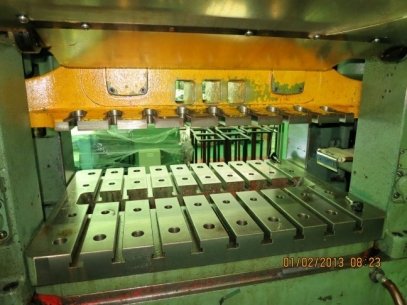

Bolster size: 940 x 650 mm Tee slotted.
Ram area: 810 x 420 mm.
Motorised Ram adjustment: 0-64 mm.
Tool width clearance: 950 mm L–R.
Strip inlet height: 60–140 mm .
Front & Rear interlocked safety guards.
4 x Spring dampers.
Dimensions:
L- R: 2390 mm, F-B: 1270 mm, Height: 3090 mm.
Weight: 8000 kgs.
Equipped with water cooler/chiller.
