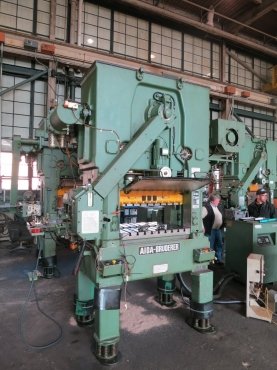

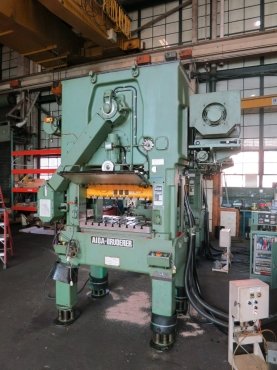

One used Bruderer model Aida-BSTA 50VFL
(long bed) high speed precision stamping press.
Year of construction 1991.
Electric drive motor control (non hydrostatic).
Capacity 50 metric tons.

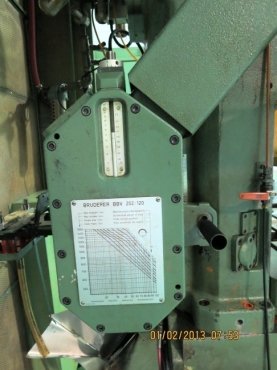

Roll Feed type BBV 202/120 on left-hand side.
FIXED stroke 25 mm.
Variable speed 100–750 Strokes per minute maximum.

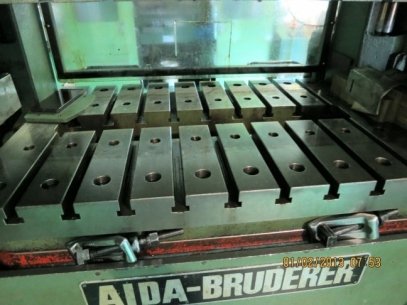

Bolster size: 940 x 650 mm Tee slotted.
Ram area: 810 x 420 mm.
Motorised Ram adjustment: 0-64 mm.
Tool width clearance: 950 mm L–R.
Strip inlet height: 60–140 mm .
Front & Rear interlocked safety guards.
4x Spring dampers.
Dimensions:
L- R: 2390 mm, F-B: 1270 mm, Height: 3090 mm.
Weight: 8000 kgs approx.
Equipped with water cooler/chiller.
