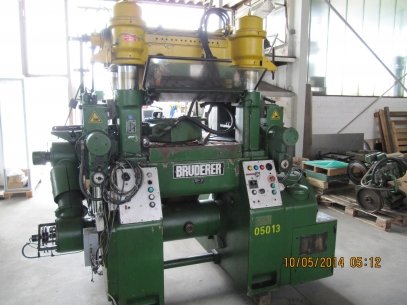

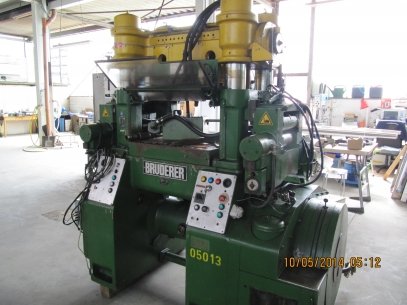

One used Bruderer BSTA 60HL high speed punch press,
Year of manufacture 1977. Swiss Origon.
60 tons capacity, underdrive type.
Adjustable stroke 20 to 76 mm.
Speed range 100 to 750 strokes per minute max.
Bolster area 770 mm x 620 mm
Fitted with double roll feeds BBV 300/200, feeding direction left to right.
Max width of strip 300 mm.
Electric supply 380 volts, 50 cycles.
Weight of press approx. 8200 kgs.
