One used Bruderer BSTA 800-145B high speed press,
Year of mfg 2007. Swiss Origin.
Low number of working hours, approx 9500 h.
Nominal capacity: 80 tons (800 kN)
Adjustable stroke: 19 to 82 mm. Long stroke option.
Semi-automatic stroke change.
Ram adjustment: 76 mm
Operating speed: 100-750 strokes per minute.
Bolster (bed) size: 1430 x 910 mm
Maximum tool width: 1450 mm
Ram size: 1270 x 510 mm
Standard tool daylight (shut height) increased by +50 mm.

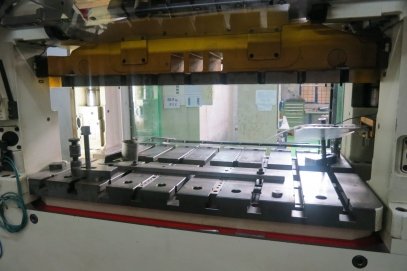

Bolster plate in two pieces (split) with 100 mm drop hole.
Bolster plate thickness 130 mm. T-slotted 150 mm distance.
Fitted with BBV205/120 roll feed on left-hand side.
Max strip width 202 mm. Feed angle 90°.
Spring feet dampers. Oil cooler.
Front and rear safety guards.
Overall dimensions:
Left to right: 3220 mm
Front to back: 1715 mm
Height: 3550 mm
Weight: 18600 kgs approx.
Electrical supply 380/400 Volt, 50 Hz.
Main motor power 37 kW.

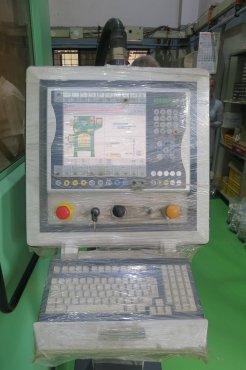

Bruderer B-control, multilingual, but currently set to English.
The machine controls include Bruderer tool protection and tonnage monitoring systems.

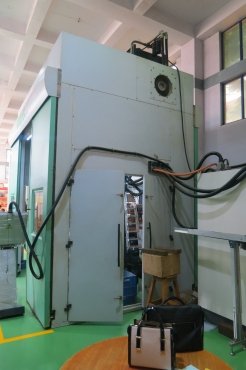

Acoustic cabin included in sale.
