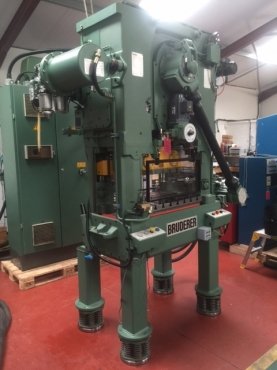

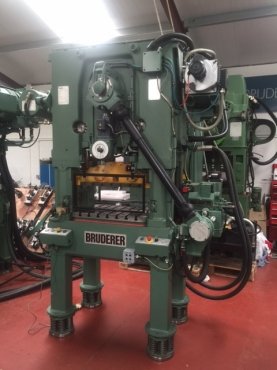

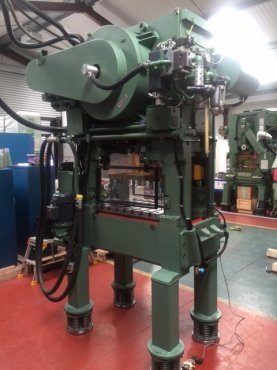

One used Bruderer BSTA 25USL high speed punch press.
Year of manufacture 2002. 24096 operating hours recorded.
Nominal capacity 25 tons.
Adjustable stroke 13 - 38 mm.
Speed range 100 to 1300 strokes per minute max.
Bolster area 730 mm x 530 mm.
Max tool loading width 750 mm L-R.
Gripper feed BZV60 mounted on right-hand side**
Max width of strip 70 mm.
Strip inlet height adj. 60 to 130 mm.
Front and rear safety guards.
Spring feet dampers.

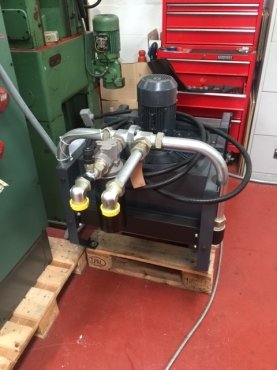

Oil /water heat exchanger.
Power supply 415 Volt, 50 Hz.
Weight of press approx. 5300 kgs.

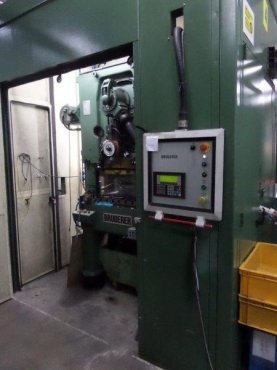

Complete with TAMER acoustic cabin/enclosure; disassembled.
Operator console mounted on cabin or separate stand (option).
