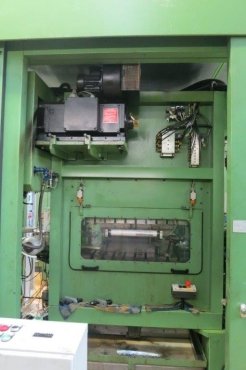

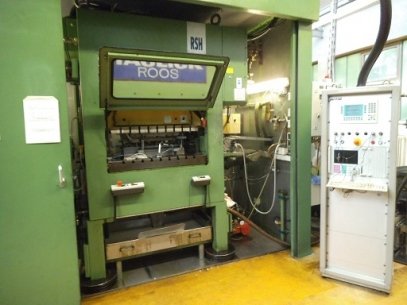

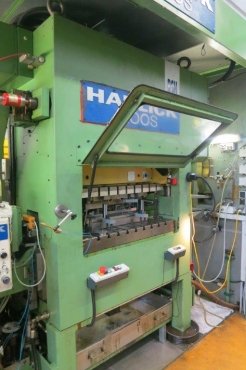

One used Haulick + Roos RSH400-1000 high speed press.
Year of mfg 1997. German origin.
Nominal capacity (tonnage) 400 kN, 40 tons
Stroke frequency, min/max 30 to 1000 SPM
Ram stroke 3, 10, 16, 22, 28, 33, 38, 42, 45, 47, 49, 50 mm
Ram position adjustment range 50 mm
Tool daylight, max ram stroke down, max ram adj. up 240 mm
Tool dimensions, max length x width 1000 x 610 mm
Clamping area table (bolster) length 1000 mm, width 560 to 620 mm
Clamping area ram 1000 x 410 mm
Drop hole in bolster length 910 mm, width 50 to 110 mm
Fitted with Sankyo CF76 feeder on left-hand side.
Width of strip, min/max 0 – 120 mm
Thickness of strip, min/max 0 – 3 mm
Strip cross section, max 360 mm²
Strip speed, max 70 m/min.
Feed length, min/max 0 – 76.2 mm
Feed angle 165°
Feed accuracy ± 0.025 mm
Strip inlet height adjustment, mechanically manual.
Machine weight total approx 6800 kgs.
Machine height overall, approx 2800 mm.

Supplied complete with acoustic cabin, disassembled.

-

7000 kg
