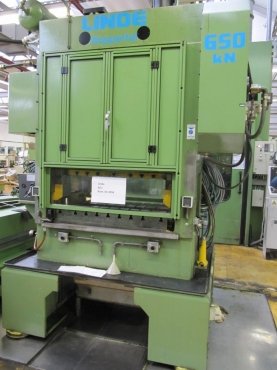

One used LINDE model DSW65 punching press.
Year of mfg 1997. German origin.
Nominal capacity 65 tons (650 kN)

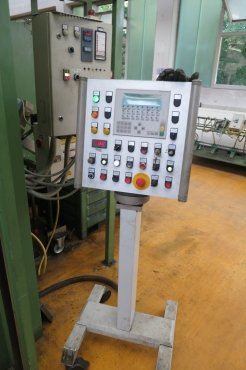

Operators control console freestanding.
Power supply 380/400 Volt, 50 Hz.

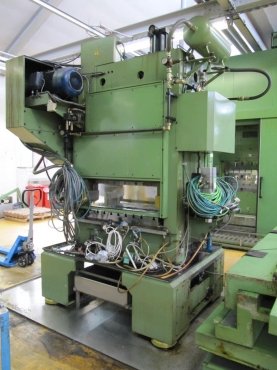

Double-column press.
1115mm Working area ~ distance between columns.
365 / 415mm Min/max distance between bolster and ram at max stroke.
160mm Distance between bolster and ram guide.

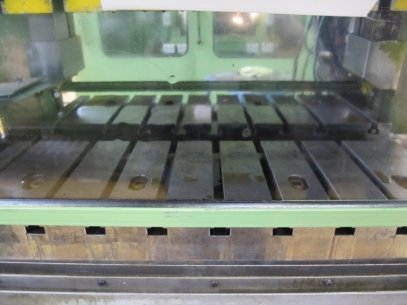

1000 x 780mm bolster clamping area.
100mm Bolster plate thickness.
80 – 130 x 800mm Bolster plate drop hole.
50mm Ram stroke.
60 to 400 SPM speed range.
50mm Ram adjustment.

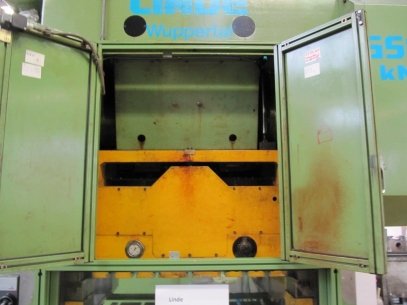

900 x 520mm Ram clamping area.
Electro-pneumatics safety clutch with press safety valve.

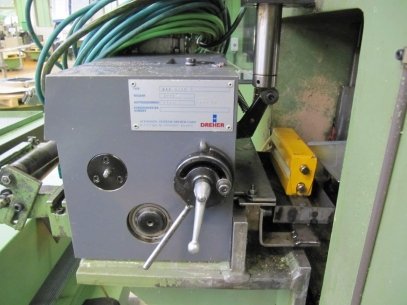

Fitted with Dreher servo feed (electronic roll feed) on left-hand side.
