28 ton Perkins, Cooper Weymouth roll feed, auto lube, varie speed drive up to 375 SPM, air counter balance, stroke 1 1/2"
Specifications:

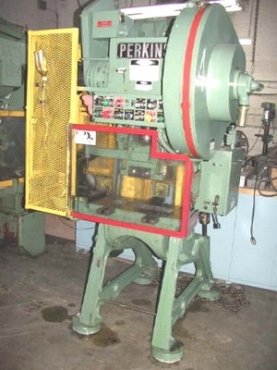

PERKINS 28 Ton High Speed Air Clutch Punch Press
SPECIFICATIONS:
Capacity 28 tons
Stroke 1-1/2"
Adjustment of slide 2-1/2"
Shut height, bolster plate to slide
stroke down adjustment up 8-3/4"
Speed (probably higher) up to 375 spm
Throat 7"
Die bed size 12" x 23-1/2"
Bolster plate thickness 2"
Motor 3 HP
Electrics 208/3/60
Weight, approx. 2,950 lbs
EQUIPPED WITH:
Sterling "Speed-trol" varaible speed drive, Air clutch, Parts counter, Cooper Weymouth roll feed, Bijur automatic lubrication system, Air counter balance, Full panel control (inch, continuous, jog, etc.)
