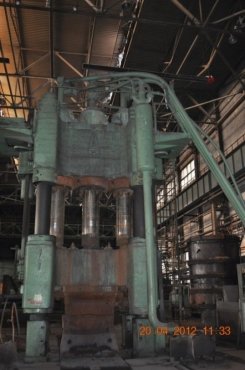

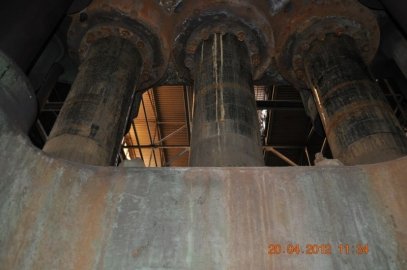

Hydraulic open die forging press PA1343 made in 1975, Ukraine. Press comes together with forging manipulator MK 30-66.
Specifications:
Nominal forging force: 2000 ton
Slide stroke: 1600 mm
Distance between table and slide in upper position: 3150 mm

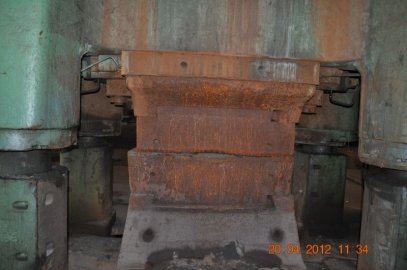

Pull out table:
-Width: 1600 mm
-Length: 4000 mm
Table travel: 1600 mm on each side
Table speed: 50-300 mm/sec
Pump productivity: 2250 L/min
Height above floor: 8900 mm

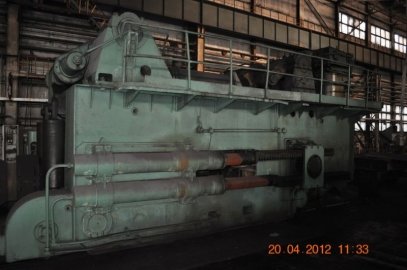

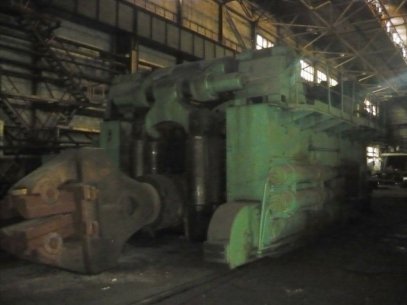

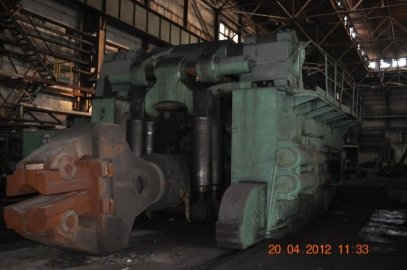

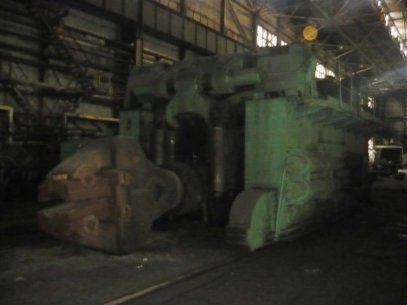

FORGING MANIPULATOR
Model: MK 30-66
Manufacturer: Russian

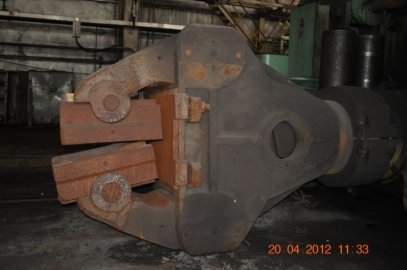

Tongs clamping moment: 60 MT
Nominal carrying capacity: 30 MT
Max peel rotating moment: 18 MT
Max tongs opening: 1000 mm
Horizontal positioning of tongs
Max center above top of rail: 1200 mm
Vertical lift of tongs: 900 mm
Angle of lateral turn of tong: 3 degrees 30 min
Angle of inclination of tong: 7 degrees 10 min
Rotation speed of tongs: 6,1 rev/min
Speed of manipulator: 0-35 m/min
Dimensions: 12100x7000x4740 mm
Weight: 172300 kg
