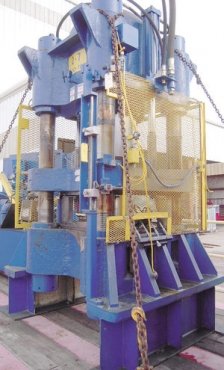

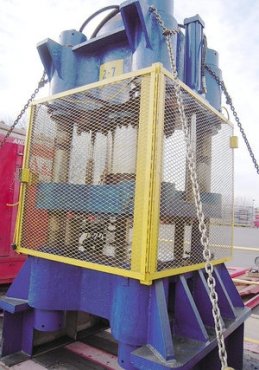

ENERPAC 400 TON HYDRAULIC PRESS

Specs

Serial #: 1941-98

Overall Dimensions: 78"x56"x130"

400-TON DOWN ACTING PRESS WITH SEPARATE PULL BACK CYLINDERS

MAIN RAM 20" DIAMATER 17" STROKE

PULL (2 PIECES) 4" BORE

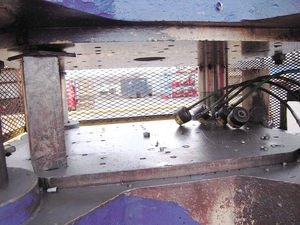

PLATTEN AREA 36" RIGHT TO LEFT 27" FRONT TO BACK

4 POST CONSTRUCTION

DAYLIGHT OPEN 26 ½", CLOSED 9 ½" 17" STROKE

ADJUSTABLE TOP & BOTTOM LIMITS

SAFETY SCREENS, BACK AND SIDES

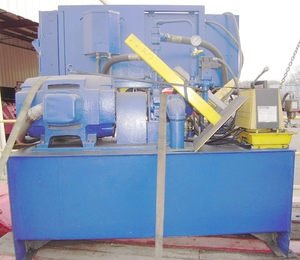

PRIMARY HYDRAULIC SYSTEM

200 GALLON RESERVOIR

100 H.P. ELECTRIC MOTOR, 460V, 3 PHASE

VICKERS DOUBLE PUMP WITH HIGH LOW CONTROLS AND DIRECTIONAL VALVE

PRESS SPEEDS; CLOSING 43" PER MIN, OPENING 100"/MIN

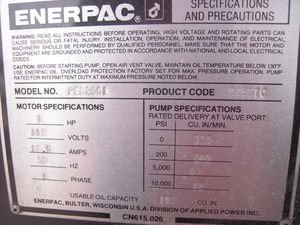

SECONDARY HYDRAULIC SYSTEM FOR CLAMPING CYLINDERS, ENERPAC #PED-2001 RATED UP TO 10,000 PSI, 1 H.P., SINGLE PHASE

ELECTRICAL CONTROLS

ALLEN BRADLEY CONTROLLER AND NEMA TYPE MOTOR STARTERS

TWO HAND PUSH BUTTON CONTROL


Preliminary specifications subject to verification.
Additional information will be posted as it becomes available.

Ticket# 20455


PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION

Subject To Prior Sale
