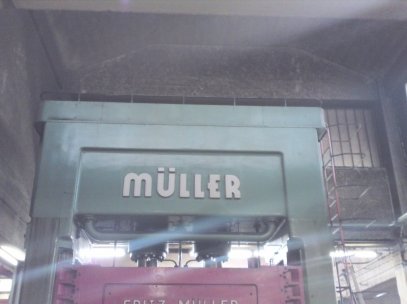

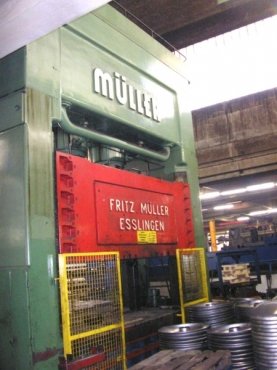

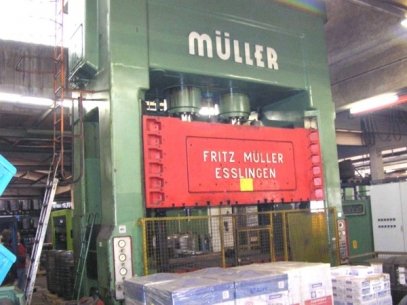

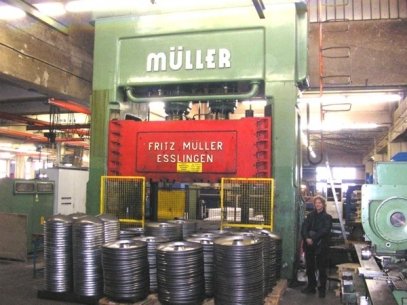

Double Action Double Column Hydraulic Press Fritz Mueller ZE 630-32
high-speed version
pressures
pressure of ram: 6170 kN
blankholder-pressure: 2500 kN
ejection-pressure of die cushion: 780 kN
strokes:
stroke of ram: 900 mm
stroke of die cushion: 550 mm
shut height slide to bolster: 1920 mm
table size: 3200 x 2000 mm
daylight opening at side: 3300 mm
height of press above floor: 6600 mm
power requirement: 73 kW
total weight of machine: 150 tons
heaviest part: 50 tons
General information:
ram and die-cushion can be operated through seperately arranged hydraulic-pistons. The pressure of die-cuhsion is steplessly adjustable, independent of ram-pressure.
It is possible to drive the whole stroke with full pressure. pressing force can effect on workpiece constantly at any height. die-cushion can be used as blankholder or ejector.
Specifications:
pressures
pressure of ram: 6170 kN
blankholder-pressure: 2500 kN
ejection-pressure of die cushion: 780 kN
strokes:
stroke of ram: 900 mm
stroke of die cushion: 550 mm
shut height slide to bolster: 1920 mm
table size: 3200 x 2000 mm
daylight opening at side: 3300 mm
height of press above floor: 6600 mm
power requirement: 73 kW
total weight of machine: 150 tons
heaviest part: 50 tons
