Reconditioned, Excellent, 1997

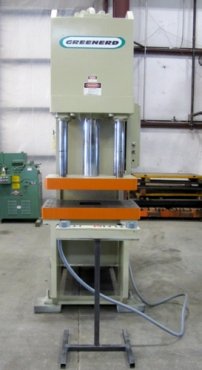

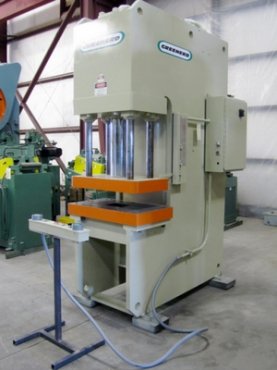

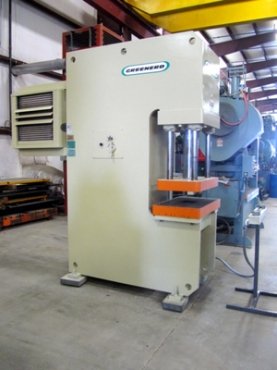

100 TON GREENERD HYDRAULIC PRESS - RECONDITIONED
MODEL: No. HCA-100-42R10
CAPACITY: 100 TONS @ 1475 PSI
STROKE: 18"
DAYLIGHT: 24" (OVER BOLSTER)
BED AREA: 34" RL X 20" FB
RAM AREA: 32" RL X 18" FB

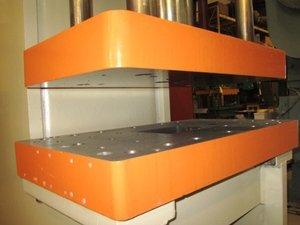

BOLSTER SIZE: 4" X 34" RL X 20" FB
RAM SPEEDS:
FAST APPROACH: 431 IPM
PRESSING 41 IPM
FAST RETURN 428 IPM
DISTANCE FLOOR TO BED: 34"

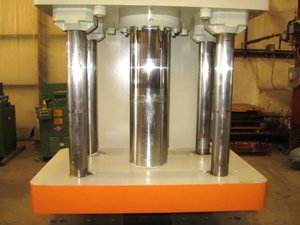

MAIN PISTON SIZE: 6" OD
(4) AUXILLARY CYLINDERS: 2-1/2" OD
ELECTRICS: 30 HP, 1760 RPM, 460/3/60V MOTOR &

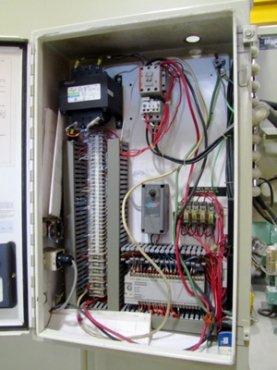

ALLEN BRADLEY MICRO LOGIC PLC CONTROL
APPROX DIMENSIONS: 9'6" H X 4' W X 8'5" D
APPROX WEIGHT: 16,000 LBS.
EQUIPPED WITH: STEEL FRAME CONSTRUCTION
FLOOR STANDING BASE
SOLID BACK GAP FRAME DESIGN

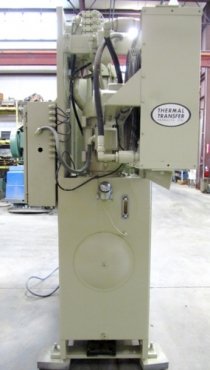

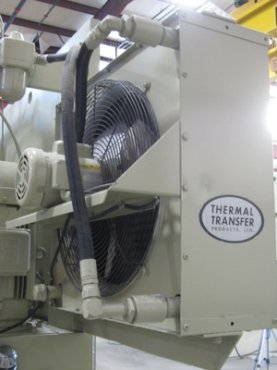

THERMAL TRANSFER AIR/OIL COOLER
FOOT PADS
VICKERS PUMP No.4520V-60E8-1CB22R
YEAR: 1997
CONDITION: EXCELLENT/RECONDITIONED
LOCATION: OUR COLUMBIA,TN WAREHOUSE

9'6"H x 4'W x 8'5"D

16,000 lbs
