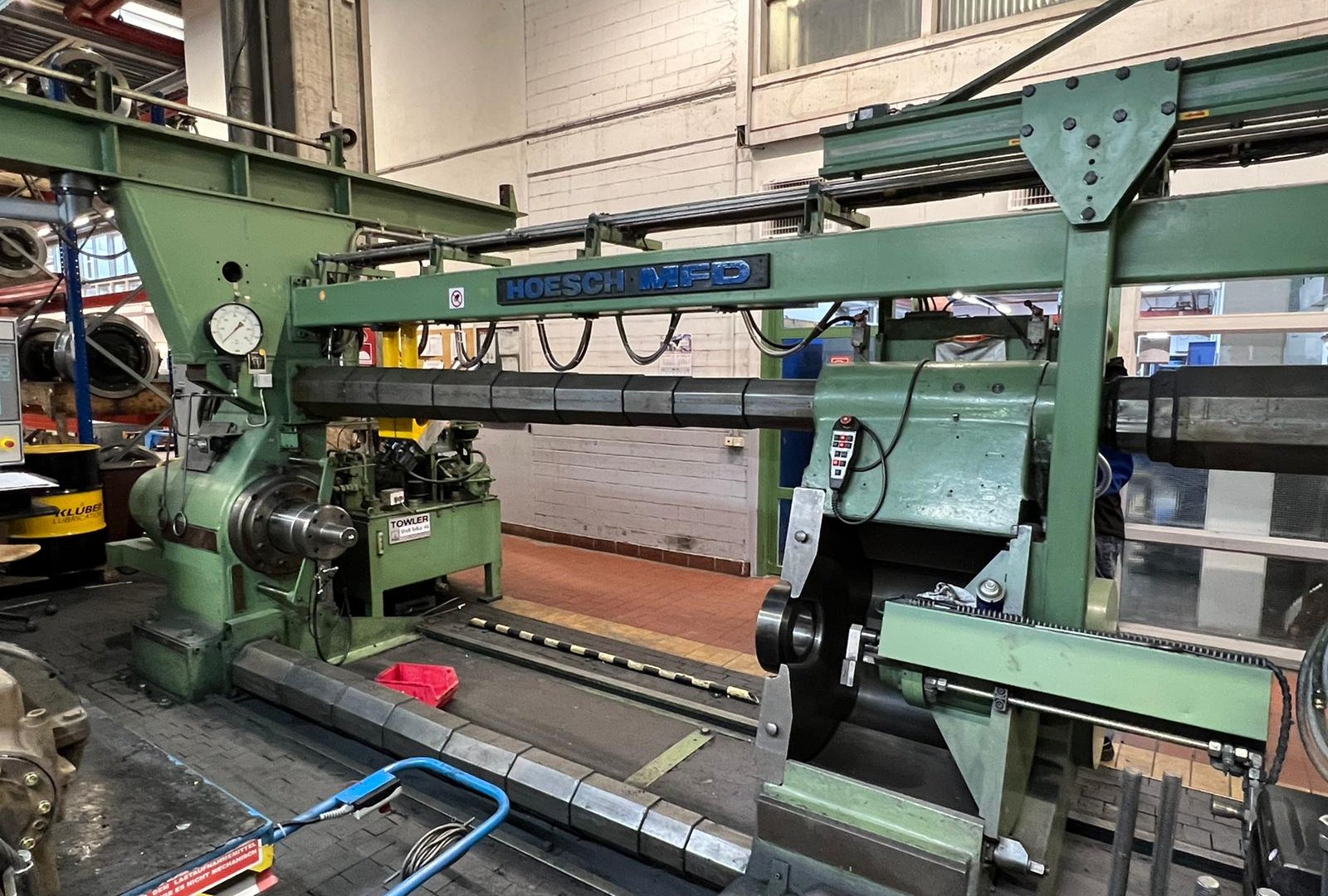

Rebuild in 2010 with SIEMENS TOUCH
Rebuild cost EUR 200.000
Distance measuring device with double taster

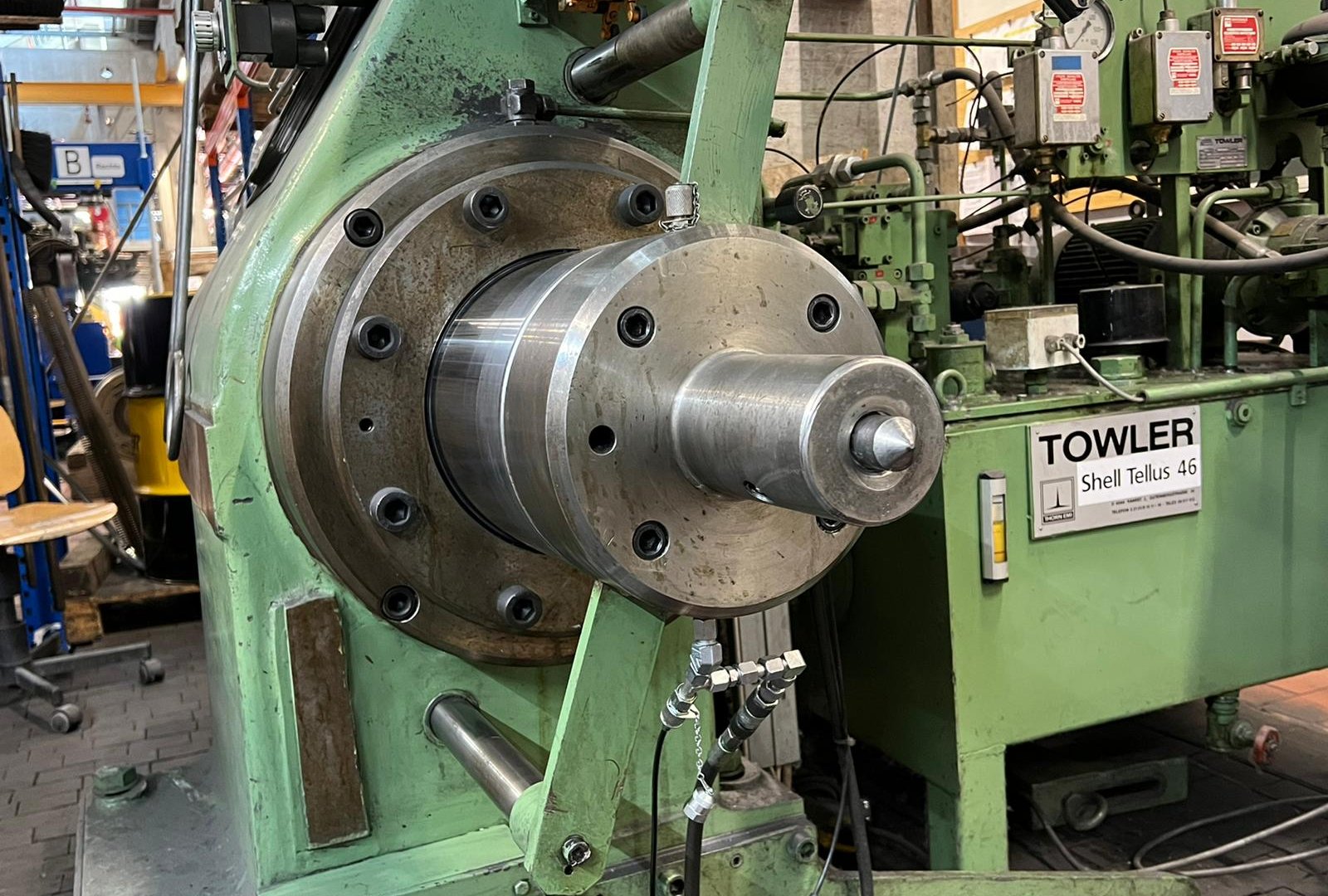

Big package with pressing tools in several diameters


Centre height: 550mm
Max. wheel tread Ø: 1100mm
Max. wheelset length:2500mm
Max. pressing force:250T
Max. cylinder stroke:500mm
Cylinder Ø: 300
Working speed: 10 - 80mm/min.
Pinole feed: 1300mm/min.
Return speed: 1300mm/min.
Length: 6100mm
Width: 5730mm
Height: 3750mm
Weight: 15900kg
