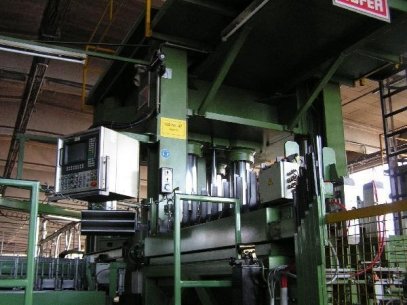

Hydraulic Press HDP ground 700 data to the press Press capacity 700 tons Ejector, 100 tons, coming from above Usable pressing area 1700x1700m 4 pressing cylinder 280mm 2 fast-stroke 100/50mm stroke of cylinder 850mm Maximum operating pressure 280 bar produced cylinders made of seamless steel pipe piston rod of tempered steel, surface and chromed 4 pieces ejection, on the upper part Hydraulic Paralellausgleich mounted to operate the ejector 4 pcs hydraulic high retaining cylinder in the base mounted central lubrication means of a bolt which is pneumatically operated, takes place in the top position of the press table, a locking hydraulic hydraulics on the press oil cooler mounted to the cooling the hydraulic oil at too high a temperature by thermostat automatically turned on and off, with closed cooling water circuit. Oelbehälter with Oelauffangwanne Antreibsleistung the hydraulic 37 kW oil filter with electric contamination indicator Electric level switches for monitoring the oil level proportional pressure valve for adjusting the hydraulic pressure setting of the hydraulic pressure is done automatically by the control which may be in manual mode by entering the hydraulic pressure can be changed at the control servo valve for setting the speed The setting of rates is from the control system can be changed by the user as needed to fill valves
