Description:
HPM 7000 Ton Rubber Pad Press, Closed Die Press
Specifications:
A&A MACHINERY SALES, INC.
MACHINERY SALES SPECIALIST
MACHINE TOOLS * PRINTING SHOPS * PLASTICS INDUSTRY * TEXTILE INDUSTRY
Item

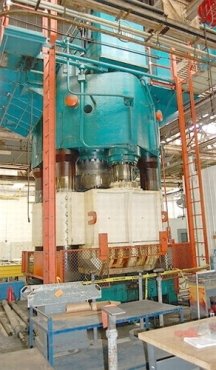

HPM 7000 Ton Rubber Pad Press, Hydraulic, Closed Die Press,
S/N
51-244
Specs
Year: 1951
Condition: Very Good
Fastraverse Platen Press, Vertical Down Acting-Open Rod Type with Closed Top Pedestal Type Bed. Platen Guided on 4 Columns with 360 Degree Split Bronze Bearings.
Ram Diameters: Main ram: 74”
(2) Pullback Rams: 21” x 18”
Pressing Surfaces: Platen at Sides 54” x 72”
Bed at Sides: 54” x 115”
Platen & Bed at Ends: 72” x 144”
Clearance between rods: 54” x 72”
Daylight Space, Between Surfaces: 44”
Max Travel: 28”
Ram Speeds, Inches/ Min
Closing: 238
Pressing: 8.6
Opening: 238
Accumulated Cycle Time: (building pressure, reversing etc. at max pressure & travel) 10.7 seconds/ cycle
No drawings available
Previously used to manufacture airplane parts.
Pressing Members: Platen- actuated by one single-acting main ram and two double acting booster pullback rams. Pressure is applied to area of main ram and forward area of both auxiliary ram simultaneously.
Subject To Prior Sale
Price
$465,750 Additional Charge For International Shipment
Sale must be completed within 7 days of auction ending otherwise sale is considered delinquent. If your item will remain in our warehouse for 30 days passed invoice date, a $1/ sq foot warehousing fee will be applied.
After the auction ends, please provide the following information
Complete company information: address, contact person, phone number, fax number, destination address if different then company address already provided.
Payment
Payable to A&A Machinery Sales
Wire Transfer, Cashier’s Check/ Money Order accepted for immediate release. Personal/ Business Checks need approximately 2 weeks for confirmation that the check has cleared our bank before item is released.
NO CREDIT CARDS ACCEPTED
Additional charges
Trucking, palletizing or loading / securing into overseas container
CONVENIENTLY SERVING PENNSYLVANIA * NEW JERSEY * DELAWARE
201 DEAN SIEVERS PLACE * MORRISVILLE, PA. 19067
