Manufacturer: HPM
Model: SL
S/N: 51-244
Year: 1951
Condition: Very Good

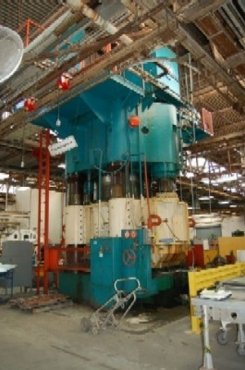

7000 TON
Vertical, Downward-Acting, Open rod Type with closed Top Pedestal Type Bed. Platen Guided on Four Column with 360 degree Split Bronze Bearing.
Platen -actuated by one single acting main ram and two double acting booster pullback rams. Pressure is applied to area of main ram and forward area of both auxiliary rams simutaneously.
Specifications:
Capacity 7000 TON
Main Ram 74"
Pullback Rams 21" x 18"
Pressing Surface Platen at Sides(L-R x F-B) 54" x 72"
Pressing Surface Bed at sides (L-R x F-B) 54" x 115"
Pressing Surface Platen & Bed at ends (L-RxF-B) 72" x 144"
Pressing Surface Clearance between rods (L-RxF-B) 54" x 72"
Daylight 44"
Travel Max 28"
Ram Speeds Closing 238 IPM
Ram Speed Pressing 8.6 IPM
Motor 200 HP 460/3
Opening 238 IPM
Height Above Floor25'
Depth below floor 116"
Floor Space 146" x 126"
Weight 630,000 LB
Equipped With:
2 Hydraulic Pumps R200/ 2740 PSI
Hydraulic Tank 156" x 43" W x 72" High mounted on top
