Max. Punching Cap 400ton, windows 24"Wx16"H, PLC Controls, CRT Screen and Palm Buttons, #1340

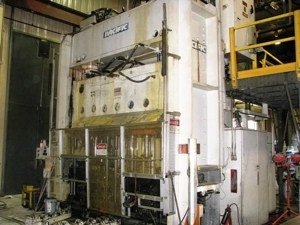

#1340Pacific 400/500 Ton Hydraulic Straight Side Press

S/n:A1094
Mfg:1995
Model:400 OBL Series 12

SPECIFICATIONS:
Maximum Press Capacity 500 Ton
Maximum Punching Capacity400 Ton
Bolster (Bed) Size144” x 52”
Windows 24”W x 16”H
Open Height72”
Stroke27”
Cycle Time11.3 Sec
Press Speeds (3) Currently Set At170 IPM/190 IPM/ 190 IPM
Return Speed900 IPM

EQUIPPED WITH:
Clear PLC Programmable Controls w/Cabinet
CRT Screen Installed New 2004
Palm Buttons
Upgraded Allen Bradley Electrics
Hydraulic Transfer Arm Available
Rear Mezzanine w/Stairs

FEED EQUIPMENT:
Perfecto 20” Wide Servo Roll Feed
Perfecto 6000# Dbl End Pedestal Dereeler, Mod.# RD6-20B, 20” Width, 60” Coil OD, 16”-20” ID, s/n RO-93044 **NOTE** Air Motors Need to be replaced

Perfecto Mod.# 22-20-9 Straightener, 20” Width w/Pneumatic Loop Arm, s/n 93047 / 53-93045

Machine Condition:Excellent
Machine Location:Charlotte, NC
