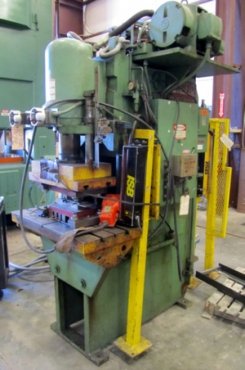

50 TON PACIFIC PRESSFORMER HYDRAULIC PRESS - PREOWNED
MODEL: NO. 50PF GAP FRAME
CAPACITY: 50 TONS @ 1275 PSI
STROKE: 12"
DAYLIGHT: 20"
BED AREA: 36" RL X 18" FB (T-SLOTTED)
RAM AREA: 20" RL X 12" FB
RAM BOLSTER: 2-1/4" X 24" RL X 12" FB (T-SLOTTED)
CYLINDER SIZE: 6" OD
RAM SPEEDS:
RAPID ADVANCE:
PRESSING:
RAPID RETURN:
DIST UPRIGHTS/FLOOR TO BED: 15" / 38-3/4"
ELECTRICS: 15 HP, 1765 RPM, 230/460/3/60V MOTOR
VICKERS PUMP & PACIFIC VALVING
APPROX DIMENSIONS: 10' H X 4'6" RL X 5'6" FB
APPROX WEIGHT: 8,500 LBS.
EQUIPPED WITH; STEEL PLATE FRAME CONSTRUCTION
STROKE POSITION INDICATOR
ISB LIGHT CURTAINS
FLOOR STANDING BASE
SELF-CONTAINED HYDRAULIC UNIT
YEAR: 1972
CONDITION: VERY GOOD
LOCATION: OUR COLUMBIA, TN WAREHOUSE

10' H x 4'6" RL x 5'6" FB

8,500 lbs
