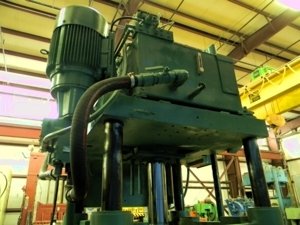

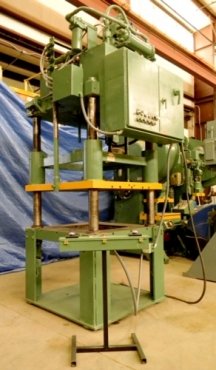

50 TON STERLING 4-POST HYDRAULIC PRESS - RECONDITIONED
Model: #MKC-2 DOWN ACTING TYPE
Capacity: 50 TON
Max. Stroke: 24"
Max. Daylight to Bed: 36" MAX
Max. Shut Ht. to Bed: 12"
Overall Bed Area: 48" RL X 48" FB (T-SLOTTED)
Distance Between Posts: 36" RL X 36" FB
Ram Speed: 34 INCH CYCLE IN 14 SECONDS
Bolster Size: 2-1/4" TH x 46-1/2" RL x 32-1/2" FB
w/1/2" TAPPED HOLES EVERY 6"

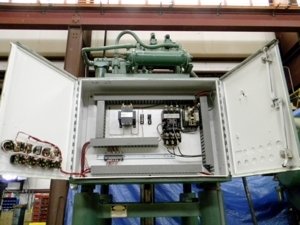

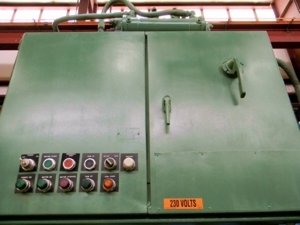

Electrics: 15 HP MOTOR AND RELAY BASED CONTROLS
W/ ALLEN BRADLEY COMPONENTS

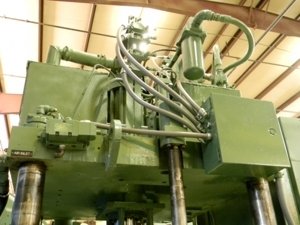

Hydraulics: CROWN MOUNTED 90 GAL. RESERVOIR
OIL GEAR PUMP (34 GPM)
Approx. Dimensions: 11'8"H x 6'RL x 5'FB
Approx. Weight: 14,000 LBS.
Equipped With: FLOOR STANDING BASE
STEEL FRAME CONSTRUCTION
MANUAL GREASE LUBRICATION SYSTEM
4-POST DESIGN
Year: 1990
Condition: EXCELLENT / RECONDITIONED
Location: COLUMBIA, TN (Nashville)
