Pressbrake

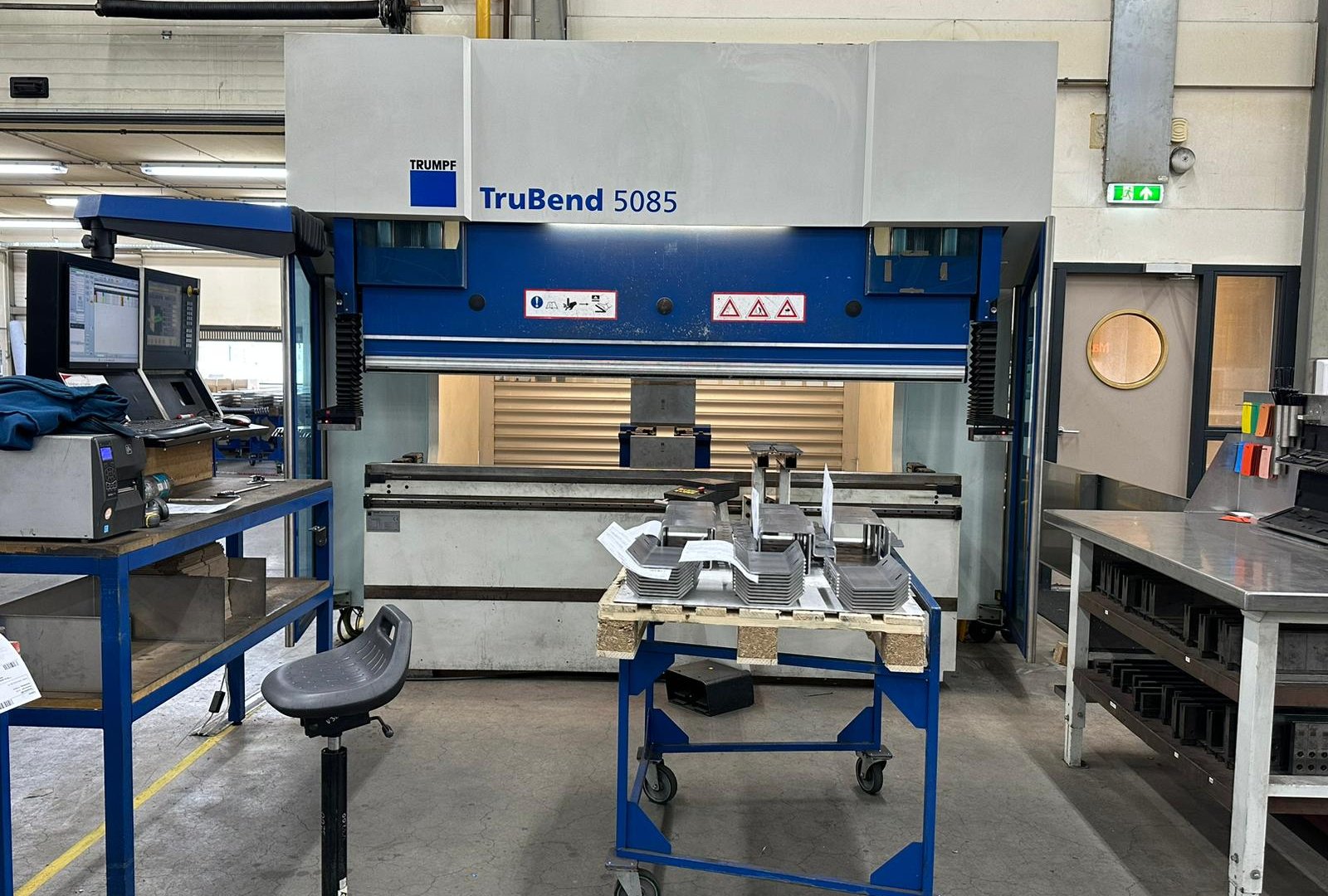

TRUMPF - Truebend 5085 4 Hydraulic cilinders 2 + 2 Left and Right
Lazer safe safety system
Hydraulic clamping
Electro hydraulic down stroking

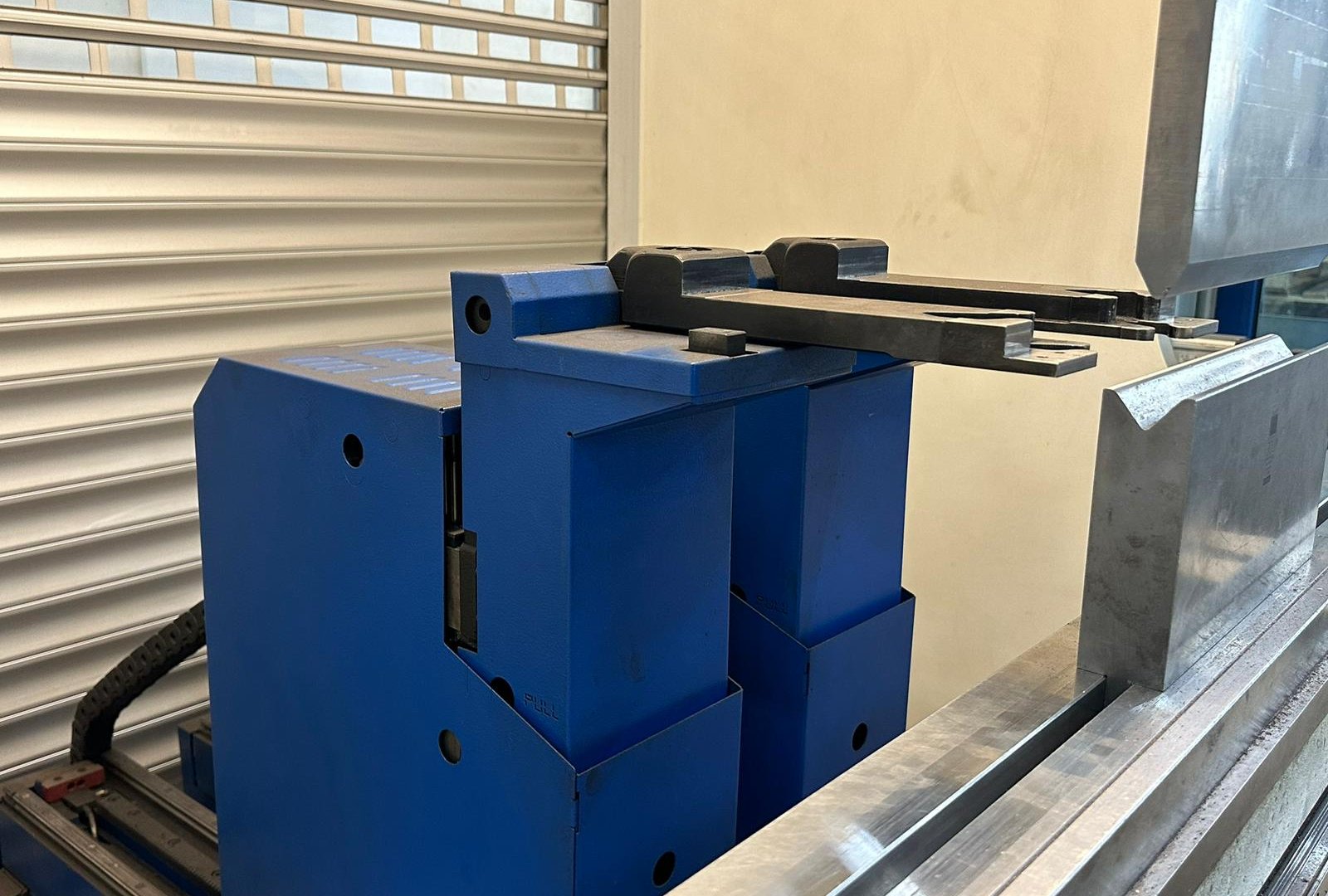

Backgauge 4-axes system
Rack and pinion drive for X and R Axes
Bending help T1 and T2 on front machine
Availebel after summer 2023
Max. bending length: 2720mm
Distance between column: 2260mm
Dis. Beam - Table: 735mm
Beam stroke: 445mm
Table Width: 120mm
Troth beam: 420mm
Approch speed: 220mm/min.
Working speed: 25mm/min.
Return speed: 220mm/min.
Adjustment X-Axis back gauge:860mm
Number of controlled axis: X and R Axis
Crowning: Yes
Hydraulic toolclamping: Wila new standard
Power: 12kW
Length: 3530mm
Width: 1800mm
Height: 2835mm
Weight: 8600kg
Specifications:
Pressbrake
TRUMPF - Truebend 5085 4 Hydraulic cilinders 2 + 2 Left and Right
Lazer safe safety system
Hydraulic clamping
Electro hydraulic down stroking
Backgauge 4-axes system
Rack and pinion drive for X and R Axes
Bending help T1 and T2 on front machine
Availebel after summer 2023
Max. bending length: 2720mm
Distance between column: 2260mm
Dis. Beam - Table: 735mm
Beam stroke: 445mm
Table Width: 120mm
Troth beam: 420mm
Approch speed: 220mm/min.
Working speed: 25mm/min.
Return speed: 220mm/min.
Adjustment X-Axis back gauge:860mm
Number of controlled axis: X and R Axis
Crowning: Yes
Hydraulic toolclamping: Wila new standard
Power: 12kW
Length: 3530mm
Width: 1800mm
Height: 2835mm
Weight: 8600kg
