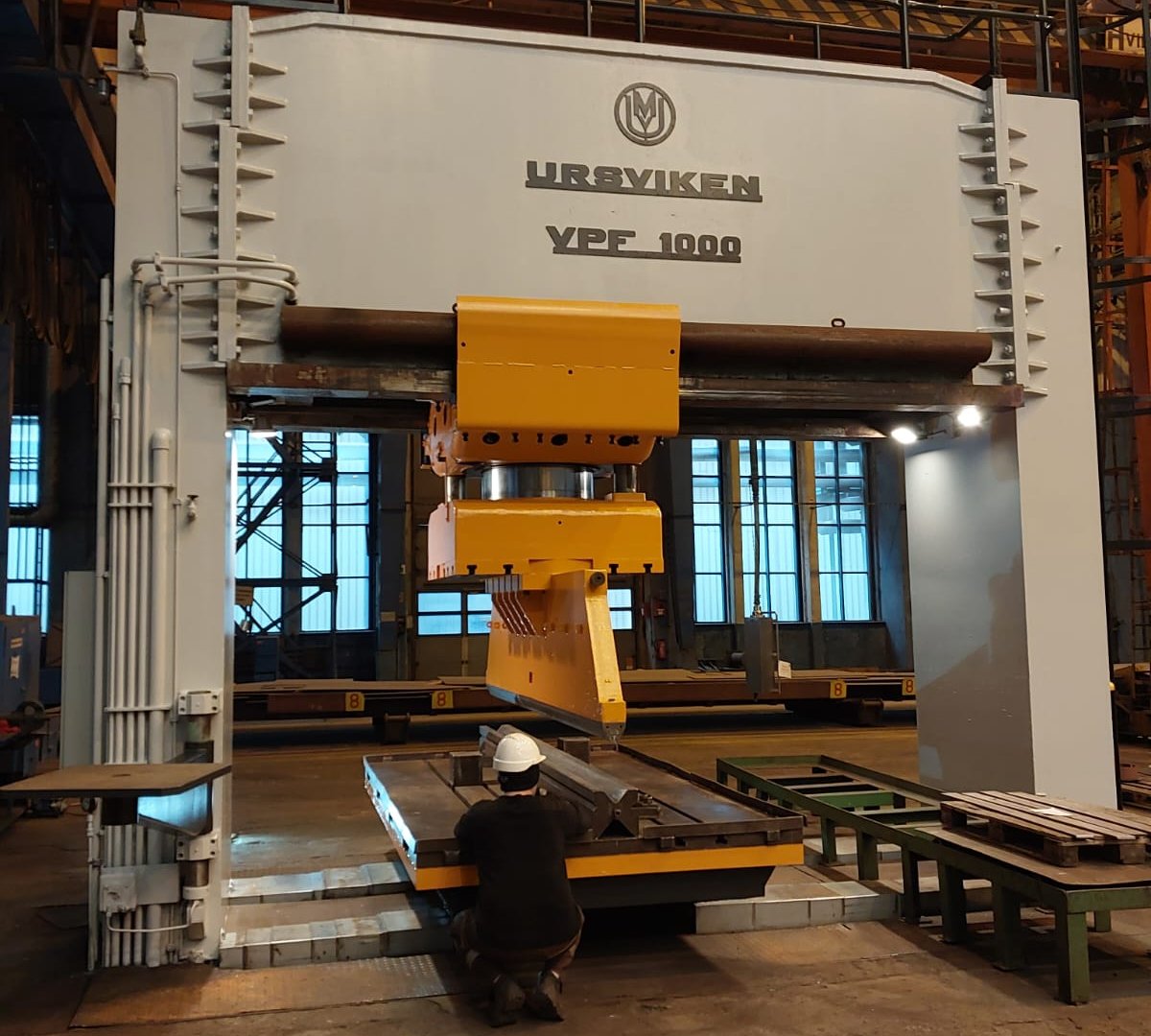

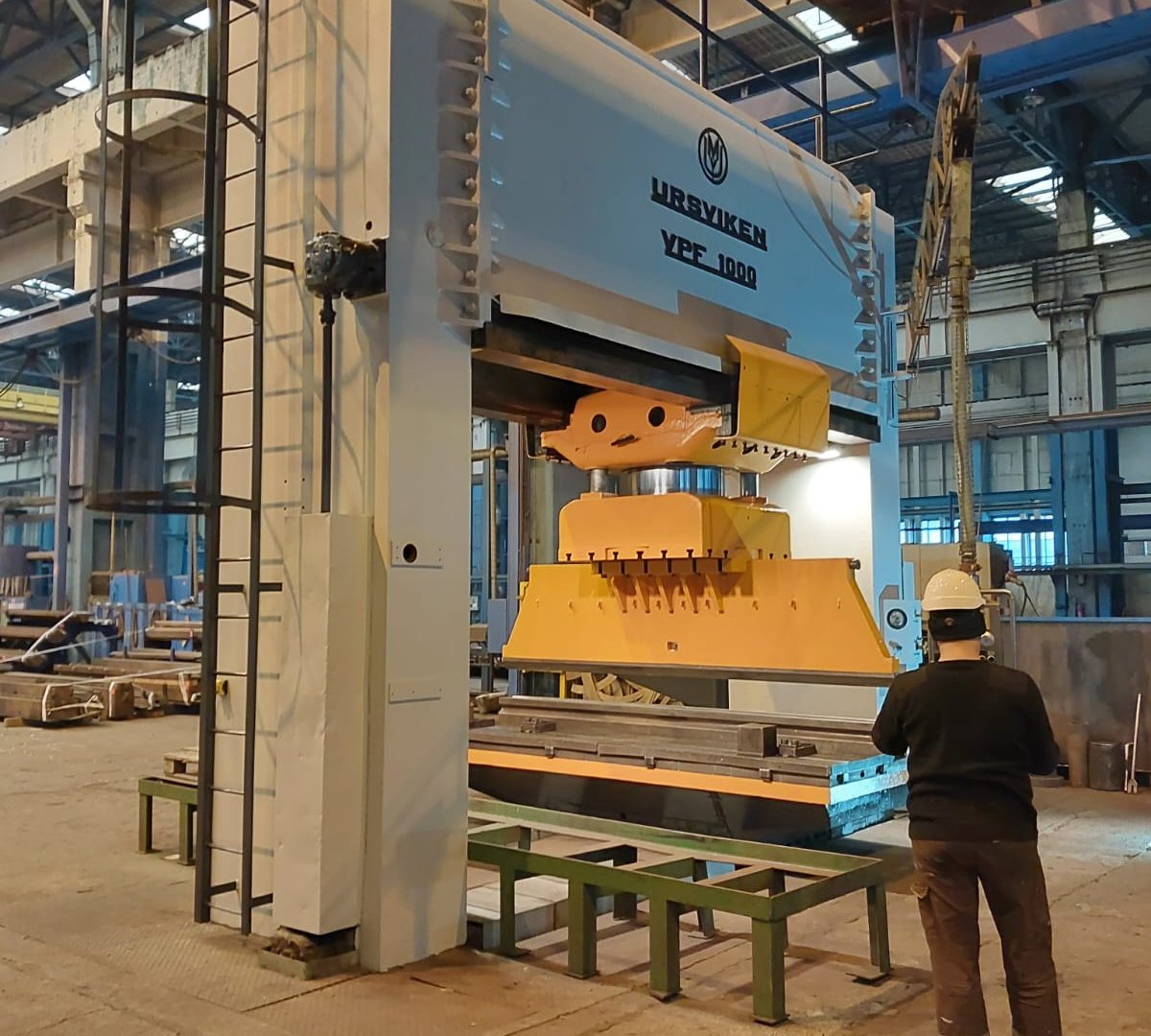

Hydraulic press for fabrication off large componts like dish heads tanks boiler shipyard and steelconstruction

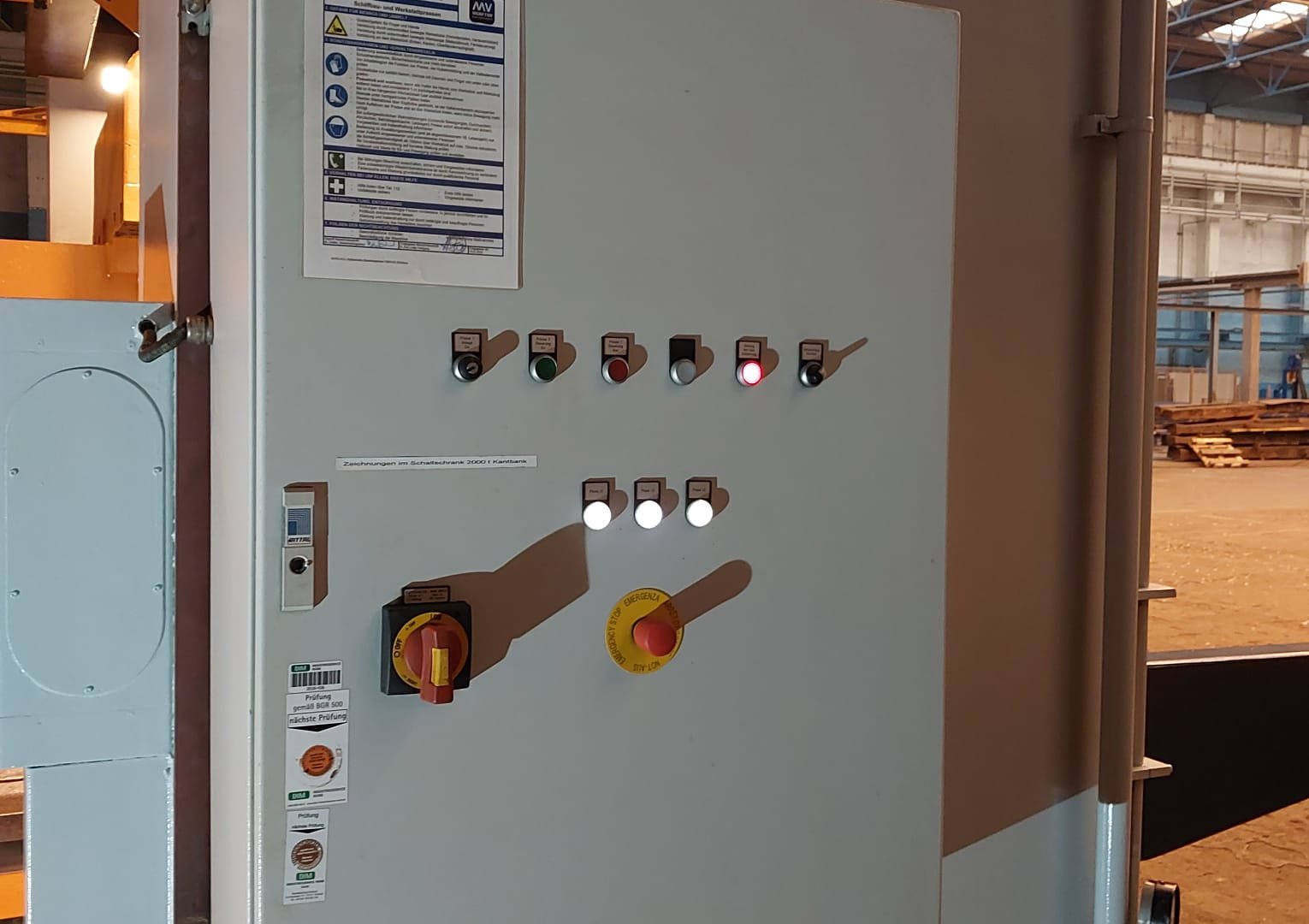

Renewed in 2015 with Siemens SIMATIC panel and E-Cabinet Rittal
Build in height 2950 mm
Maximum die height 1500 mm

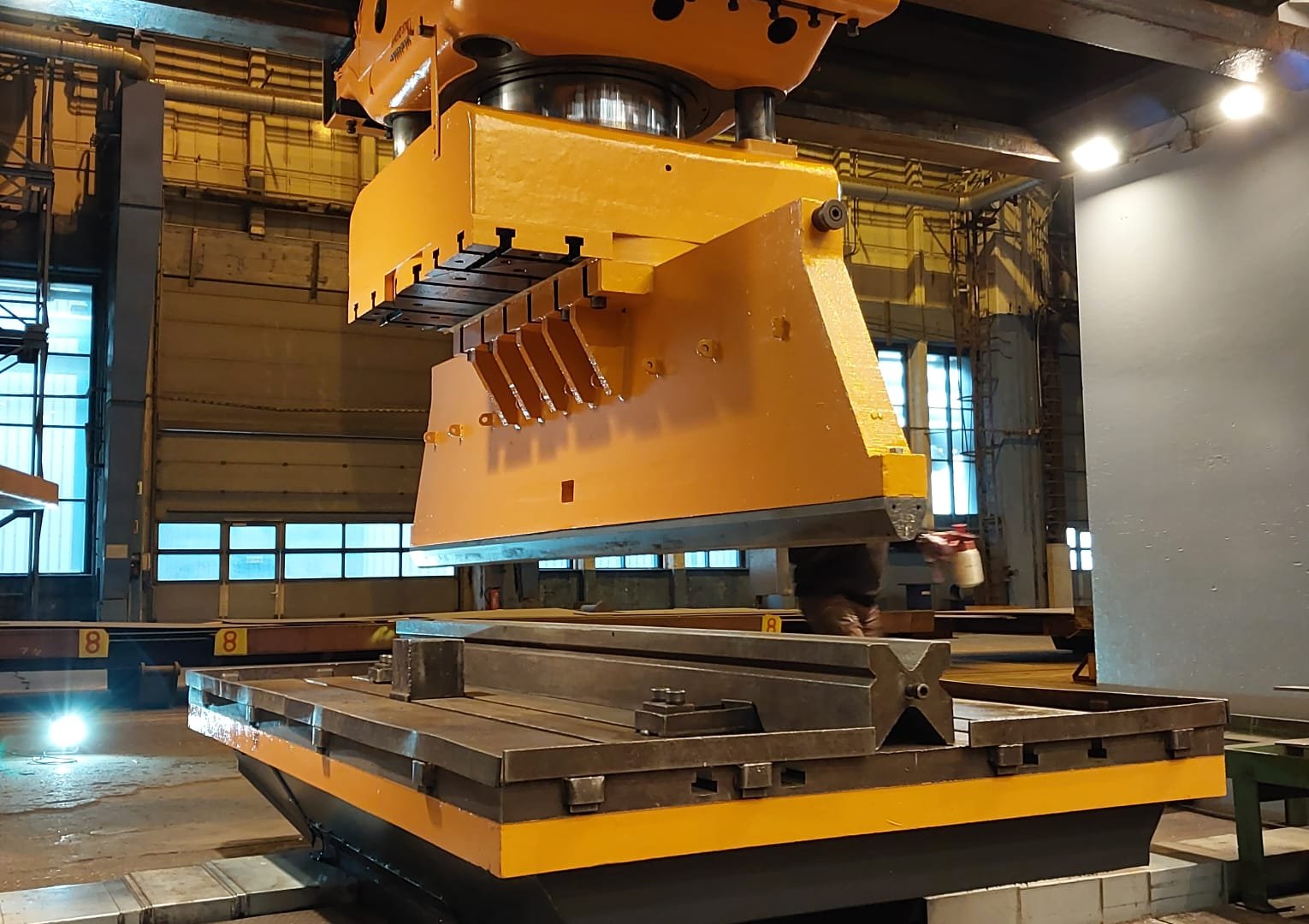

Movable Table & Piston in X-Ways

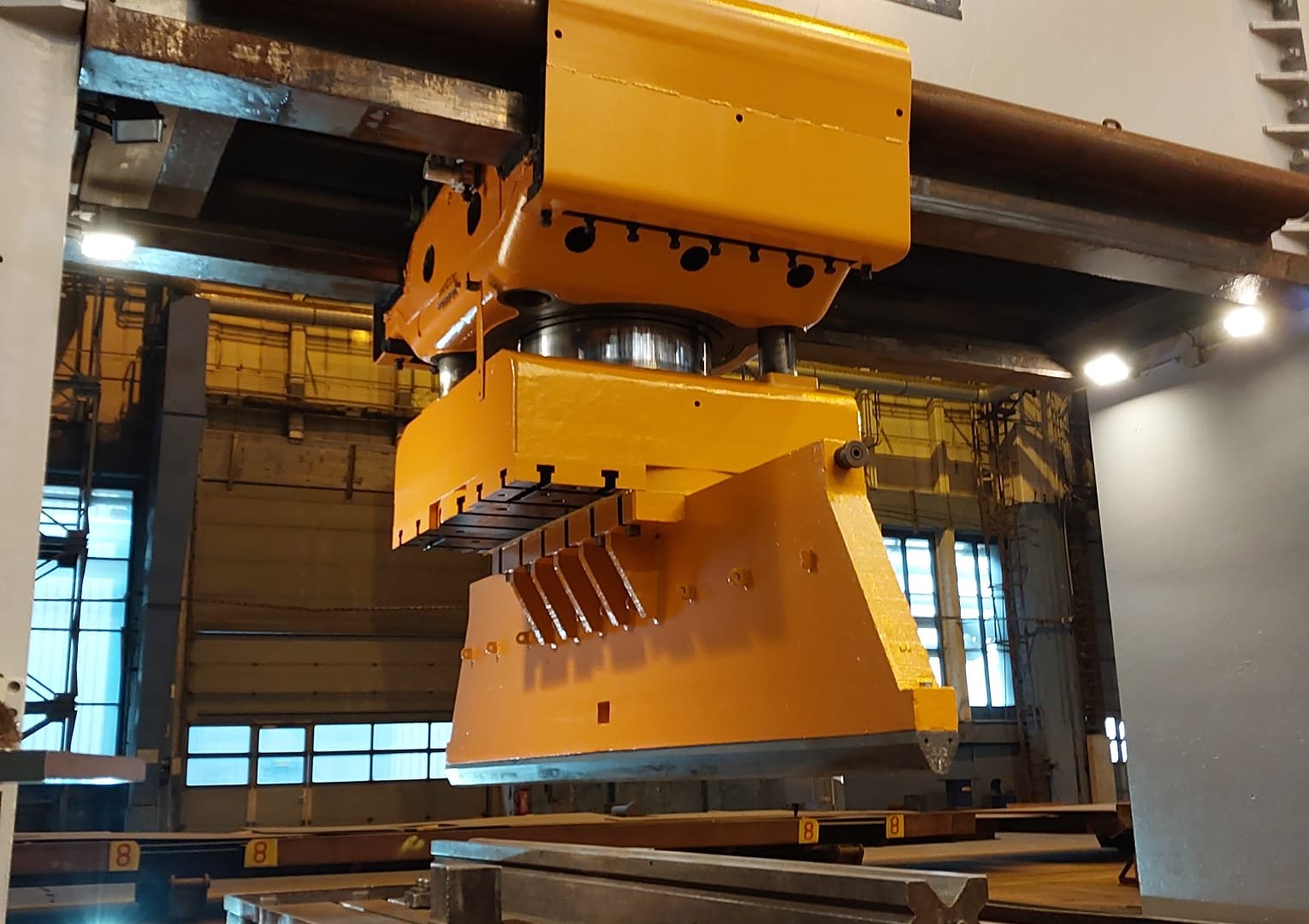

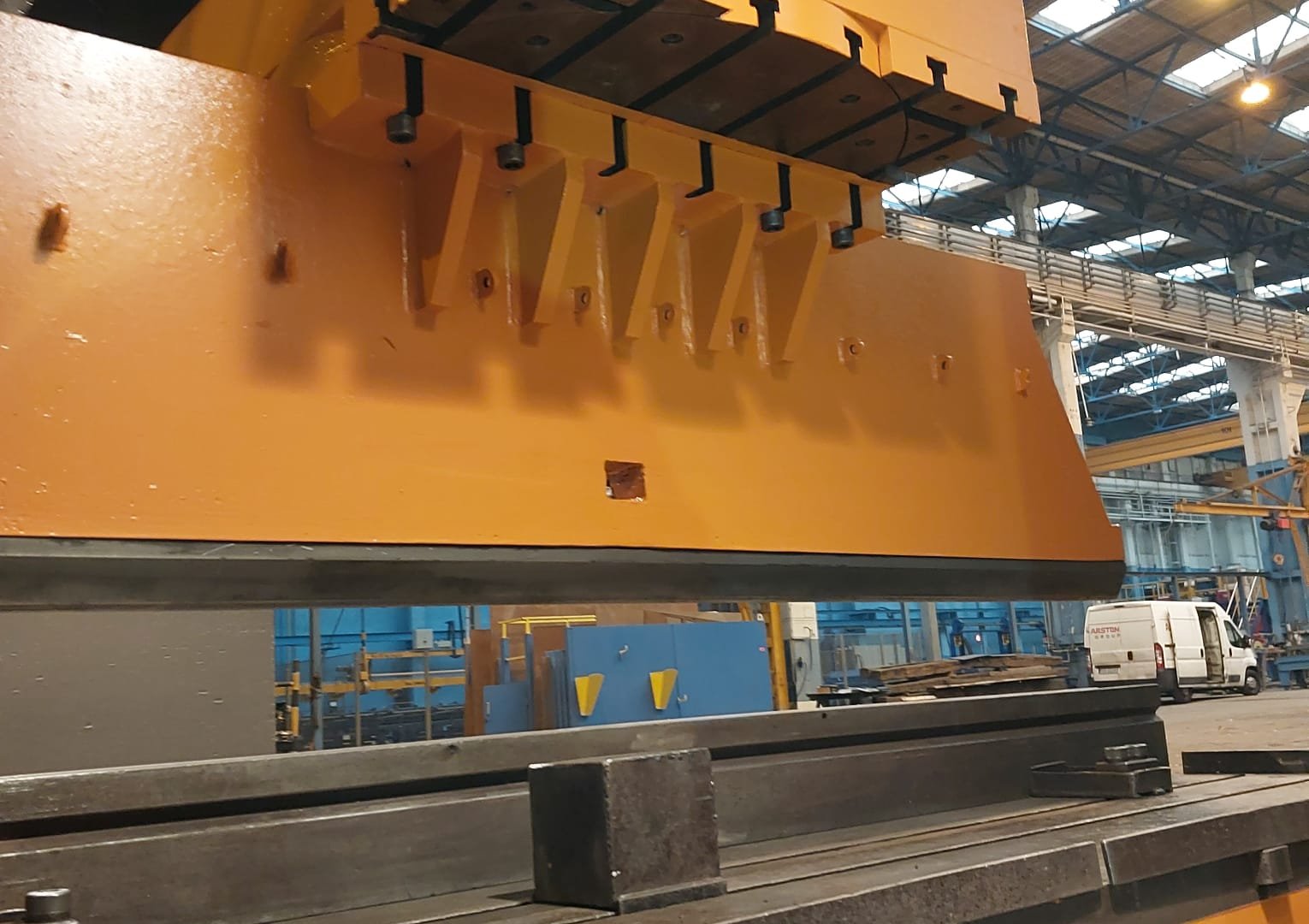

Large package Die tooling radius 10/20/30/50/60/80/100
Pressing force 210 kg/cm2
Maximum stroke 800 mm

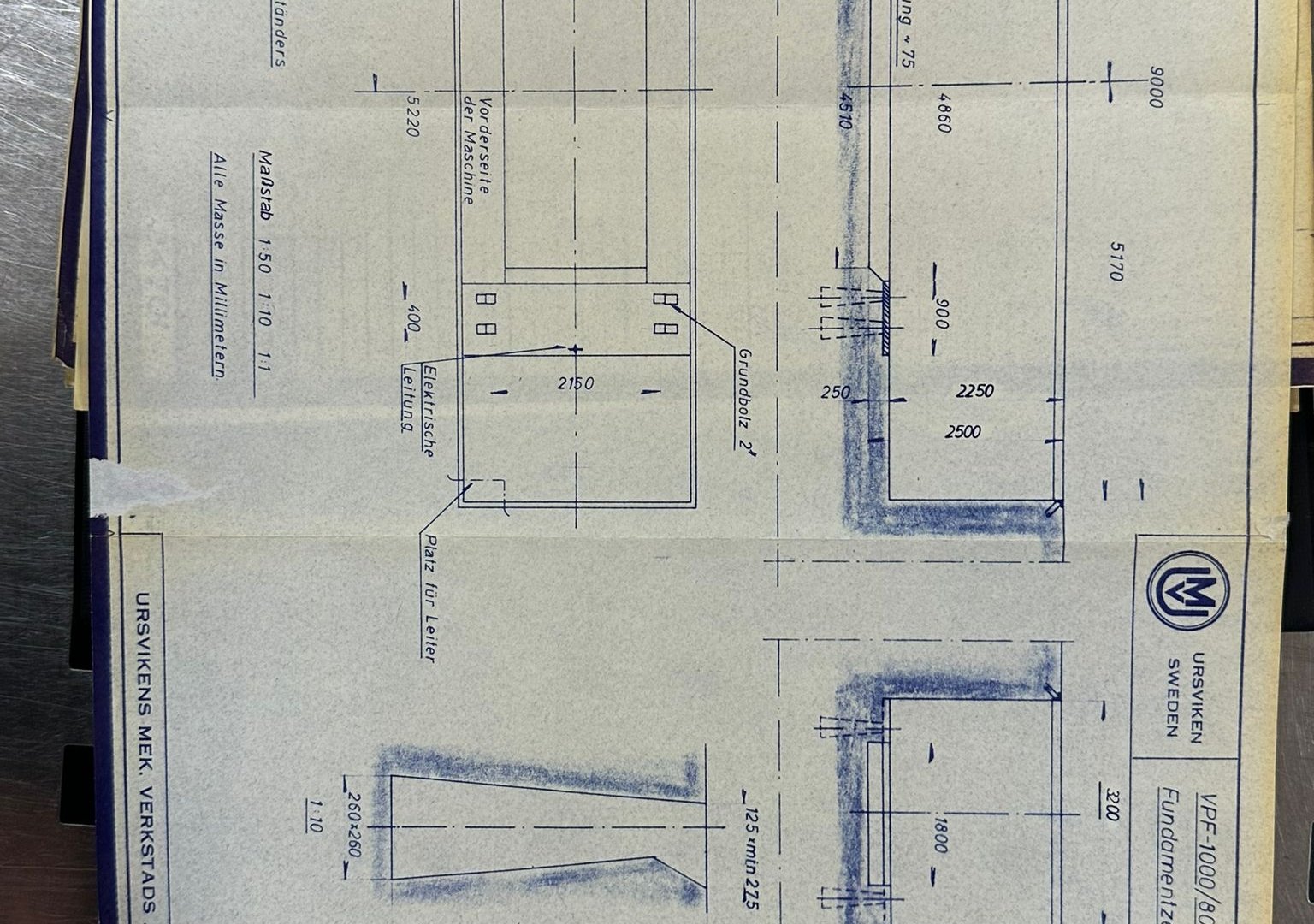

Machine 2350 mm placed in ground



Capacity Kg: 1000 Ton
Distance between column:5010mm
Table Length: 3000mm
Table Width: 2000mm
Table Height: 550mm
Ram stroke: 1450mm
Approche speed: 50mm/min.
Working speed: 5mm/min.
Return speed: 50mm/min.
Length: 9000mm
Width: 32000mm
Height: 7700mm
Weight: 105000kg
