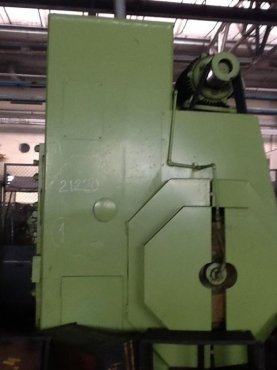

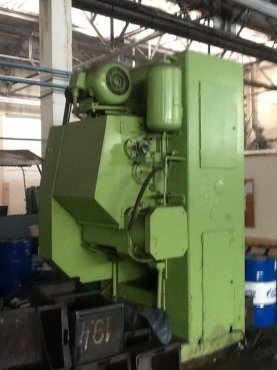

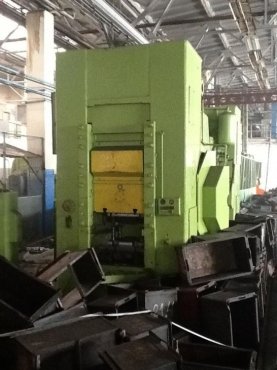

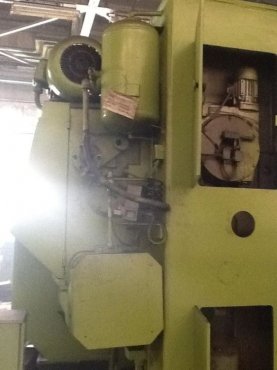

Knuckle joint cold extrusion press K0034 made in Russia.
Specifications:
Rated capacity on the slide: 250 ton
Slide stroke: 200 mm
Frequency of the continuous strokes of the slide: 40/1 min
Max single-stroke engagements: 20/1 min
Adjustment of the tool's height: 16 mm
Maximum tools shut-height: 490 mm
Dimensions of the bolster plate:
-Left-to-right: 800 mm
-Front-to-back: 800 mm
