BARNAUL, K8336, KNUCKLE JOINT, PRESSES
  • Condition:Used
  • Category:PRESSES
  • Type:KNUCKLE JOINT
  • Manufacturer:BARNAUL
  • Model:K8336
  • YOM:1979
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS27777
Description:

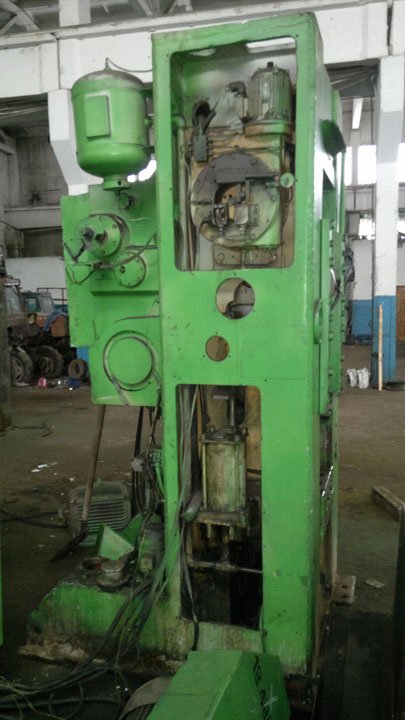

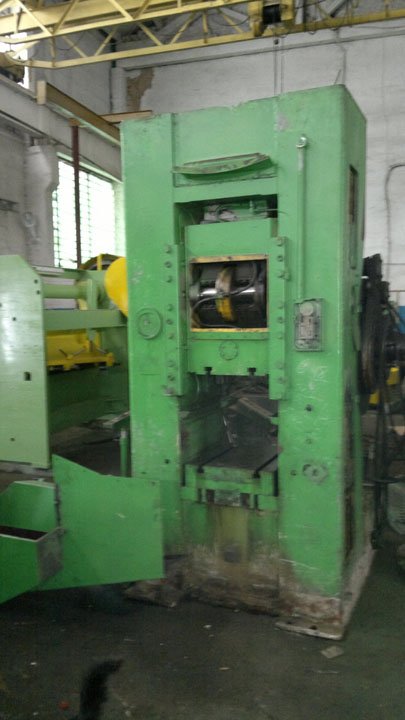

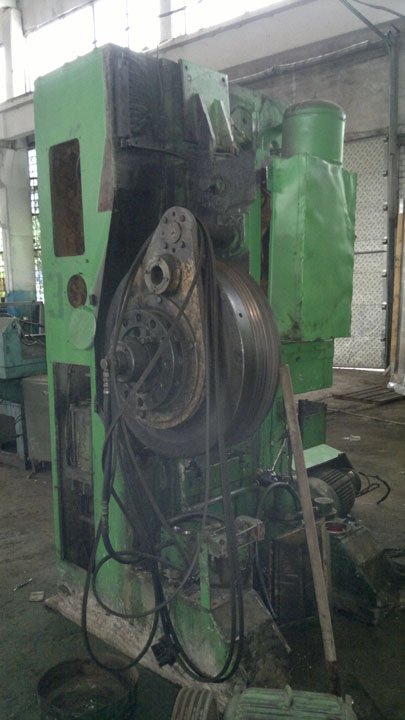

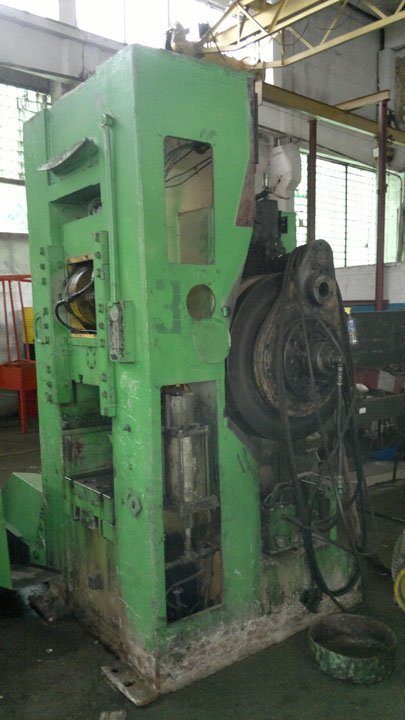

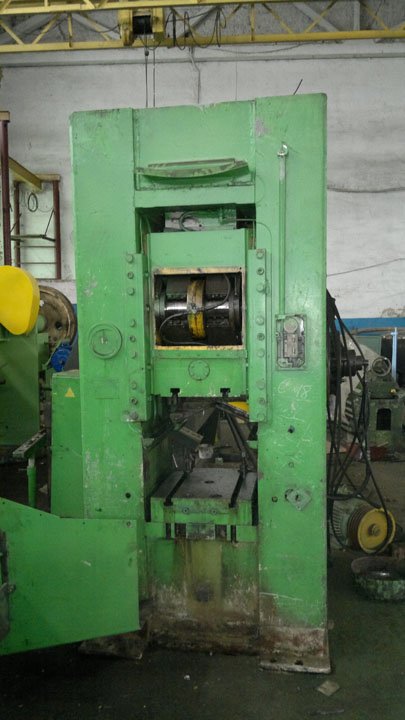

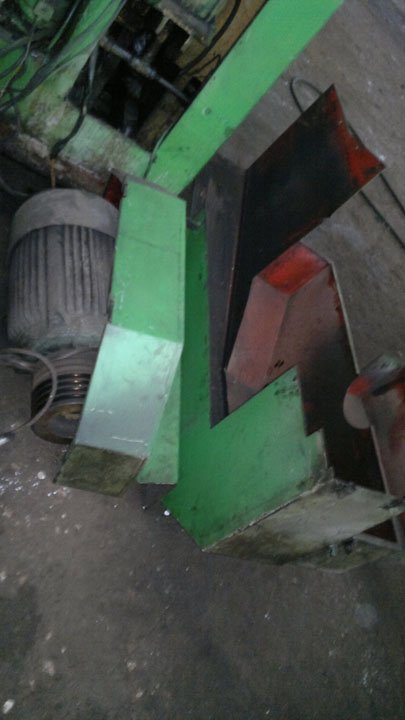

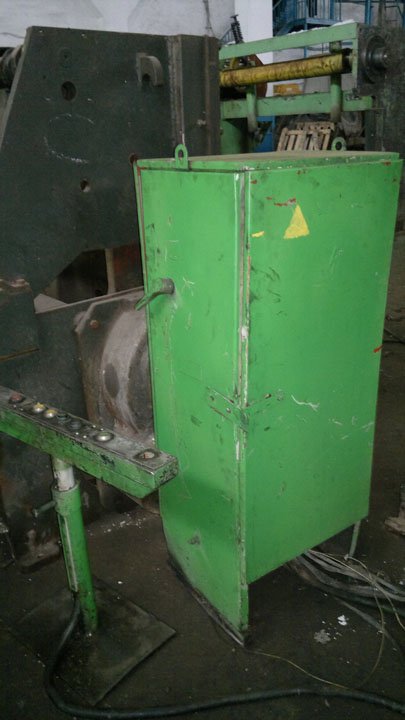

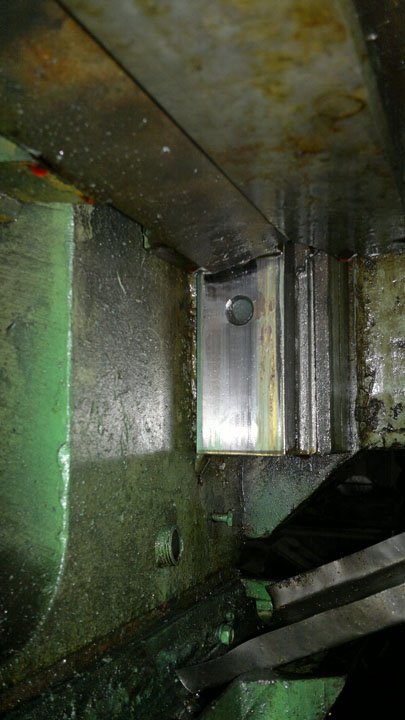

Knuckle joint press BARNAUL K8336 made in 1979 in Russia.
Specifications:

Nominal force: 4000 kN
Ram stroke: 130 mm
Number of continuous strokes per minute: 50
Stroke of ram to its utmost lower position: 1,6 mm
Distance between bolster plate and ram in its lower position at upper position of adjustment: 375 mm
Adjustable distance between bolster plate and ram: 12 mm

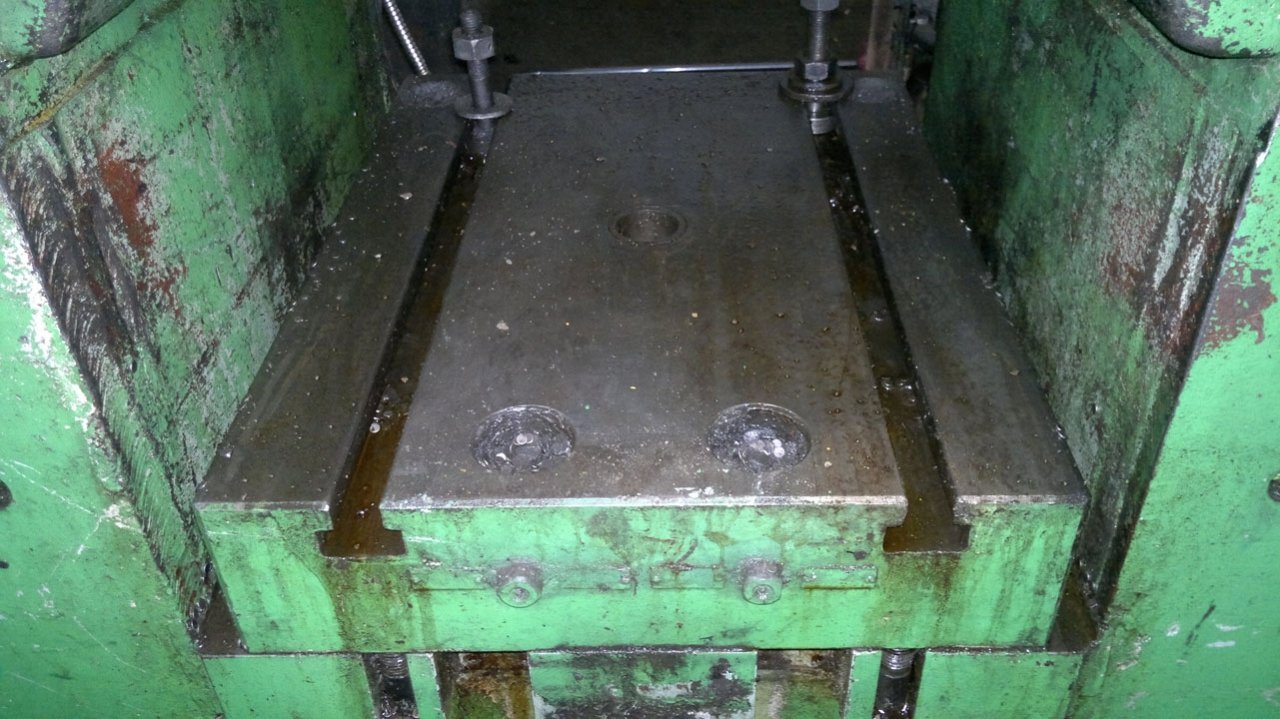

Bolster plate dimensions:
-From left to right: 500 mm
-From front to back: 500 mm

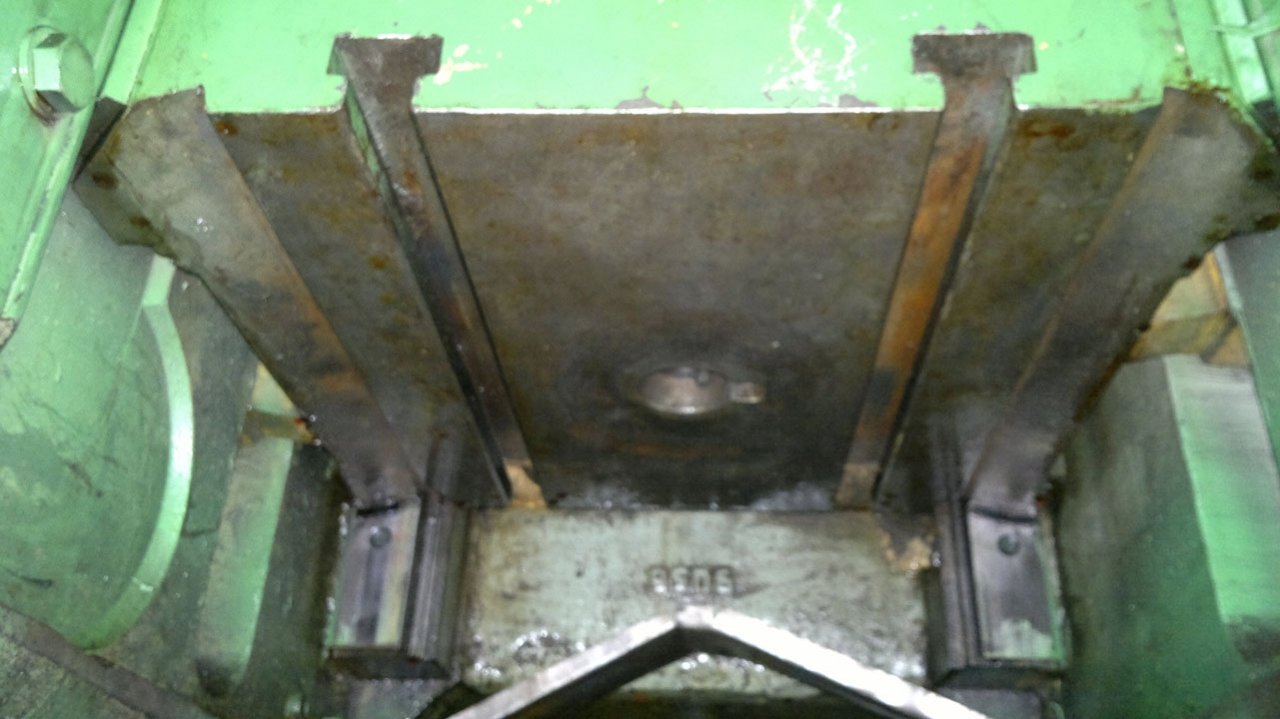

Ram dimensions from front to back: 400 mm
Ejector stroke:
-Upper: 16 mm
-Lower: 80 mm
Ejector force:
-Upper: 40 kN
-Lower: 120 kN
Main drive power: 12 kW
Dimensions:
1940x12402800 mm
Weight:
8425 kg
Dealer name:
EMTC Machinery Lithuania, Vilnius
