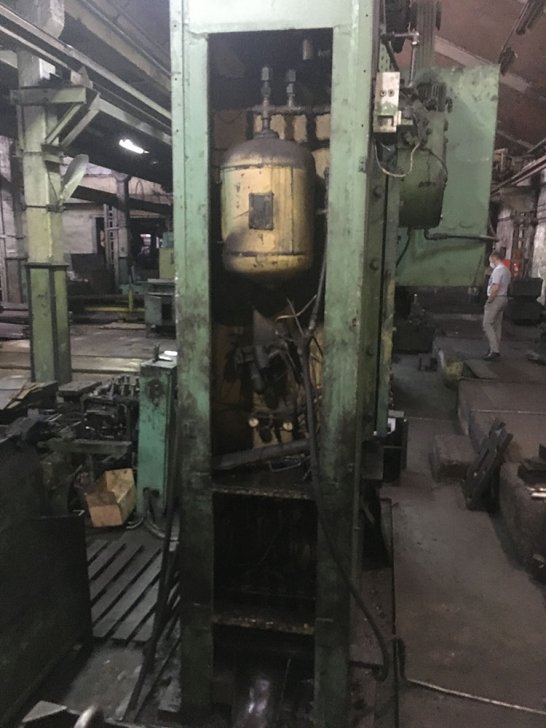

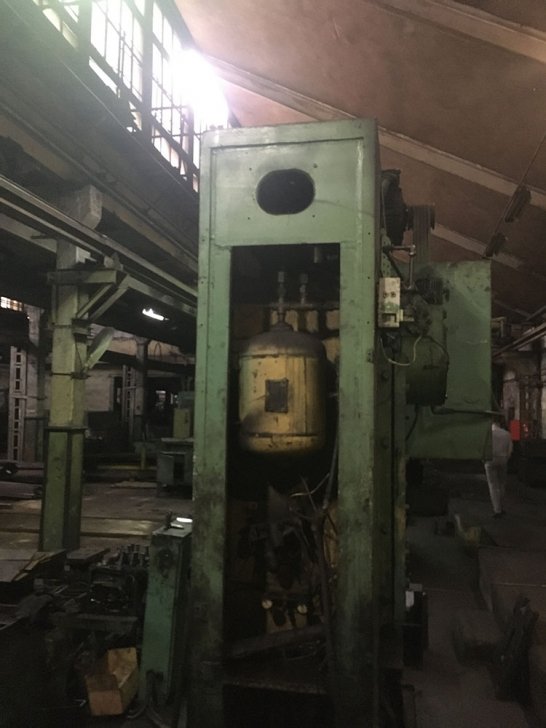

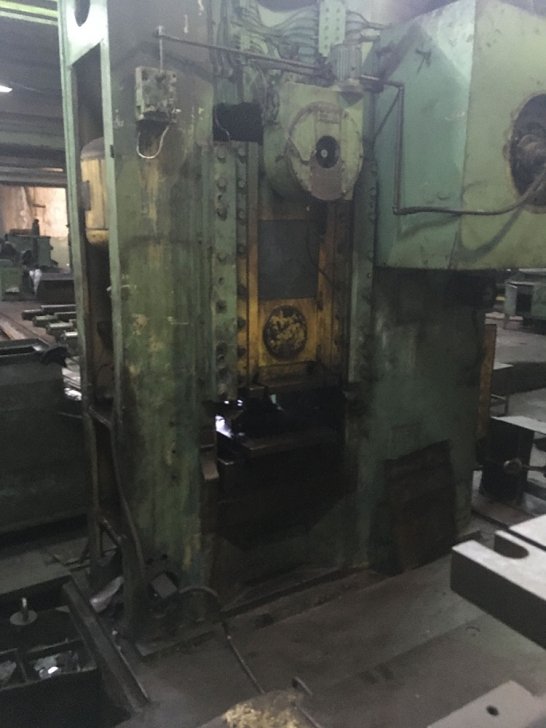

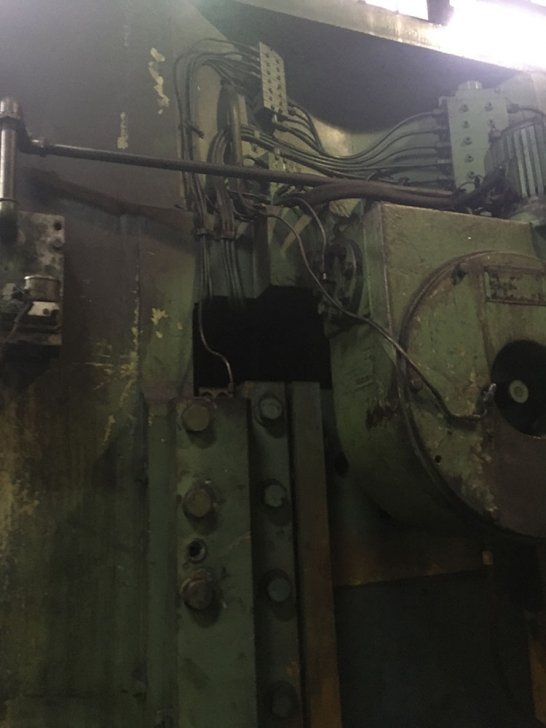

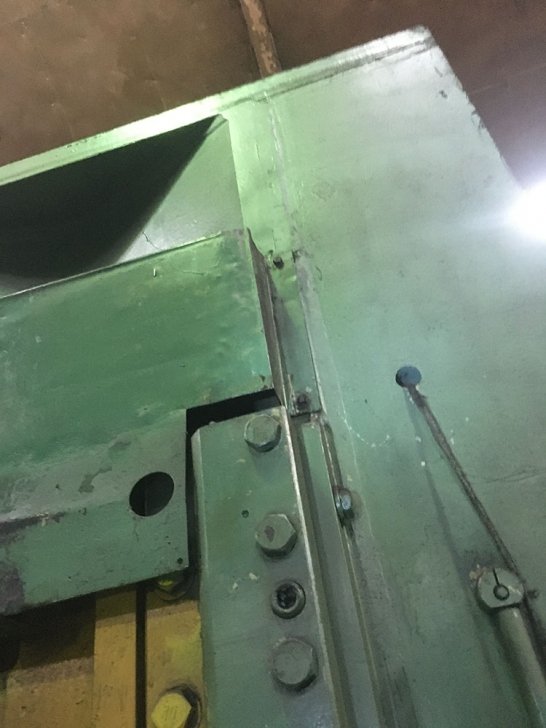

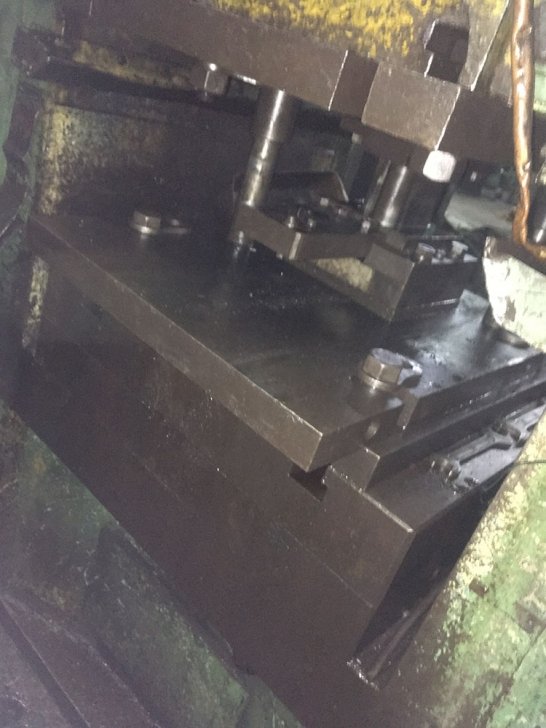

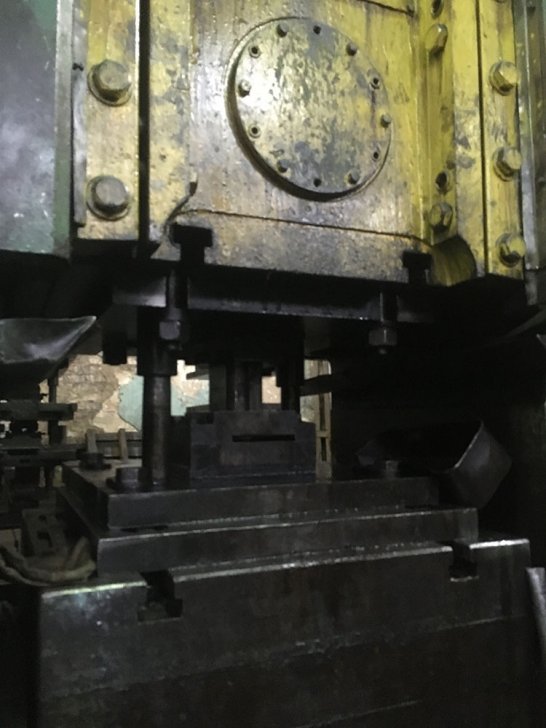

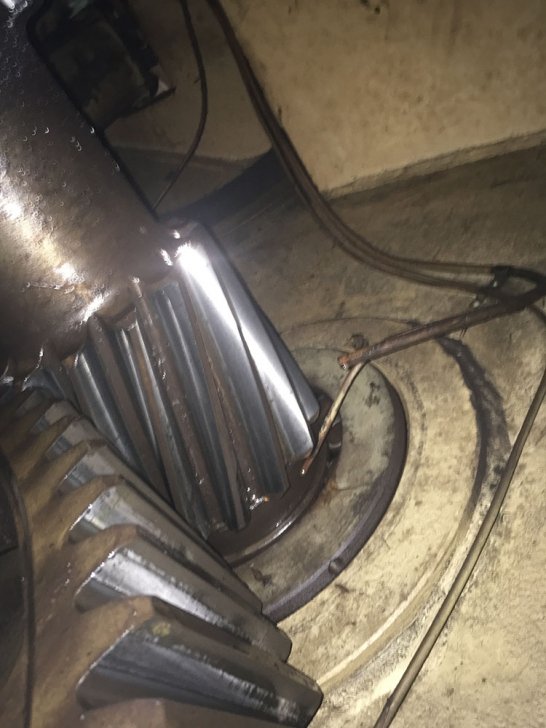

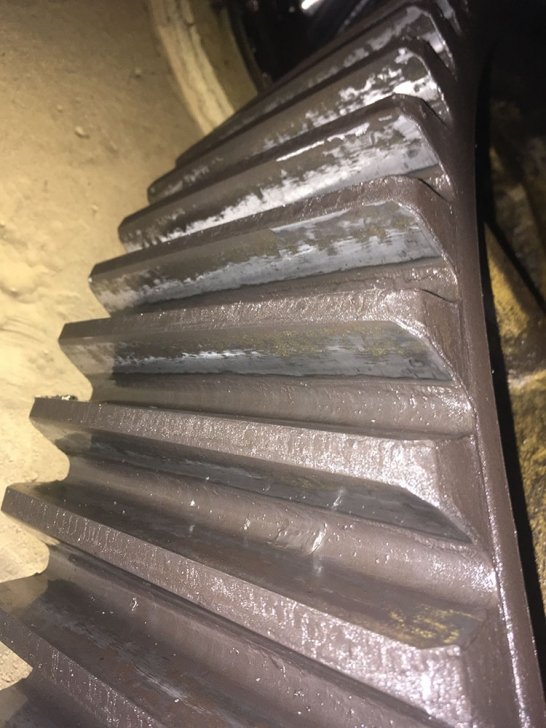

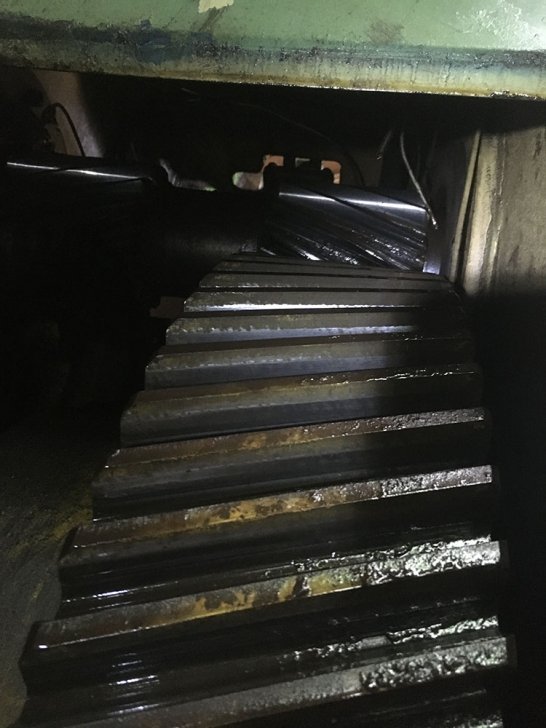

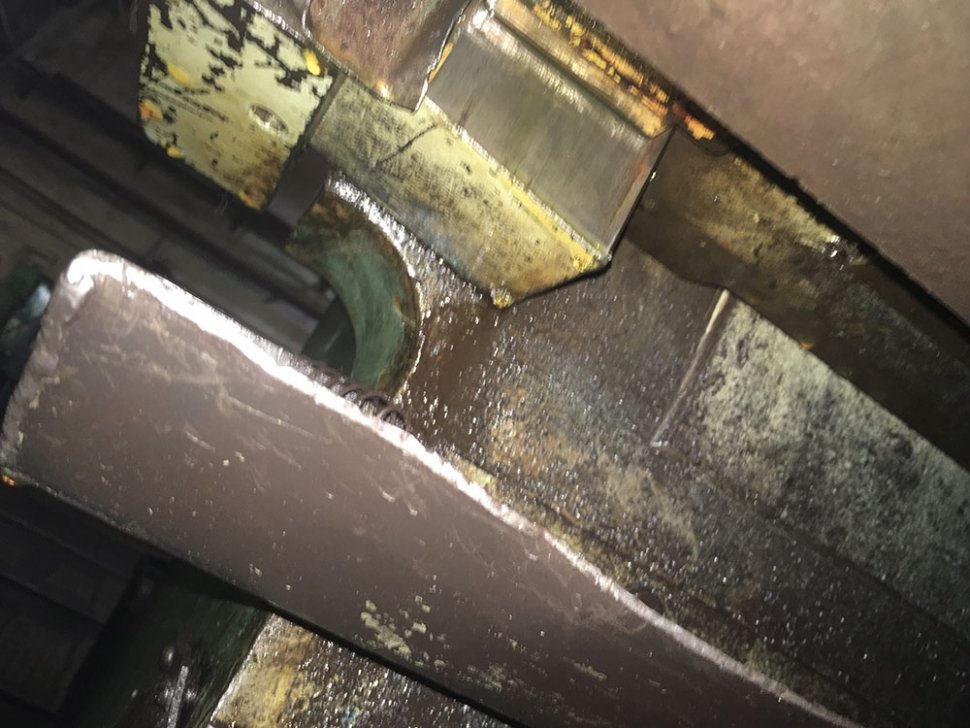

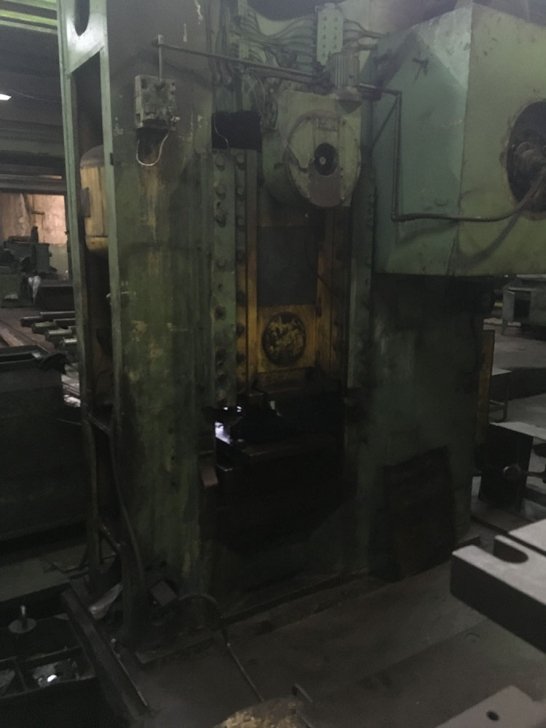

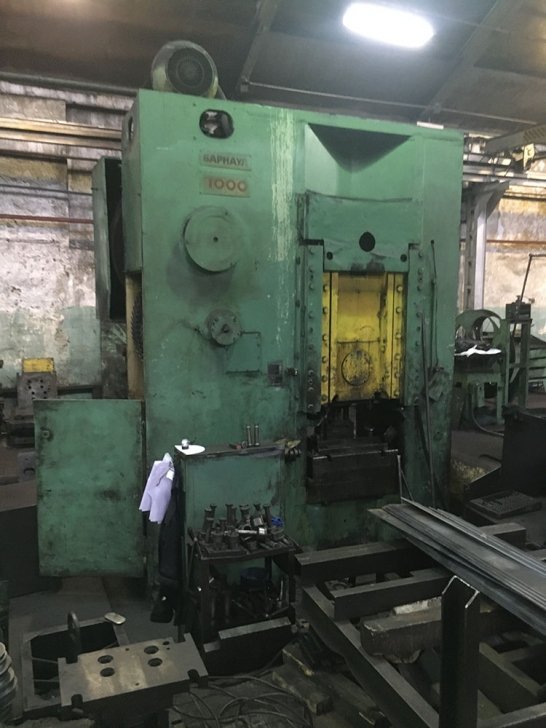

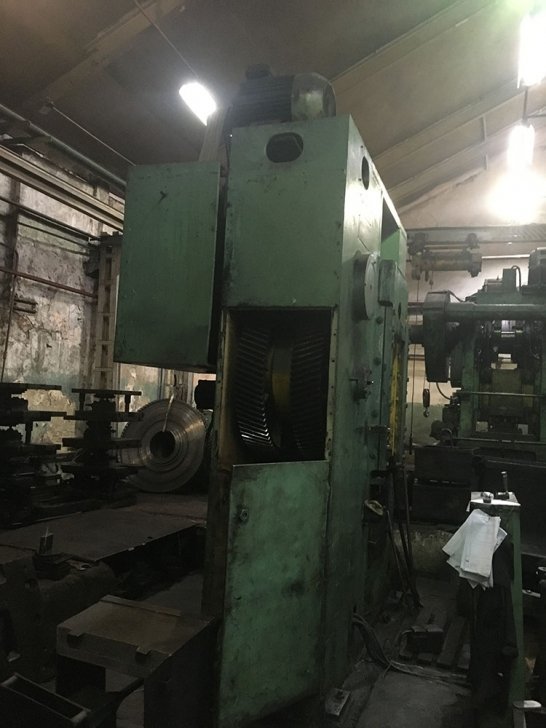

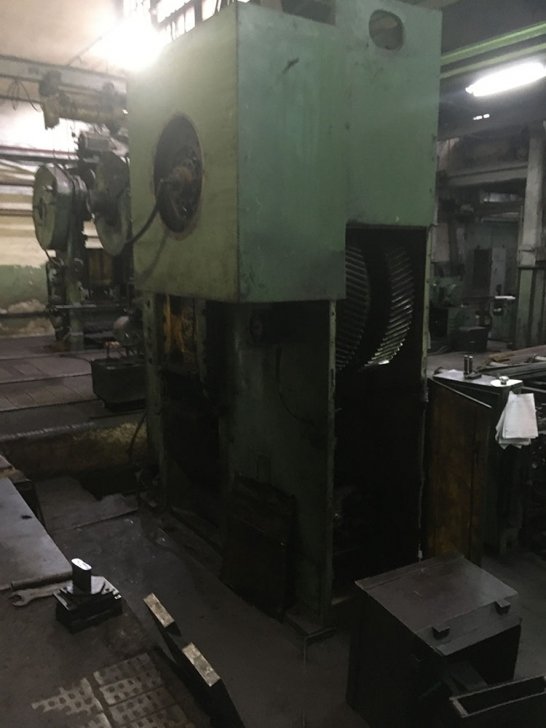

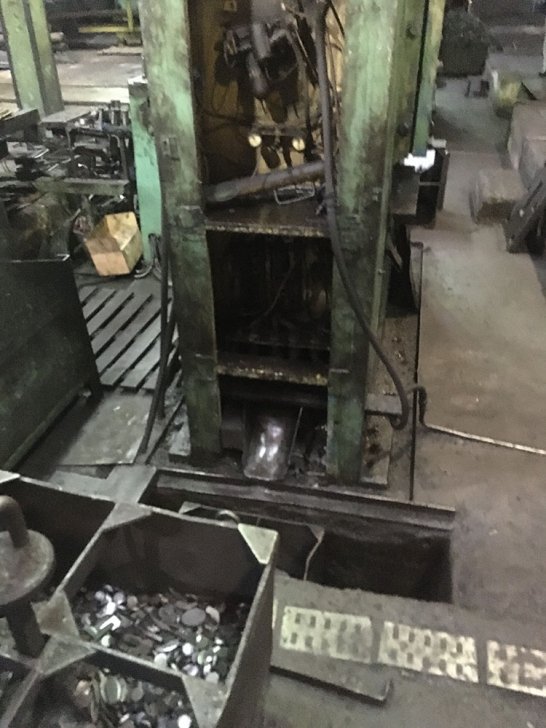

Knuckle joint press BARNAUL KB8340B made in 1991 in Russia. Press is in a very good working condition.
Specifications:
Nominal effort: 1000 tons
Slide stroke: 70 mm
Strokes per 1 min: 50
Shut height: 360 mm
Bolster plate-to-ram adjustable stroke: 16

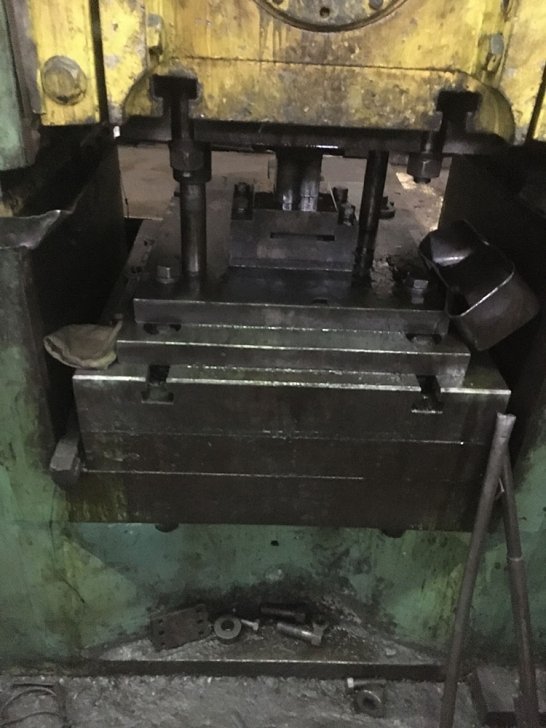

Table size: 800x800 mm
Bolster plate thickness: 140 mm
Slide size front-to-back: 630 mm
Distance between guides: 600 mm
Lower knockout:
-Stroke: 100 mm
-Force: 320 kN
Upper knockout:
-Stroke: 16 mm
-Force: 100 kN
Main motor power: 40 kW, 380 V
