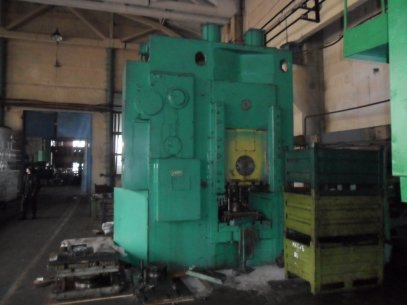

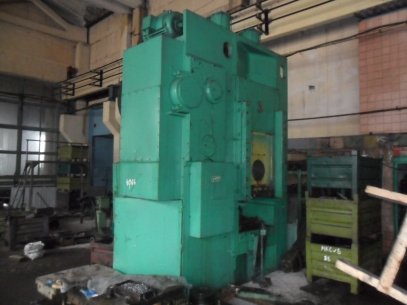

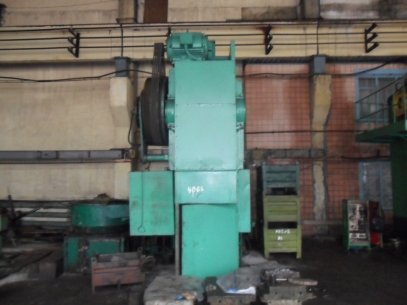

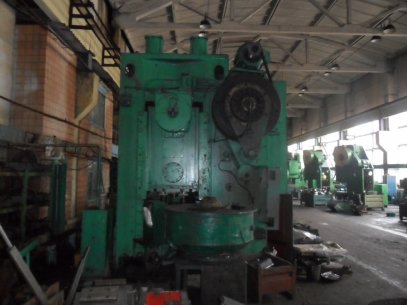

Knuckle joint press KB8342
1600 tn effort
1983 year of manufacturing
made by Barnaul plant,Russia
Specifications:
Knuckle joint press KB8342
Specification:
Nominal effort: 1600 ton
Slide stroke: 180 mm
Number of strokes per minute: 25
Single stroke per minute: 16
Shut height: 510 mm
Bolster plate-to-ram adjustable stroke: 16
Table size: 1000x1000 mm
Slide dimensions: 860x900 mm
Bolster plate thickness: 160 mm
Lower knockout:
-Stroke: 110 mm
-Force: 500 kN
Upper knockout:
-Stroke: 16 mm
-Force: 160 kN
Main motor: 60 kW
Overall dimensions: 3480x2600x4110 mm
Weight: 45 ton
