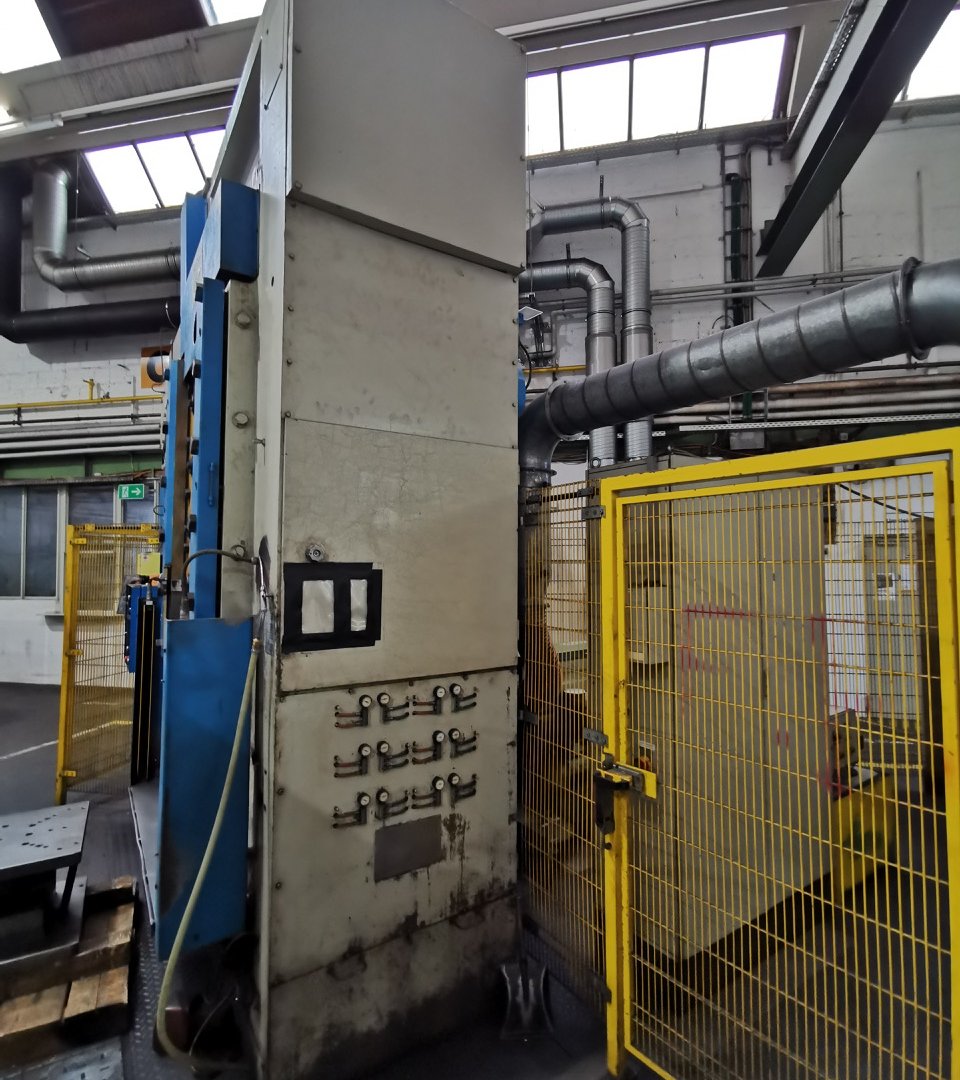

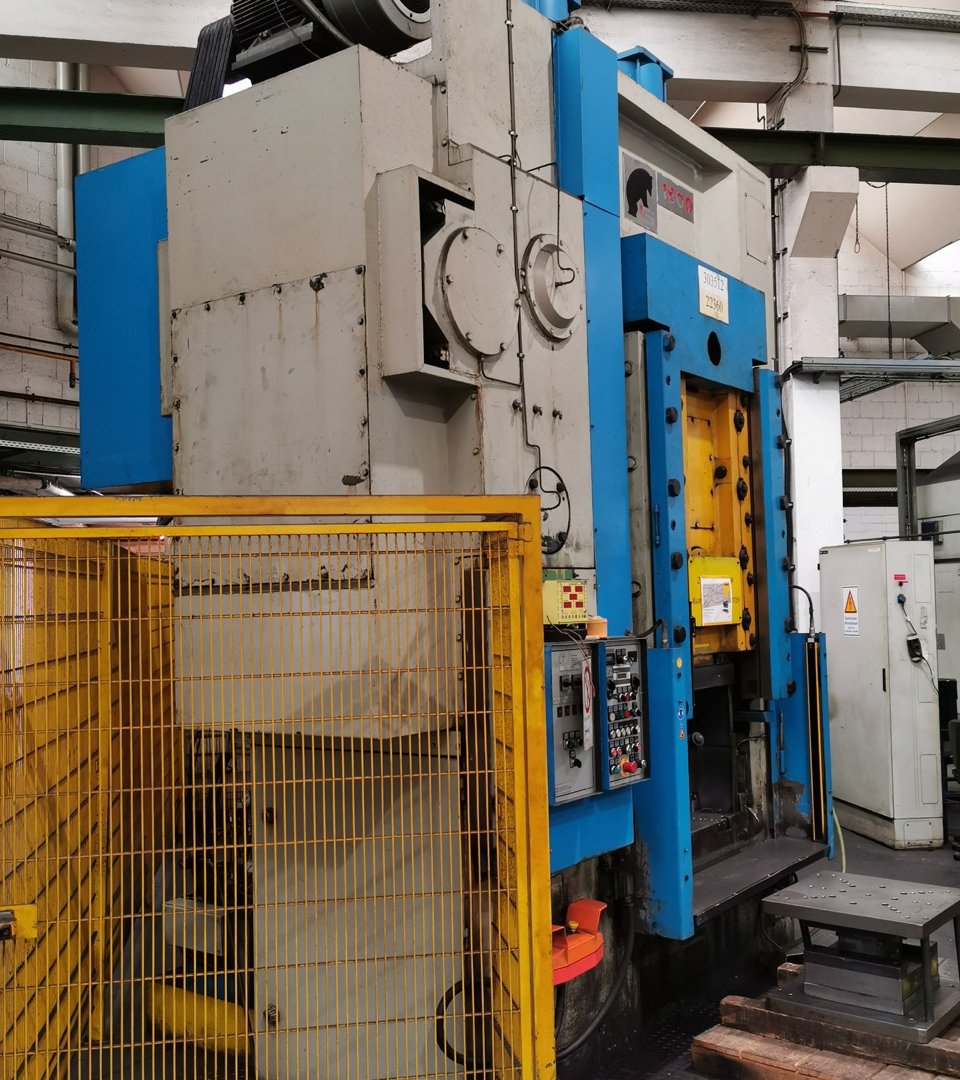

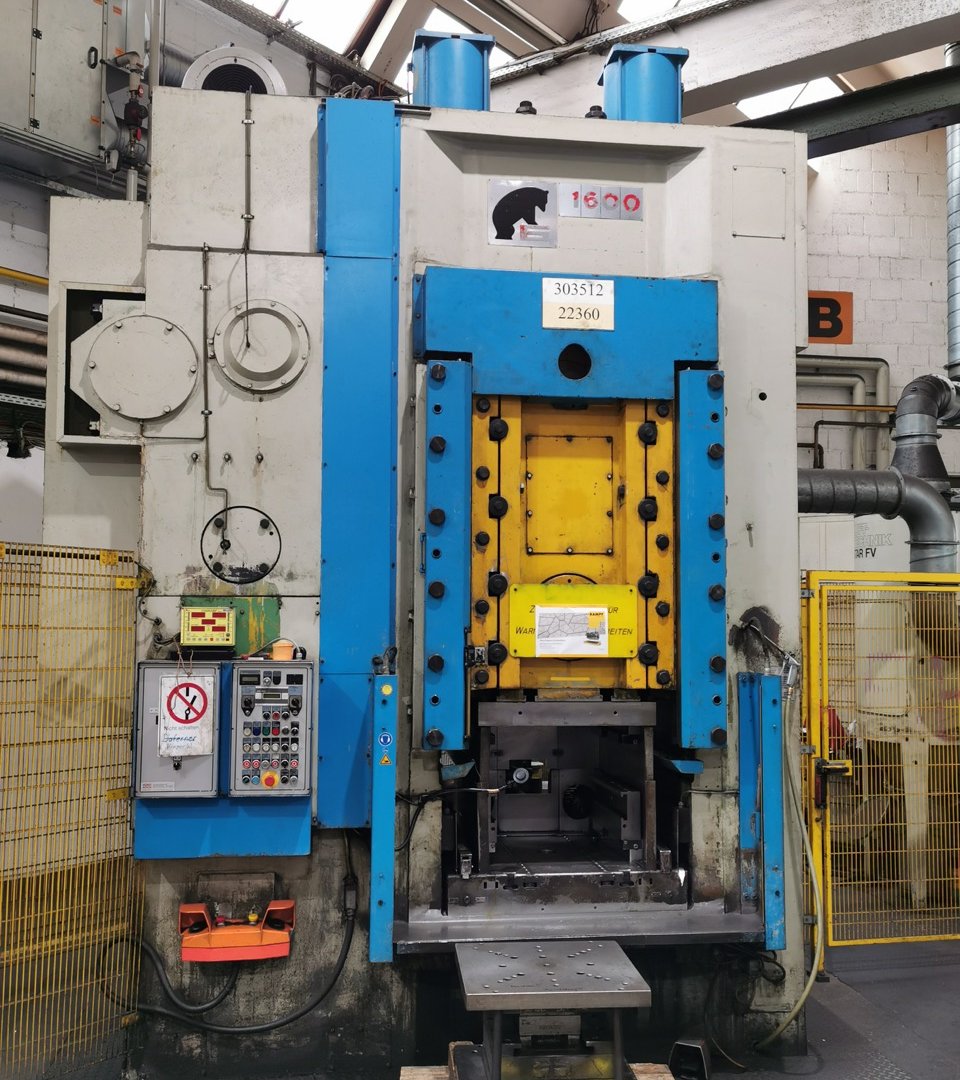

KNUCKLE JOINT PRESS
Nominal effort 1600 tons

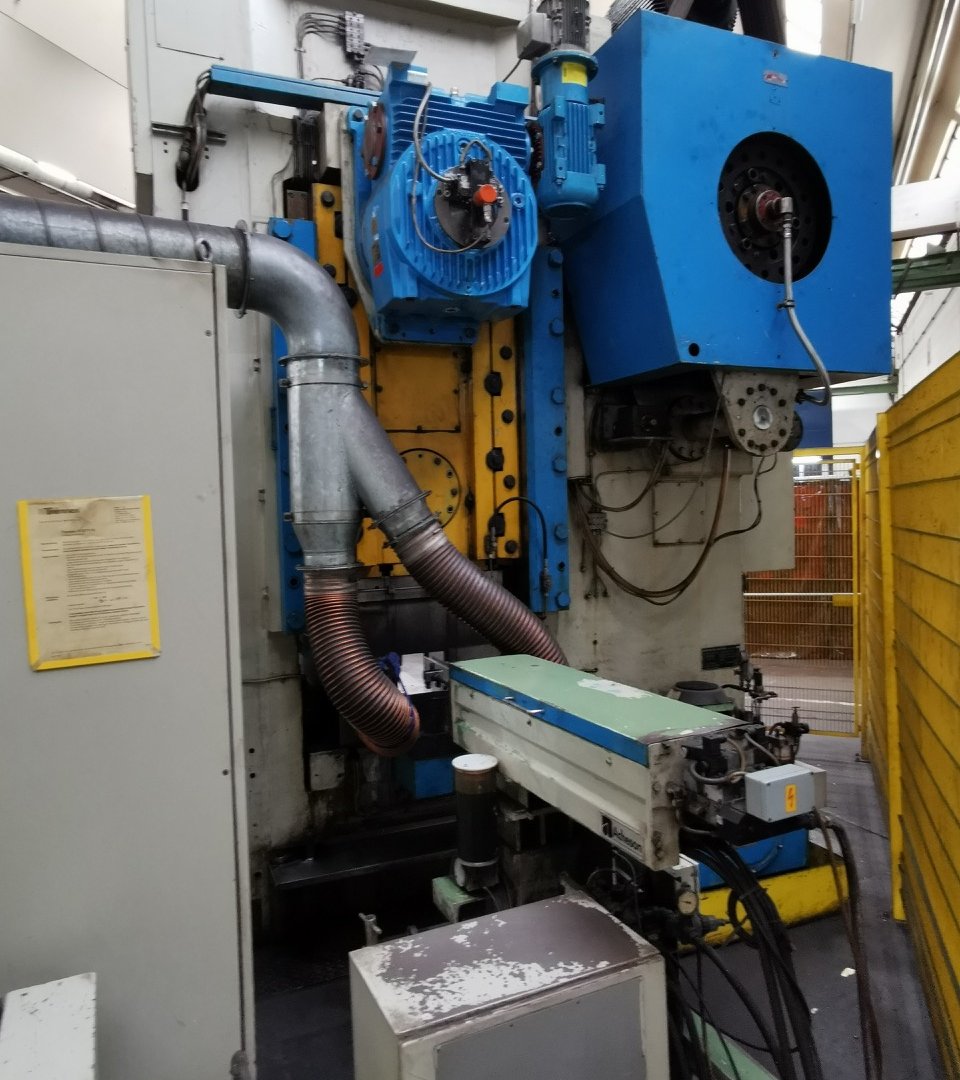

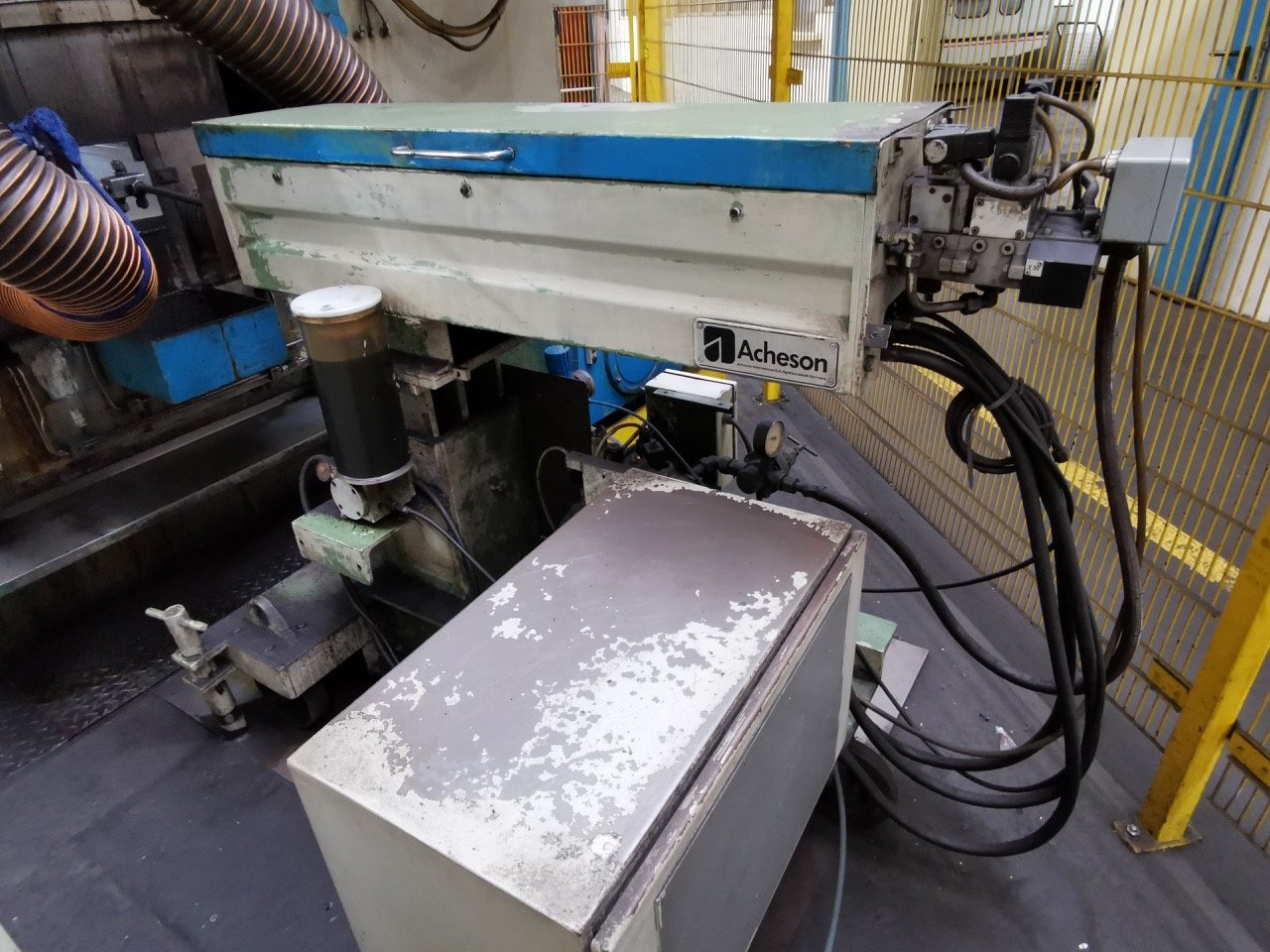

Eqipped with a spraying device
Specifications:
Nominal effort: 1600 tons
Slide stroke: 180 mm
Number of strokes per minute: 25
Single stroke per minute: 16
Shut height: 510 mm
Bolster plate-to-ram adjustable stroke: 16

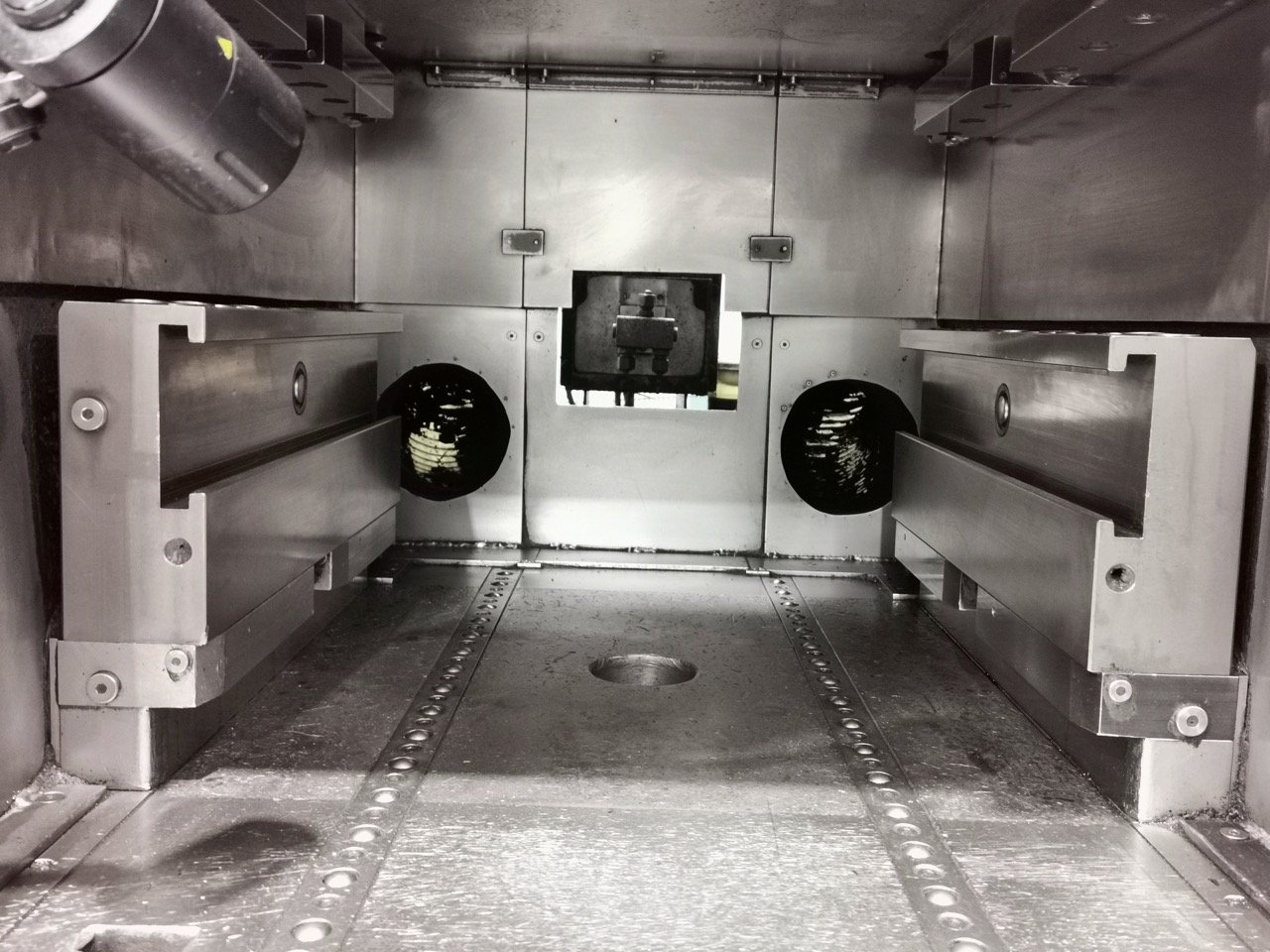

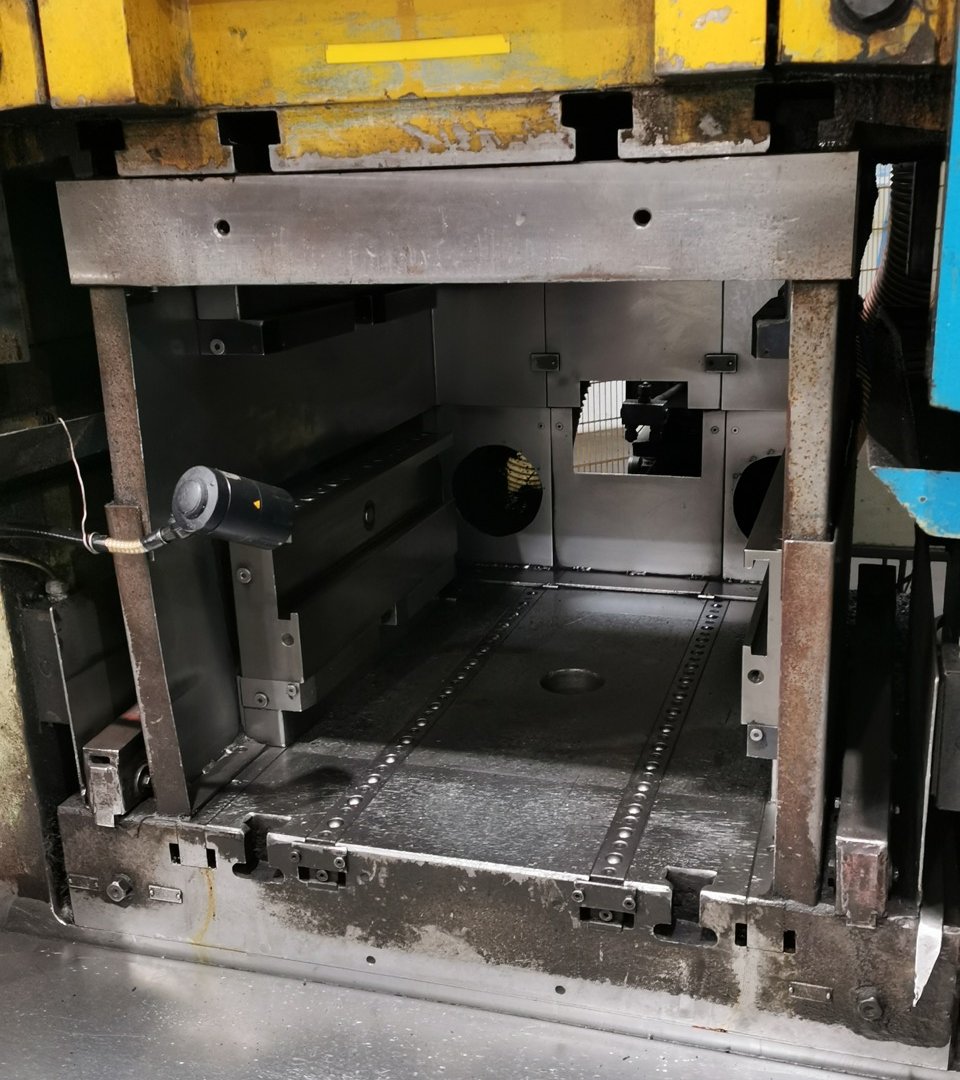

Table size: 1000x1000 mm

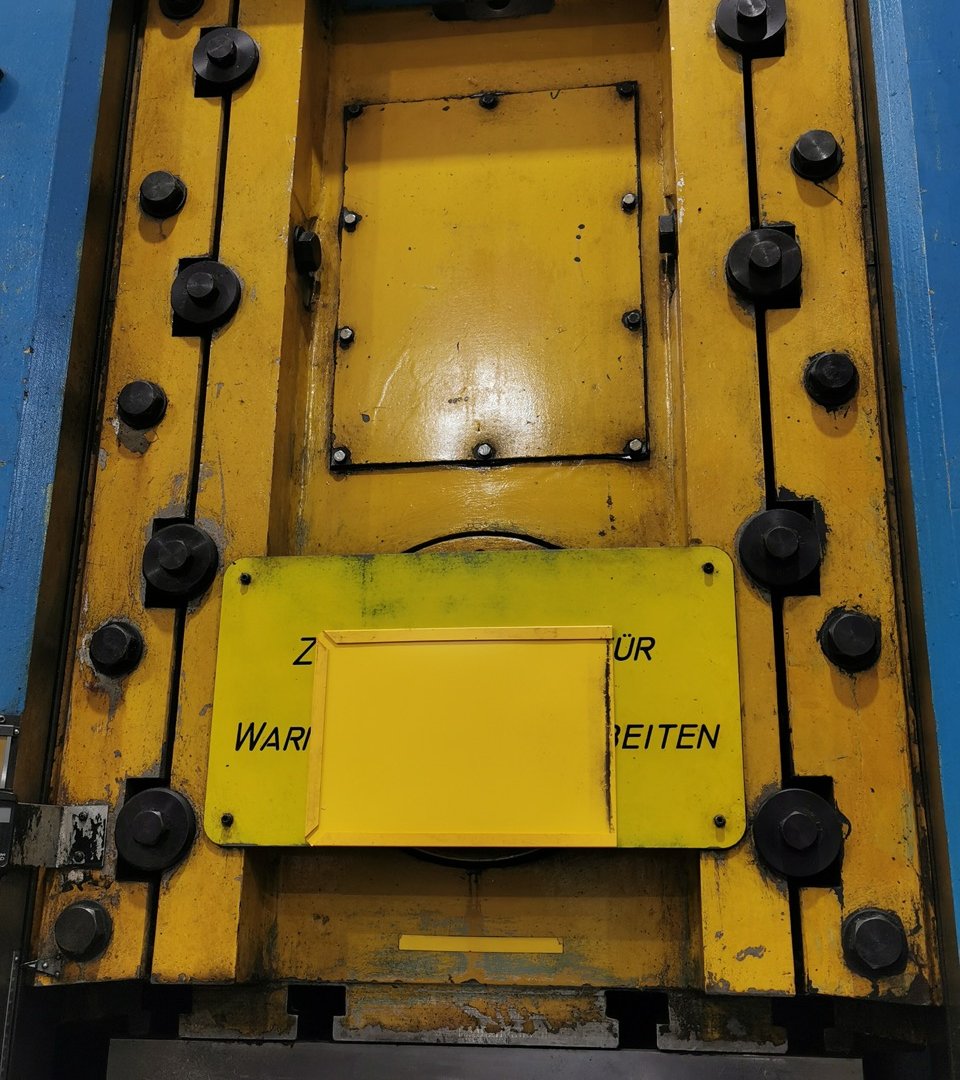

Slide dimensions: 860x900 mm
Bolster plate thickness: 160 mm
Lower knockout:
-Stroke: 110 mm
-Force: 500 kN
Upper knockout:
-Stroke: 16 mm
-Force: 160 kN
Main motor: 55 kW
Overall dimensions: 3480x2600x4110 mm
Weight: 47 tons
