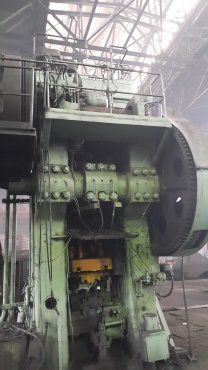

Knuckle joint cold forging press
SMERAL LLK 2000 S

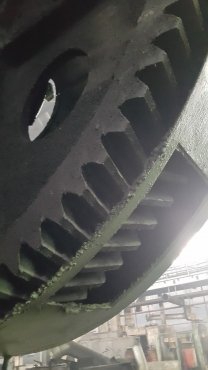

Condition: was made a retrofit of mechanical parts
Specifications:
Technical specification:
Nominal pressure Mp 2000
Effective stroke mm 2
Totil kinetic energy of flywheel kpm 44500
Number of strokes of slide per mm 33
Number of utilizable strokes of slide per min 20
Width between uprights B mm 1100
Shut height H mm 700
Stroke Z of slide mm 150
Slide adjustment E mm 15
Clamping surface of slide l x b mm 850 x 850
Clamping area of bed l1 x b1 mm 1100 x 1100
Stroke of top ejector mm 30
Stroke of bottom ejector mm 150
Output of electromotor:
- main kW 70
- slide adjustment kW 4.5
- lubrication of slide kW 0.37
- lubrication of machine kW 0.8
Consumption of intake air for 1 engagement of clutch dm3 55
Dimensions of press:
- S x L mm 4050 x 3500
- V/V1 mm 6700/1280
Weight of press kg 120 000
