SMERAL, LLR 1000, KNUCKLE JOINT, PRESSES
  • Condition:Used
  • Category:PRESSES
  • Type:KNUCKLE JOINT
  • Manufacturer:SMERAL
  • Model:LLR 1000
  • YOM:1982
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS27840
Description:

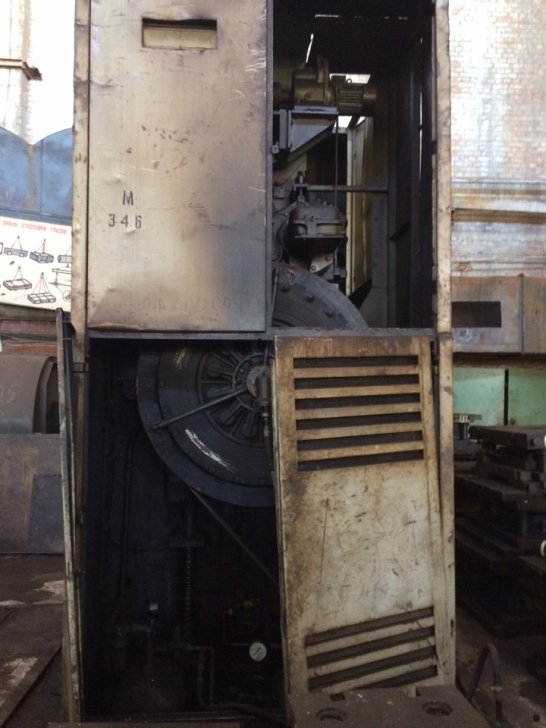

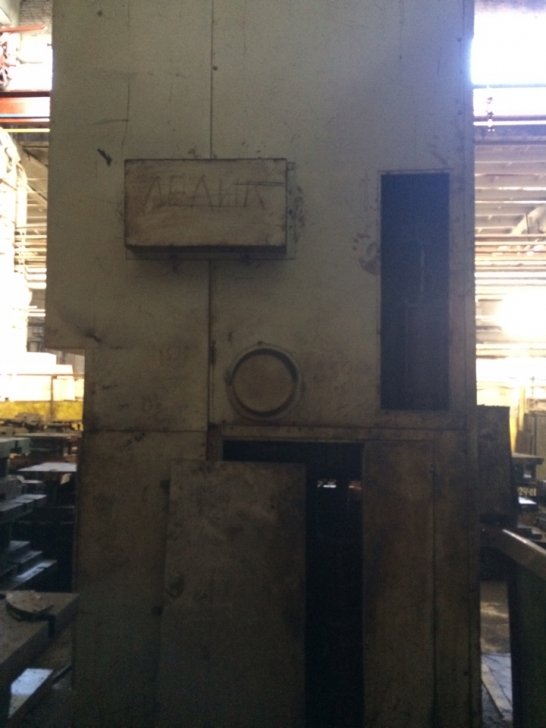

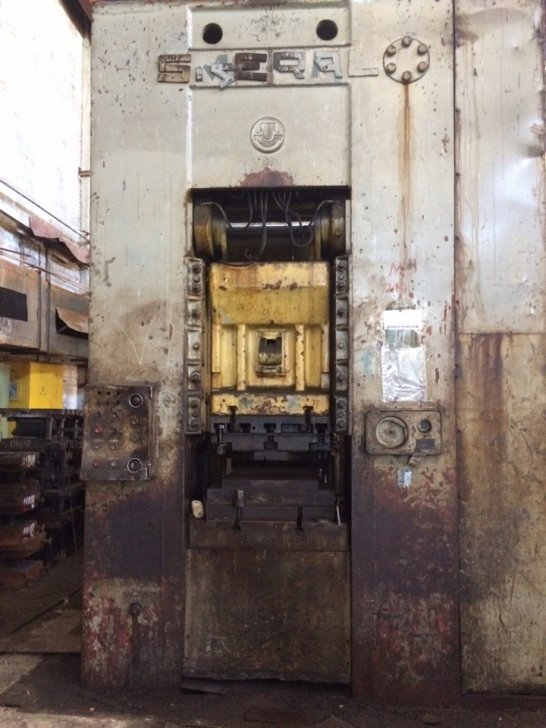

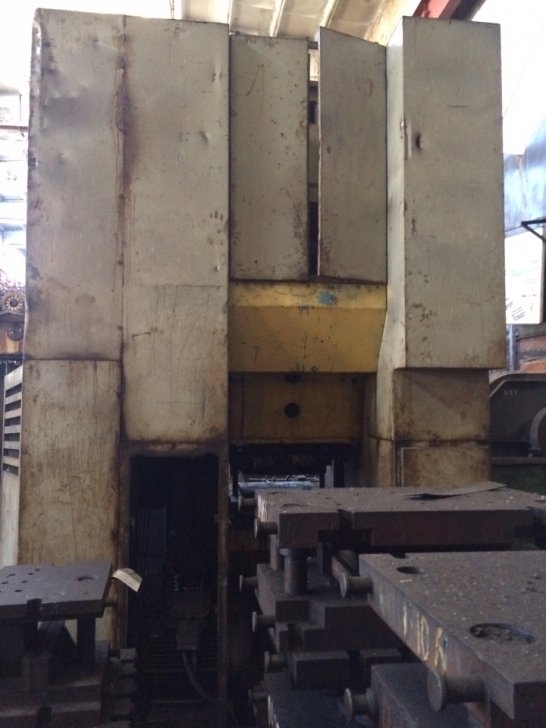

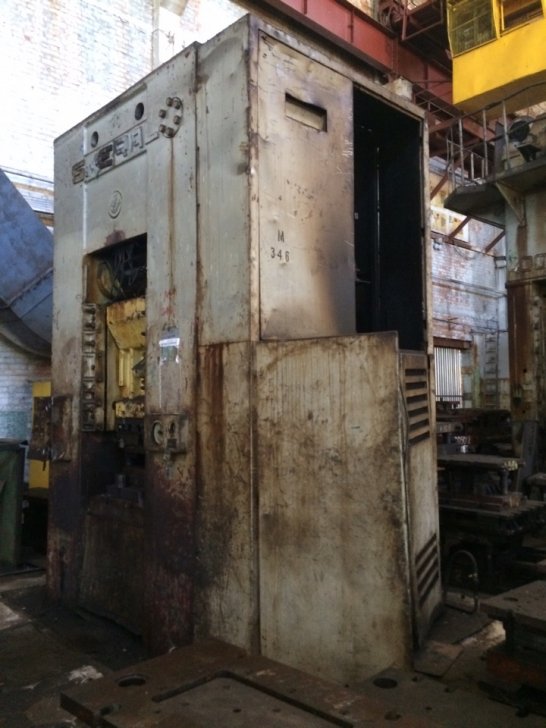

Knuckle joint press SMERAL LLR 1000 made in 1982 in Czech Republic.
Specifications:
Rated forming force: 1000 tons
Effective stroke at nominal force: 3 mm
Ram stroke: 140 mm
Ram adjustment: 15 mm
Shut height: 630 mm
Width between uprights under guide ways: 900 mm
Table working area: 900x1000 mm

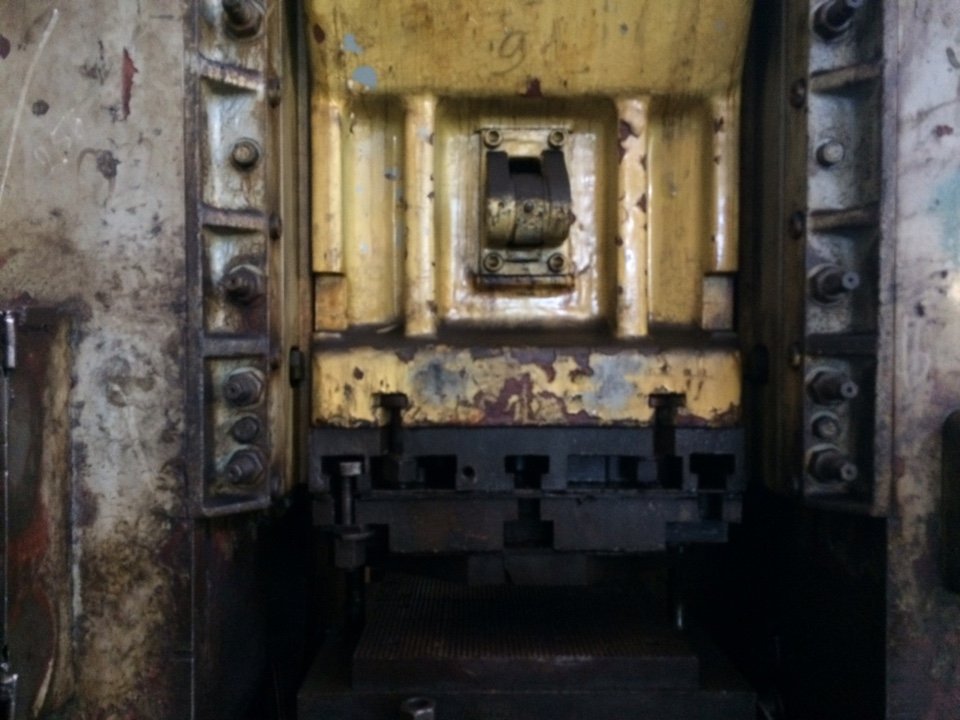

Ram working area: 710x650 mm
Number of ram strokes during continuos run: 36/1 min
Number of useful strokes: 20/1 min
Upper ejector-ejecting force: 100 kN
Upper ejector-stroke: 30 mm
Lower ejector-ejecting force: 200 kN
Lower ejector-stroke: 60 mm
Electric motor output: 37 kW
Dimensions:
2840x2380x4114x3815 mm
Weight:
37 tons
Dealer name:
EMTC Machinery Lithuania, Vilnius
