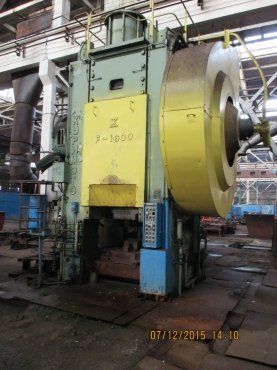

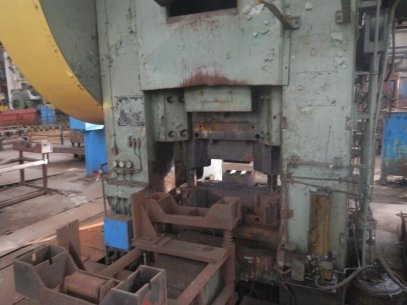

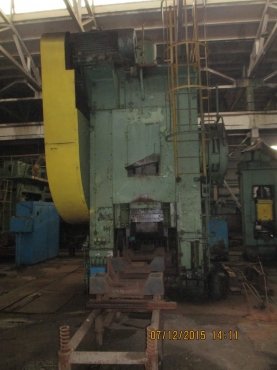

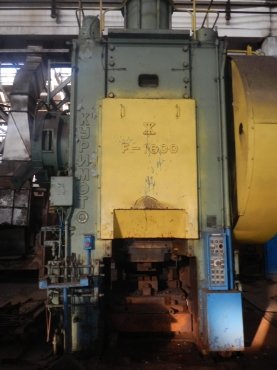

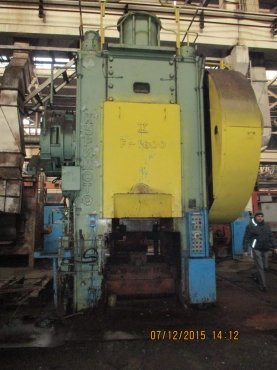

HOT FORGING PRESS KURIMOTO F-1600
Condition: full complete, good condition
Specifications:
Technical specification:
Force (at 7 mm before the lower dead point): 1600 tons
Stroke length: 280 mm
Number of strokes per minute: 80
Number of working strokes per minute: 22
Closed height: 760 mm
Adjustable level of closed height: 16 mm
Table area:
-Left-to-right: 1240 mm
-Front-to-back: 1140 mm
Slide area:
-Left-to-right: 920 mm
-Front-to-back: 920 mm
Bed distance: 1290 mm
Upper ejection:
-Force: 4 tons
-Stroke: 50 mm
Lower ejection:
-Force: 30 tons
-Stroke: 60 mm
Working air pressure: 5 kg/cm²
Main electric motor: 380 V; 50 Hz; 75 kW
Electric motor for adjustment of closed height: 380 V; 50 Hz; 1,5 kW
Electric motor for pump for feeding of lubricating oil: 380 V; 50 Hz; 0,2 kW
