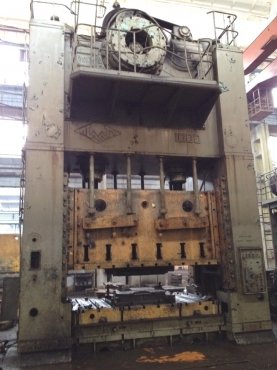

Ton – 1000
Table Size – 3150 x 1800mm,
Ram Stroke – 400mm,
Shut Height – 1060mm,
SPM – 20,
Ram Adjustment – 320mm,
Bolster Plate Thickness – 250mm,
Pneumatic Cushion Capacity – 200 Ton,
Pneumatic Cushion Stroke – 200mm,
Upper Knock-Out Capacity – 50 Ton,
Main Motor Power – 132kW,
Press Dimensions – 5150 x 4700 x 7830mm,
Press Weight – 202000kg,
Press Has Been Plunger Guide

NA

5150 x 4700 x 7830mm

202000kg
