Reconditioned, Upgraded 'Link' solid state controls

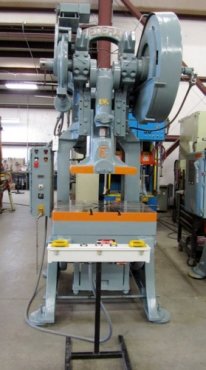

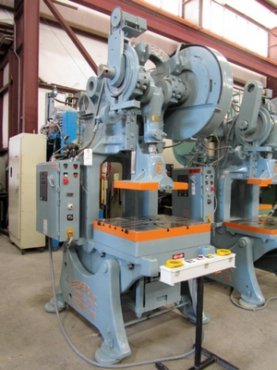

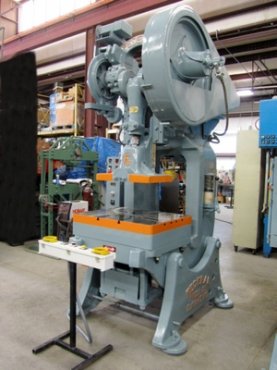

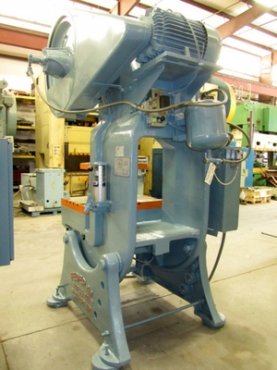

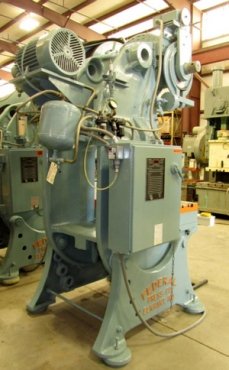

60 TON FEDERAL FLYWHEEL TYPE PRESS - RECONDITIONED
Model: NO. 55
Capacity: 60 TON
Stroke: 10"
Max. Shut Height to Bed: 21" SDAU
Bed Area: 36" RL X28" FB
Speed: 100 SPM
Ram Area: 24" RL X12" FB (FLANGED)
Ram Adjustment: 3-1/2"
Bolster Size: 3-1/2" X36" RL X28" FB
Throat Depth: 15"
Dist Uprights /Floor to Bed: 21-1/2" / 33"
Clutch: AIR CLUTCH AND BRAKE

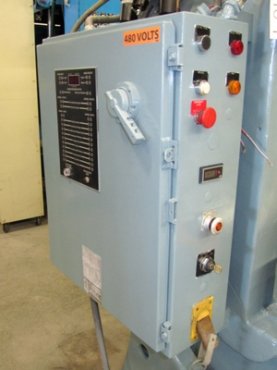

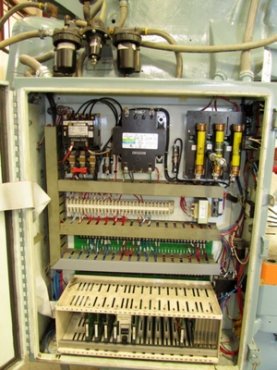

Electrics: *LINK #501 SOLID STATE CONTROLS
Overall Dimensions: 9' HIGH, 6' RL, 6' FB APPROX.
Weight: 10,000 LBS.
Equipped With: CAST STEEL FRAME CONSTRUCTION
FLOOR MOUNTED BASE
FLYWHEEL GUARDS
LUBRICATION SYSTEM
Condition: VERY GOOD/RECONDITIONED
Year: 1966
Location: COLUMBIA, TN (Nashville area)

6' x 6' x 9'

10,000 lbs
