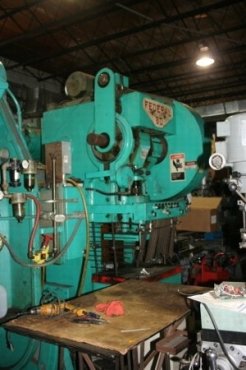

60 ton Federal punch press, 4" stroke, Dual palm buttons
Specifications:
SPECIFICATIONS:
Capacity 60 tons
Stroke 4"
Slide adjustment 2-1/2"
Ram area 16" x 21"
Bed area 21" x 32"
Bolster plate 2-1/2"
Shut height, SDAU, over bed 13"
Depth of throat 11-1/2"
Press speed 90 spm
Main motor (870 rpm) 5 HP
Electrics 230/460/3/60
Dimensions (L x W x H) 72" x 60" x 118"
Weight, approx. 11,500 lbs.
ACCESSORIES:
Air clutch and brake, Dual palm buttons, Foot switch
Controls: single/continuous/off, Jog, Top stop, Parts counter Lubrication system
