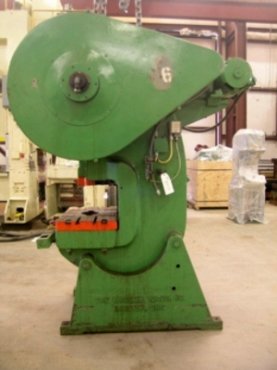

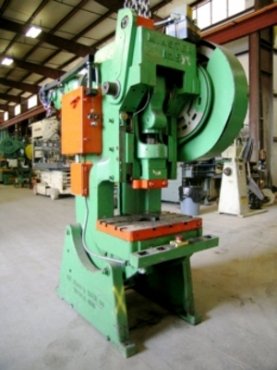

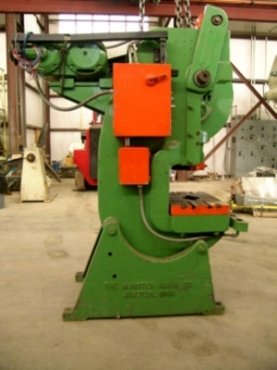

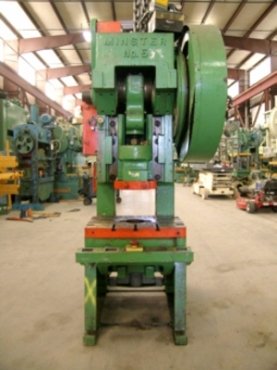

45 TON MINSTER FLYWHEEL TYPE PRESS - PREOWNED
Model: NO. 5
Capacity: 45 TON
Stroke: 3"
Shut Height to Bed: 10-1/2" SDAU
Bed Area: 28" RL X 18" FB
Speed: 60 - 120 SPM (VARIABLE)
Ram Adjustment: 2-3/4"
Ram Area: 12" RL X 10" FB
Clutch: MINSTER AIR CLUTCH & BRAKE
Dist Uprights / Floor to Bed: 13-1/2" / 32"
Electrics: REEVES VARIABLE SPEED DRIVE MOTOR
& CONTROLS
Approx. Dimensions: 8'6" H X 5' RL X 6' FB
Approx. Weight: 8,000 LBS.
Equipped With: CAST IRON FRAME CONSTRUCTION
BIJUR AUTOMATIC OIL LUBRICATION SYSTEM
FLOOR STANDING BASE
FLYWHEEL DESIGN
***Controls not useable in their current condition***
Year: 1959
Condition: FAIR
Location: COLUMBIA, TN (Nashville)

6' X 5' X 8'6"

8000 lbs.
