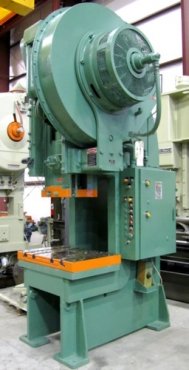

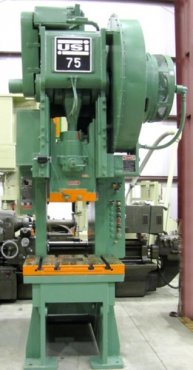

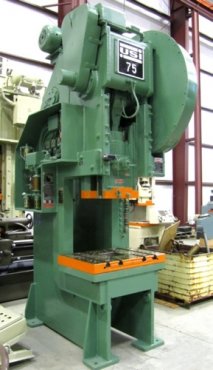

75 TON USI CLEARING BACK GEARED PRESS - RECONDITIONED
MODEL: No. 75
CAPACITY: 75 TON
STROKE: 8"
SHUT HEIGHT TO BED: 26" (SDAU)
BED AREA: 36" RL X 24" FB
SPEED: 45 SPM
RAM ADJUSTMENT: 3"
RAM AREA: 18" RL X 15" FB (BOX STYLE)

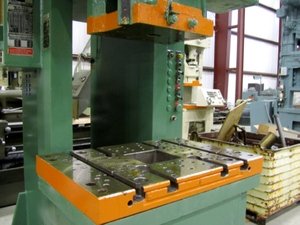

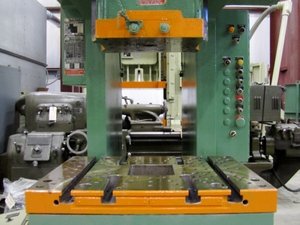

BOLSTER SIZE: 3-1/2" X 36" RL X 24" FB (T-SLOT)
DIST UPRIGHTS / FLOOR TO BED: 20-1/2" / 34"
CLUTCH: AIR CLUTCH & BRAKE
ELECTRICS: 10 HP, 1675 RPM, 230/460/3/60V

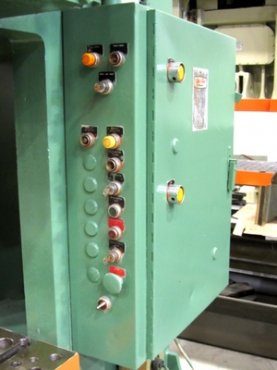

MOTOR & ELECTRICAL CONTROLS
APPROX DIMENSIONS: 11'6" H X 5' RL X 7' FB
APPROX WEIGHT: 16,000 LBS
EQUIPPED WITH: STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCES

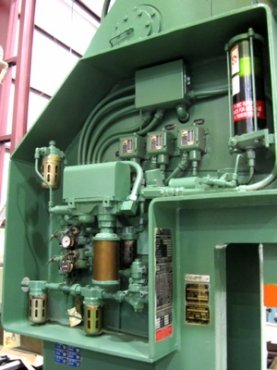

TRABON AUTOMATIC LUBRCATION
FLOOR STANDING BASE
SINGLE BACK GEARED
SINGLE END DRIVE
GEARS IN OIL
AIR TANK
YEAR: 1966
CONDITION: VERY GOOD/RECONDITIONED
LOCATION: OUR COLUMBIA, TN WAREHOUSE
