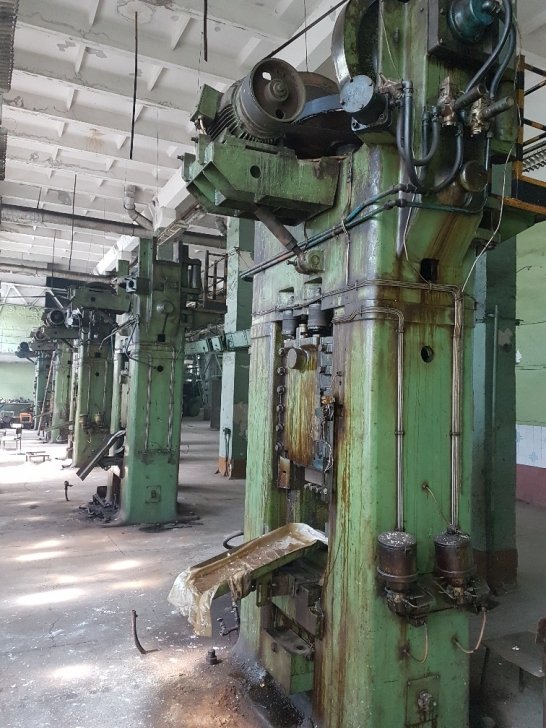

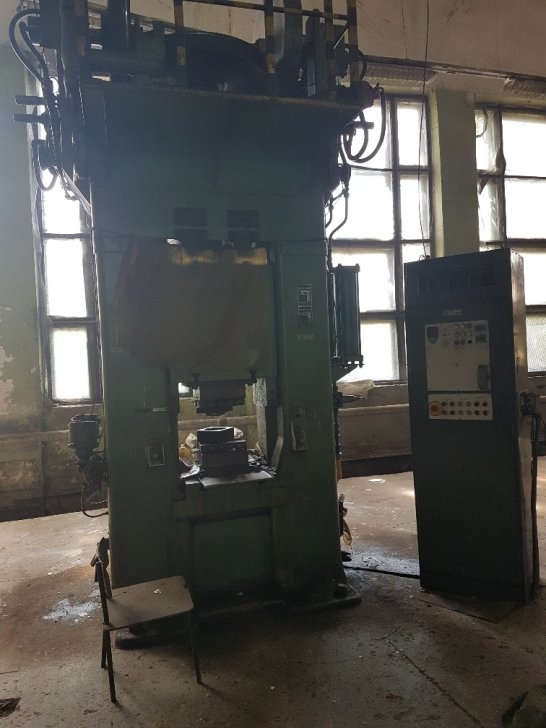

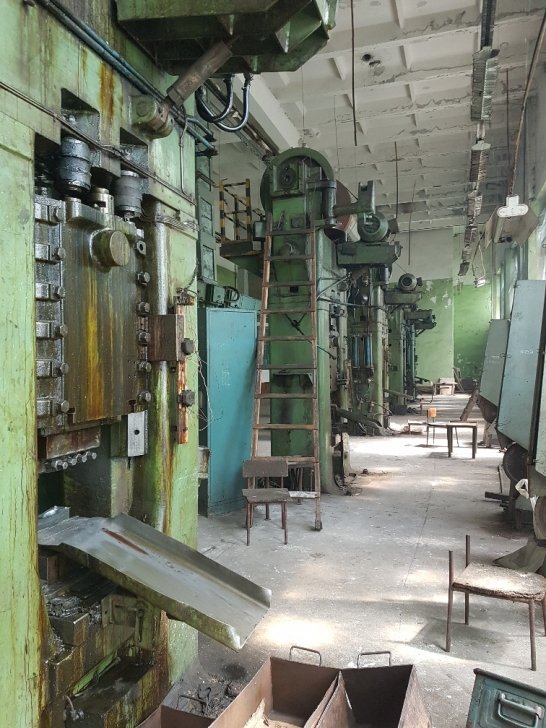

Screw press BERRENBERG RSPP 200/400 made in 1975 in Germany. Quantity: 2 units.
Specifications:
Max. force: 400 tons
Distance between columns: 560 mm
Required overall height at closed die: 400 mm
Intermediate shaft - number of revs: 493 mm

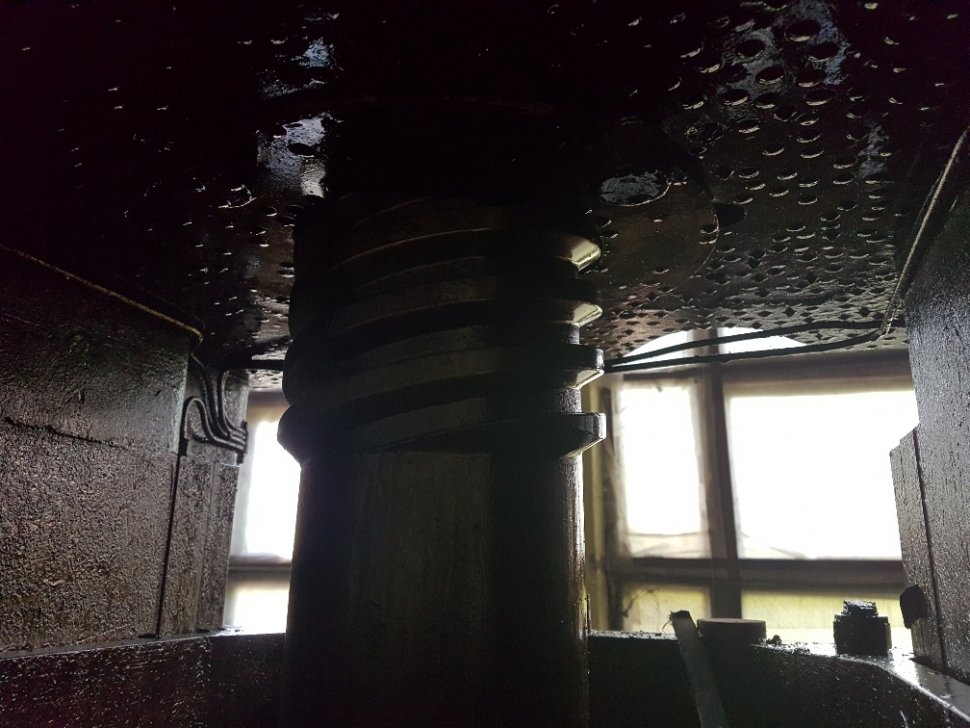

Diameter of screw: 200 mm
Slider stroke: 225 mm
Stroke rate per 1 min: 60
Max. distance between table and ram: 625 mm
Table size:
-Left-to-right: 560 mm
-Front-to-back: 750 mm
Ram size:
-Left-to-right: 560 mm
-Front-to-back: 450 mm
Main motor power: 18 kW
