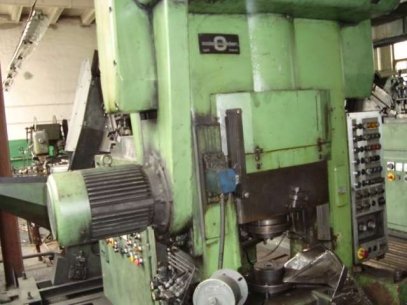

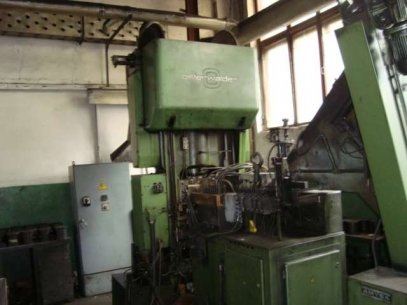

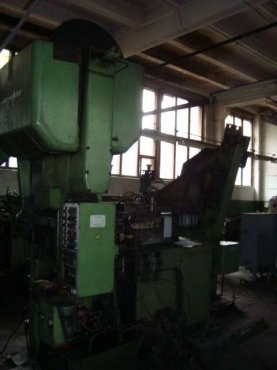

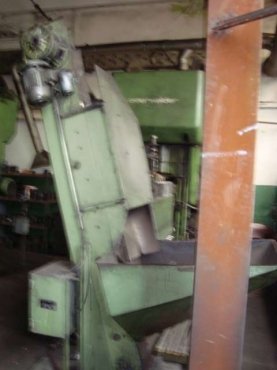

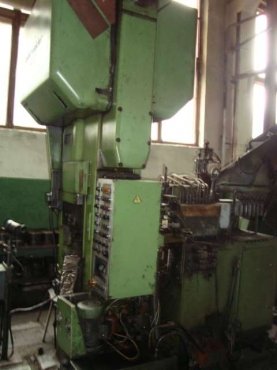

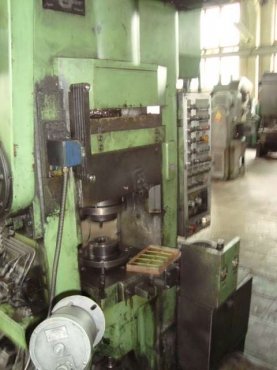

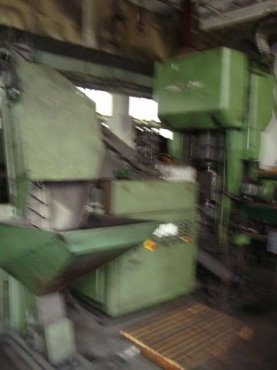

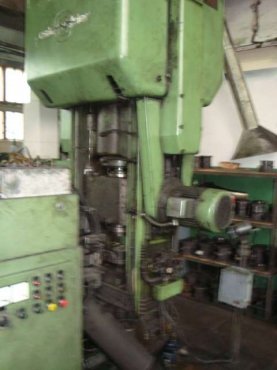

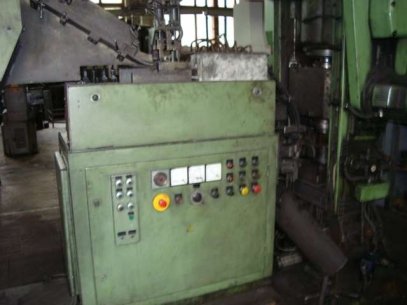

Friction screw presses OSTERWALDER FPN 140 made in Switzerland. Quantity: 2 units.
Specifications:
Screw diameter: 140 mm
Nominal power: 160 ton
Max power: 320 ton
Strokes per minute: 56
Slide stroke: 200 mm
Ram-table distance: 450 mm
Width between guides: 410 mm
Ram-table height:
-Max: 380 mm
-Min: 200 mm
Height of slide stroke: 180 mm
Hole for stamp fastening in the slide: 40 H7 mm
Clamping table:
Dimensions of:
-Upper clamping area: 400x360 mm
-Table area: 400x400 mm
Bolster plate depth: 50 mm
T-slots: DIN 650, 22 H8
Capacity:
Motor power: 7,5 kW
Number of revs of frictional disc: 470 rpm
Number of strokes: 40-50 rpm
Spindle:
Spindle diameter: 140 mm
Step: 96 mm
Flywheel diameter: 750 mm
