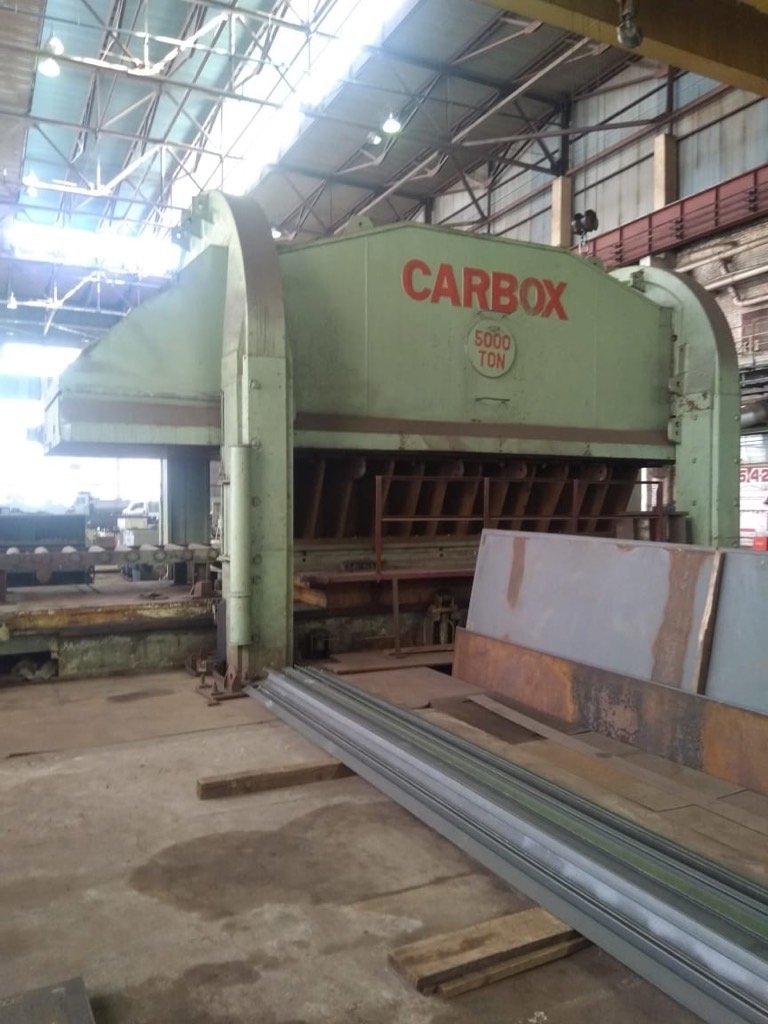

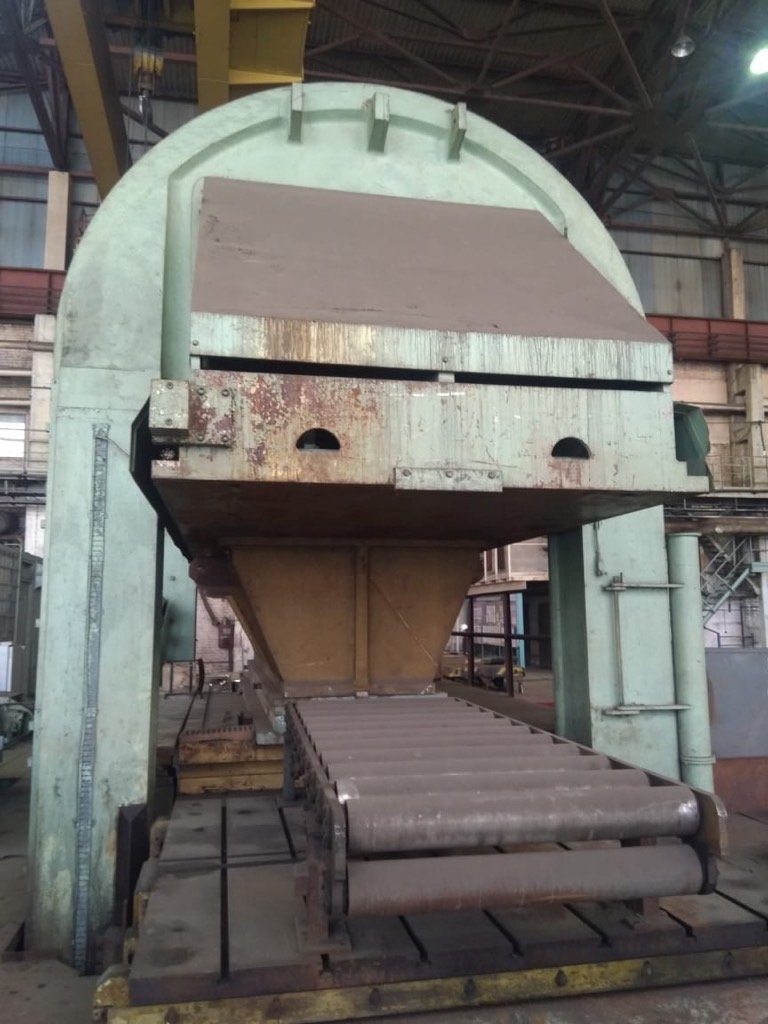

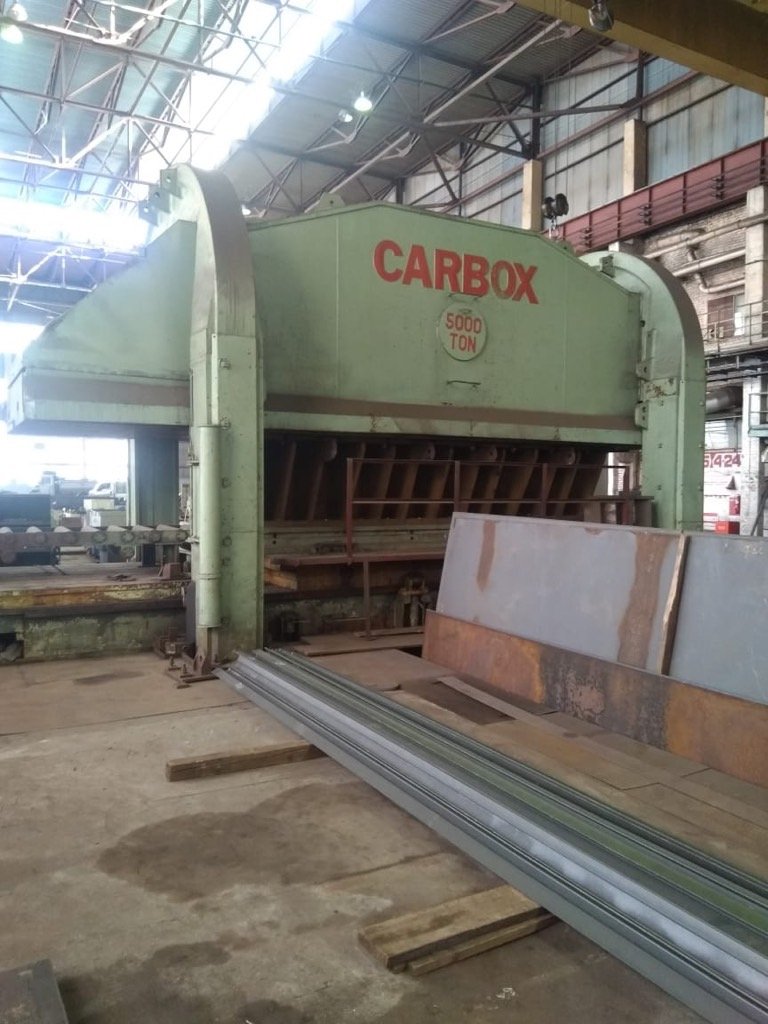

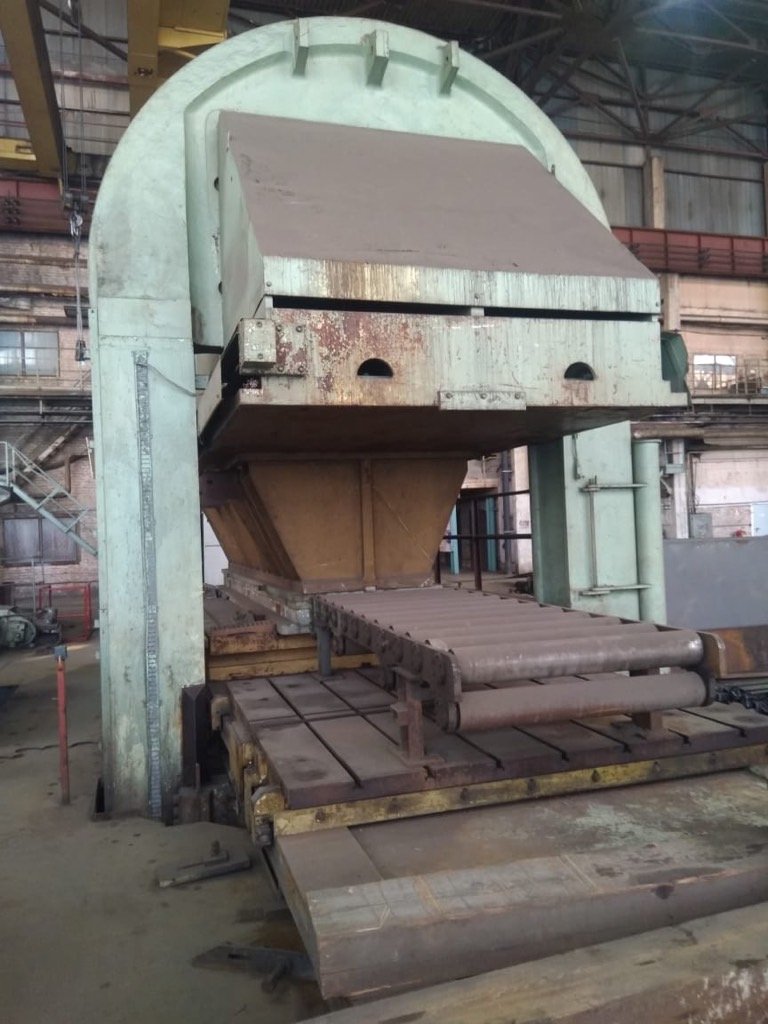

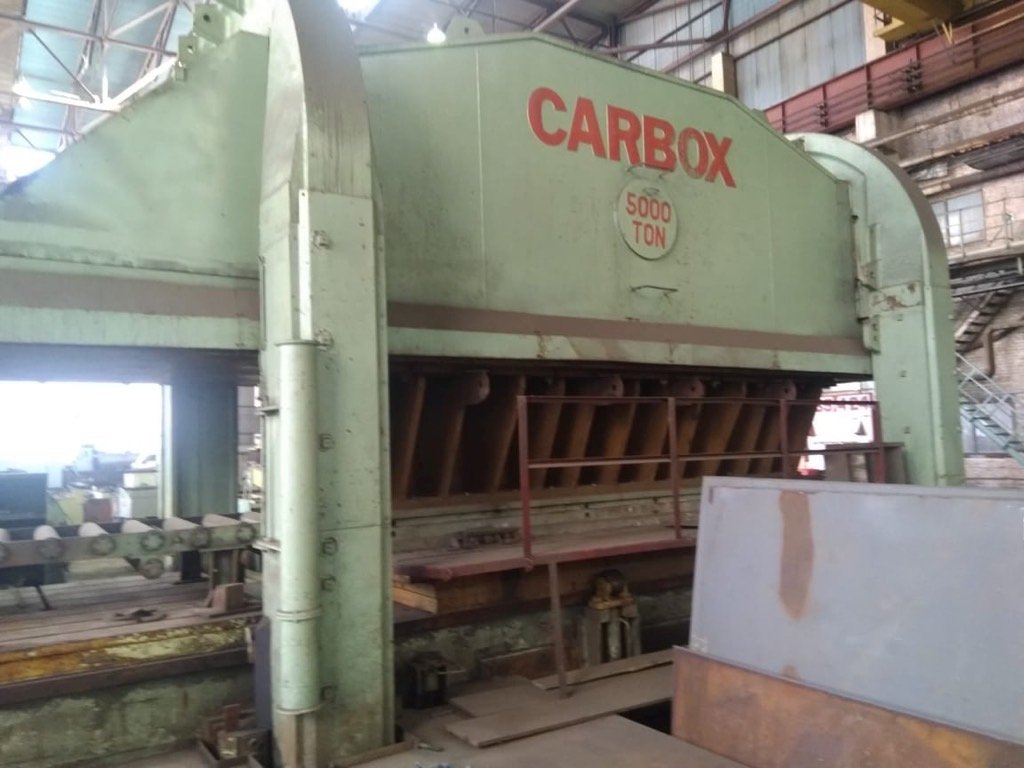

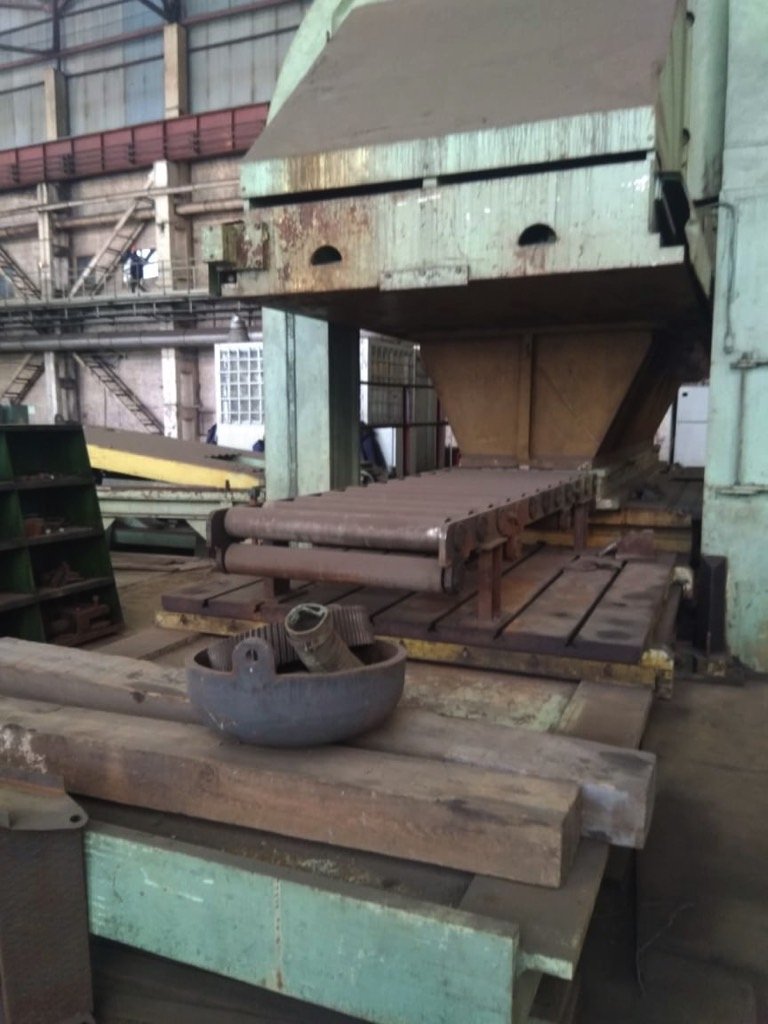

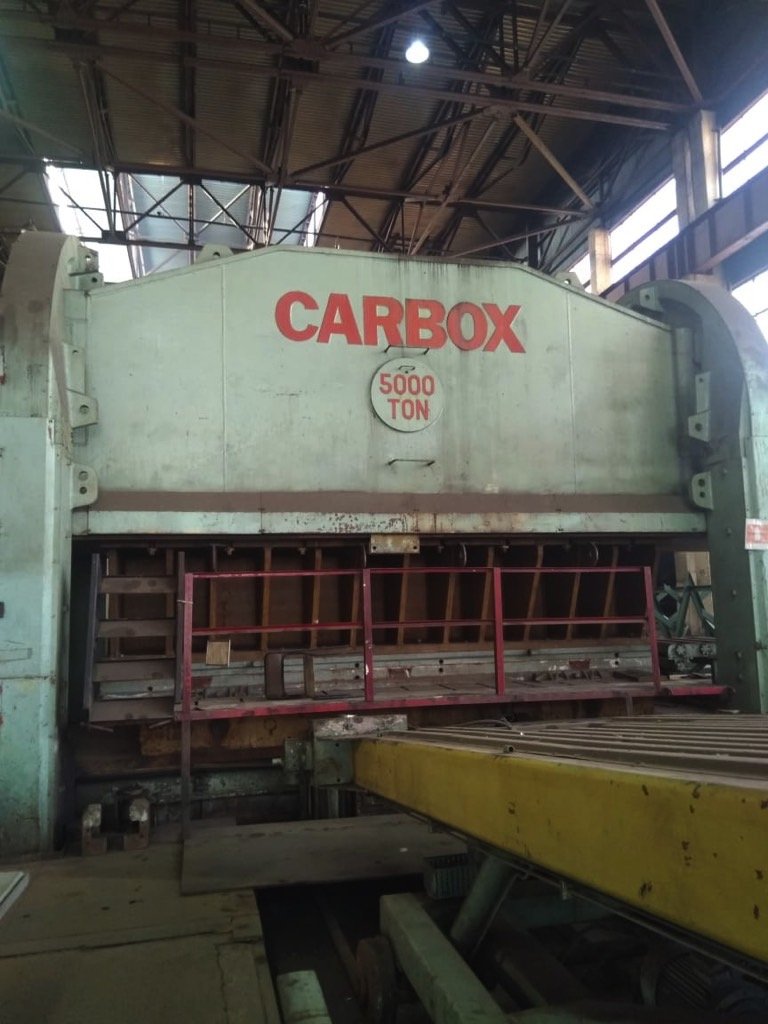

Portal press CARBOX 5000. Manufacturer: AB CARBOX. Made in: Sweden. Pressing force in the middle of the portal: 5000 tones; Pressing force on the outboard consoles: 1700 tones; Piston stroke: 1500 mm; Distance between beams: 3000 mm; Stroke speed at 5000 load: 0-10 mm/s
Specifications:
Pressing force in the middle of the portal: 5000 tons
Pressing force on the outboard consoles: 1700 tons
Piston stroke: 1500 mm
Distance between beams: 3000 mm
Stroke speed at 5000 load: 0-10 mm/s
Stroke speed at full load: 0-5 mm/s
Rapid traverse speed: 100 mm/s
Return speed: 60 mm/s
Distance between side frames (from left to right): 6000 mm
Distance between columns (forward and back): 2800 mm
Die plate speed: approx. 25/200 mm/s
Die plate dimensions: 2500x2500 mm
Max. weight of the die on the plate: 15 tons
Screw thread: trapenoidal 65x8 mm (modified)
Overhang of the console over the side frame: 1500 mm
