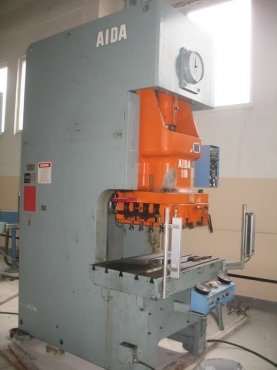

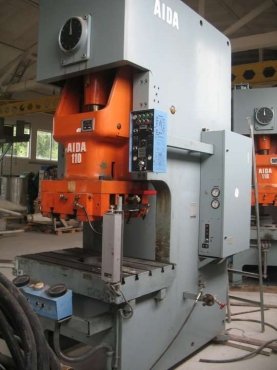

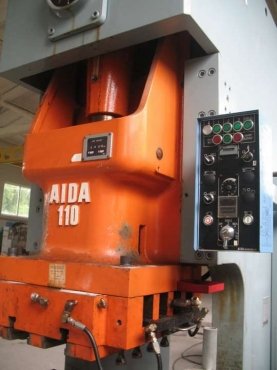

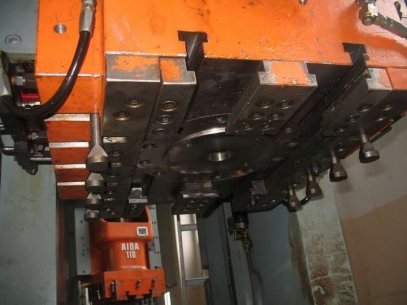

Mechanical stamping press AIDA NC1-110 (2) made in Japan. Type: Single Point Gap Frame.
Specifications:
Capacity: 110 ton
Slide stroke: 180 mm
Strokes per minute: 55
Die height: 400 mm
Slide adjustment: 90 mm
Slide area (l.r. x f.b.): 630 x 520 mm

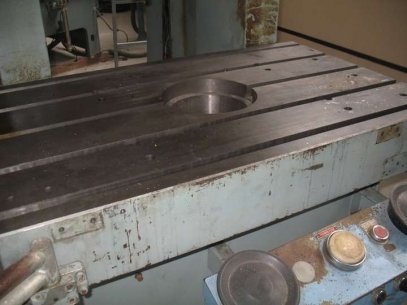

Bolster area (l.r. x f.b.): 1070 x 680 mm
Bolster thickness: 155 mm
Frame gap: 350 mm
Frame inside width: 660 mm
Bolster surface height above floor: 900 mm
Overall height: 2955 mm
Anchor bolt position: 1040 x 1440 mm
Floor space: 1140 x 1650 mm
Main motor: 7,5 kW
Required air pressure: 5 kgf/cm2
