Some information:

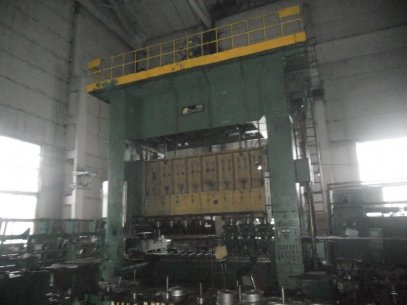

Stamping press-automat AB6140
1000 tn effort
1986 year of manufacturing
made by Barnaul, Russia
Specifications:
Specification:
Nominal force: 400 t
Main slide stroke: 450 mm
Number of strokes per minute, continuously adjustable:
- min. not more that 12
- max. not less than 25
Max. distance between table and die holder at downward position of main slide: 1000
Adjustment of the distance between table and die holder: 100 mm
Number of working positions, including the cutting: 9
Distance between axes and die holder: 500
Weight of the press: 250 t
