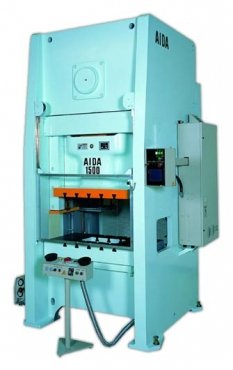

The elimination of angular deflection and the addition of many features raises the NS1 from a general purpose straightside press to a machine that provides a high level of dynamic accuracy and functionality resulting in improved productivity.
Elimination of Angular Deflection
The solid straightside press frame with the same frame cross sectional ratio at front to back eliminates angular deformation of the press frame and maintains dynamic parallelism with even frame elongation.
Full Length Slide Guides at the Center of the Press
Front to back anti-off-center loading capacity and dynamic accuracy have been imporved and contributes to longer die life by guiding the slide at the front to back center of the press and by fully guiding the whole range of slide motion
NS1 Straightside Press in Both Crank Motion and Link Motion Models
The optimum link motion of the NS1-NL straightside press, based on AIDA's long experience and continuing technology improvement is suitable for drawing, bending, and compression works, and it widens the application range of press working.
