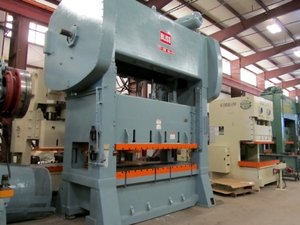

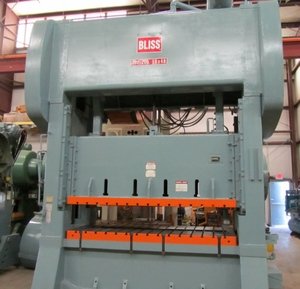

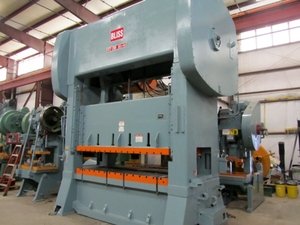

200 TON BLISS STRAIGHT-SIDE DBL. CRANK PRESS - RECONDITIONED
Model No.: SC2-200-96-48
Capacity: 200 TON @ 1/2" ABOVE BOTTOM
Stroke: 8"
Max. Shut Height to Bed: 30" SDAU
Bed ARea: 96" RL X 48" FB
Speed: RATED 35 - 70 SPM VARIABLE SPEED
Ram Area(W/8 PT. Gibs): 96" RL X 48" FB (T-SLOTTED)
Ram Adjustment: 10" MOTORIZED ADJUSTMENT

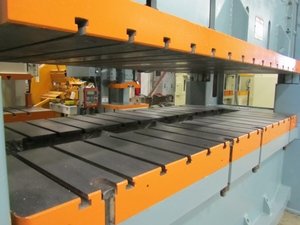

Bolster Size: 4.75" X 96" RL X 48" FB (T-SLOTTED)
Floor to Bed: 34"
Window Size: 30-1/2" WIDE POSSIBLE X 20" HIGH
Clutch: BLISS AIR CLUTCH AND BRAKE
Electrics: 30 HP MOTOR WITH BLISS CONTROLS
Approx. Dimensions: 16'6"(15'W/0 MOTOR)HIGH,13'8"RL,8'6"
Approx. Weight: *77,000 LBS.
Equipped With: FLOOR STANDING BASE
TIE ROD STEEL FRAME CONSTRUCTION
SINGLE BACK GEARED, TWIN GEAR DRIVE
AIR COUNTERBALANCED RAM
RECIRCULATING LUBRICATION SYSTEM
Year: 1974
Condition: VERY GOOD/RECONDITIONED
Location: COLUMBIA, TN (Nashville area)
