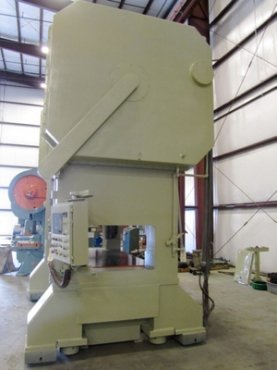

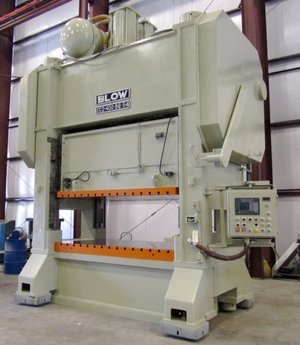

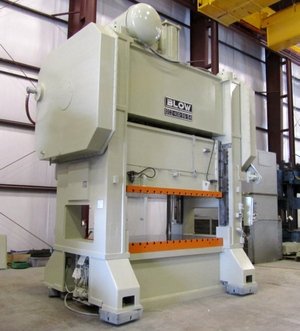

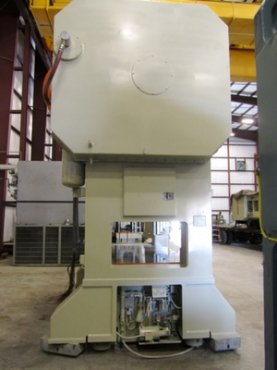

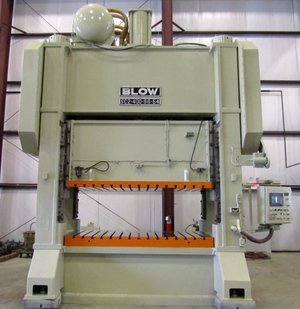

400 TON BLOW STRAIGHT-SIDE DBL. CRANK PRESS - RECONDITIONED
Model: SC2-400-96-54
Capacity: 400 TONS
Stroke: 10"
Shut Height to Bed: 26-1/2" SDAU
Bed Area: 96" RL X 54" FB
Ram Adjustment: 10" (MOTORIZED)
Speed: 20 - 40 SPM (VARIABLE)

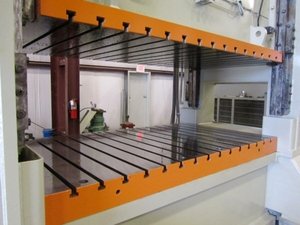

Ram Area: 94-1/2" RL X 54" FB (T-SLOTTED)
Bolster Size: 6-1/2" X 96" RL X 54" FB (T-SLOT)
Window Size: 38-1/2" FB X 24" H
Dist Uprights / Floor to Bed: 98-1/2" / 41"
Electrics: 65.3 HP MAIN DC MOTOR W/ POWERTEC
CONTROLLER. OMNI-LINK PRESS CTRL
Approx. Dimensions: 16' H X 13'6" RL X 8'FB
Approx. Weight: 140,000 LBS.
Equipped With: QUICK DIE CHANGE
STEEL FRAME CONSTRUCTION
HYDRAULIC TIE ROD NUTS
AUTOMATIC OIL LUBRICATION
FLOOR MOUNTED BASE ON 8" FOOT PADS
SINGLE BACK GEARED
TWIN DRIVE W/GEARS IN OIL

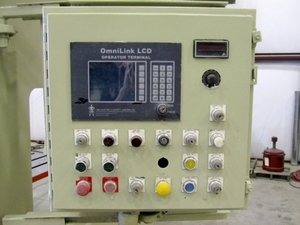

OMNI LINK 5000 CONTROL
AIR COUNTERBALANCED RAM
Year: 1995
Condition: EXCELLENT/RECONDITIONED
Location: COLUMBIA, TN
